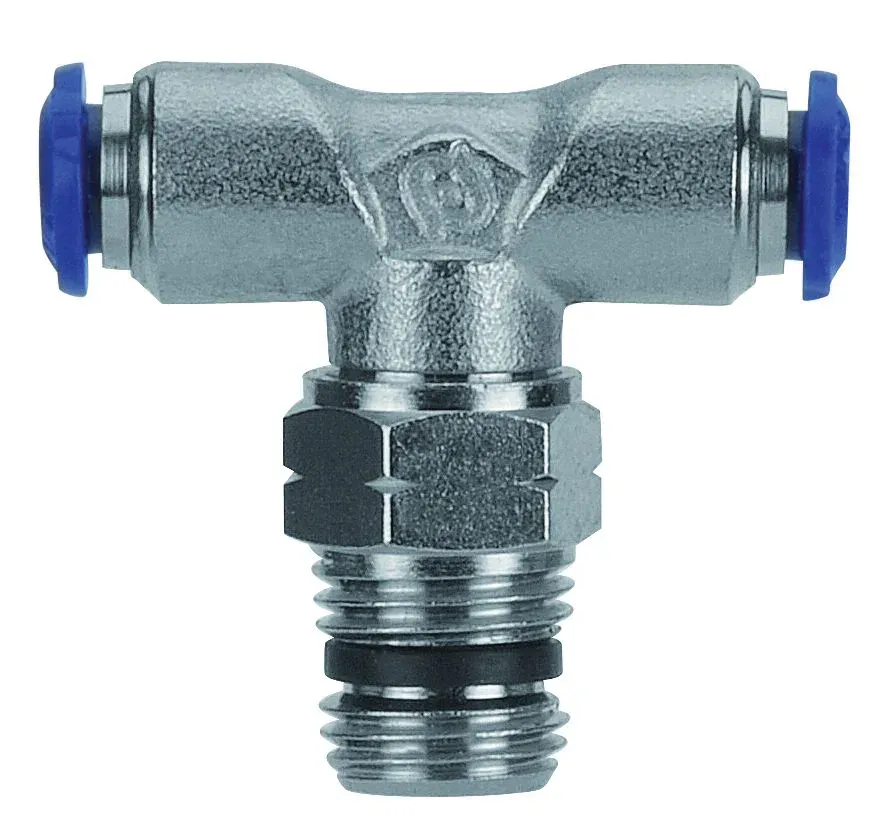

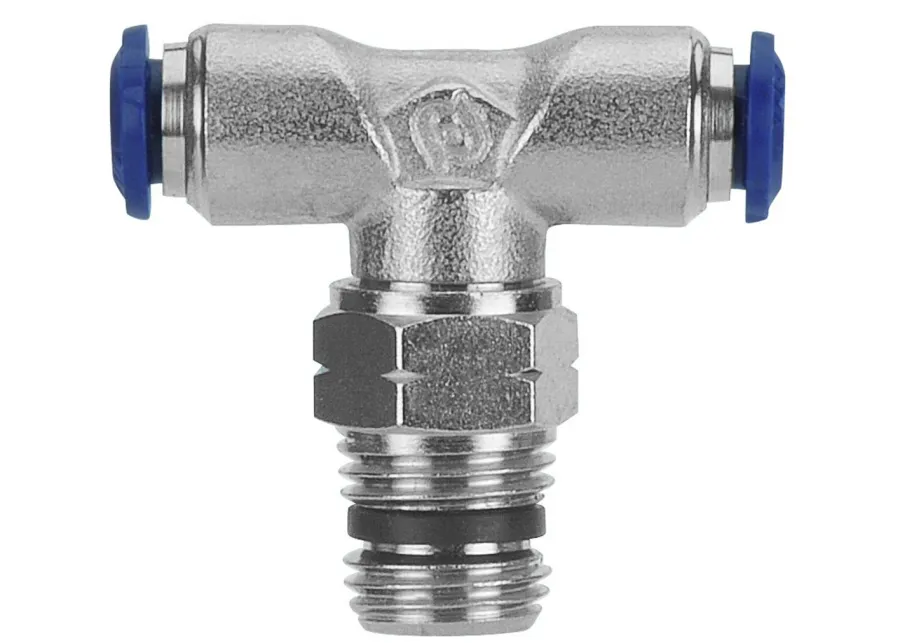

SWIVEL BRANCH TEE - NPTF

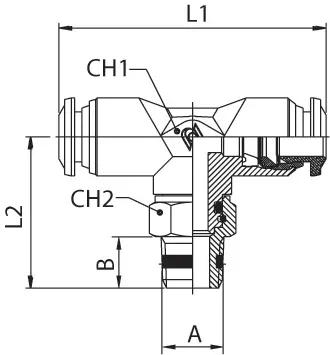

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	Bag
88210 00 001	88210-02-02	Request access	1/8	1/8	0.295 (7.5)	1.299 (33)	0.906 (23)	0.354 (9)	0.512 (13)	10
88210 00 013	88210-02-04	Request access	1/8	1/4	0.512 (13)	1.299 (33)	1.220 (31)	0.354 (9)	0.591 (15)	10
88210 00 002	88210-53-02	Request access	5/32 (4)	1/8	0.295 (7.5)	1.299 (33)	0.906 (23)	0.354 (9)	0.512 (13)	10
88210 00 003	88210-53-04	Request access	5/32 (4)	1/4	0.512 (13)	1.299 (33)	1.220 (31)	0.354 (9)	0.591 (15)	10
88210 00 004	88210-04-02	Request access	1/4	1/8	0.295 (7.5)	1.654 (42)	1.024 (26)	0.433 (11)	0.512 (13)	10
88210 00 005	88210-04-04	Request access	1/4	1/4	0.512 (13)	1.654 (42)	1.220 (31)	0.433 (11)	0.591 (15)	10
88210 00 007	88210-06-04	Request access	3/8	1/4	0.512 (13)	2.087 (53)	1.378 (35)	0.630 (16)	0.591 (15)	10
88210 00 008	88210-06-06	Request access	3/8	3/8	0.512 (13)	2.087 (53)	1.358 (34.5)	0.630 (16)	0.709 (18)	10
88210 00 009	88210-06-08	Request access	3/8	1/2	0.669 (17)	2.087 (53)	1.614 (41)	0.630 (16)	0.866 (22)	10
88210 00 010	88210-08-04	Request access	1/2	1/4	0.512 (13)	2.402 (61)	1.555 (39.5)	0.748 (19)	0.591 (15)	10
88210 00 011	88210-08-06	Request access	1/2	3/8	0.512 (13)	2.402 (61)	1.476 (37.5)	0.748 (19)	0.709 (18)	10
88210 00 012	88210-08-08	Request access	1/2	1/2	0.669 (17)	2.402 (61)	1.732 (44)	0.748 (19)	0.866 (22)	10
