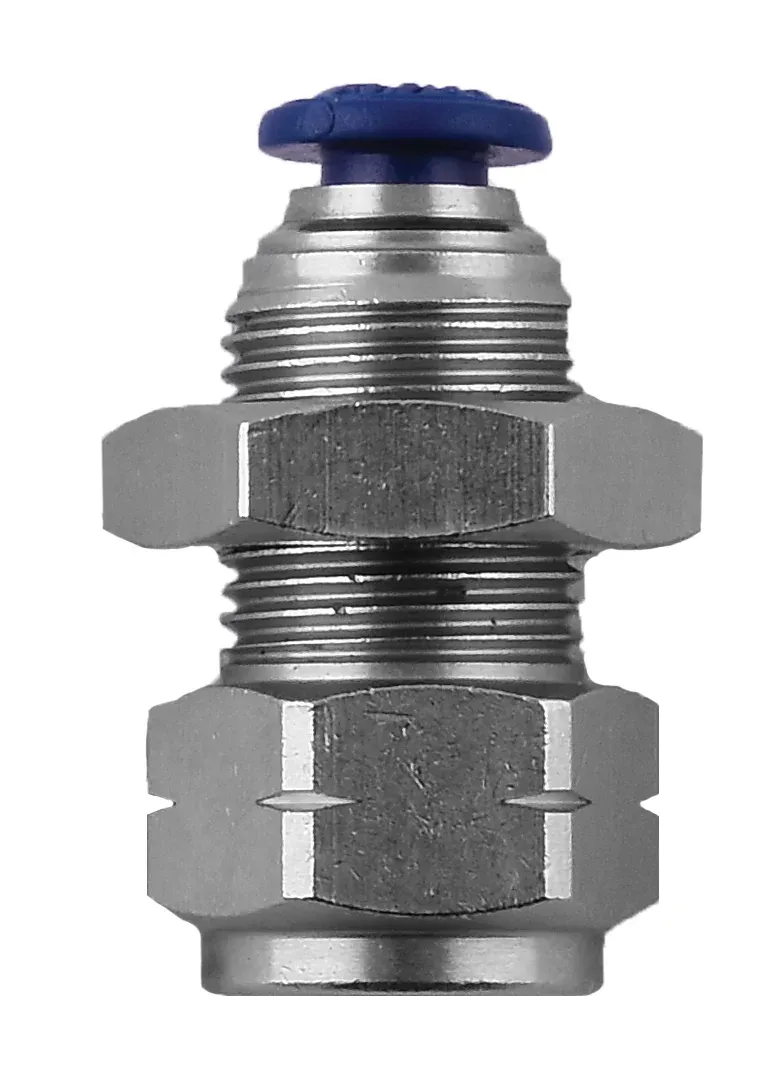

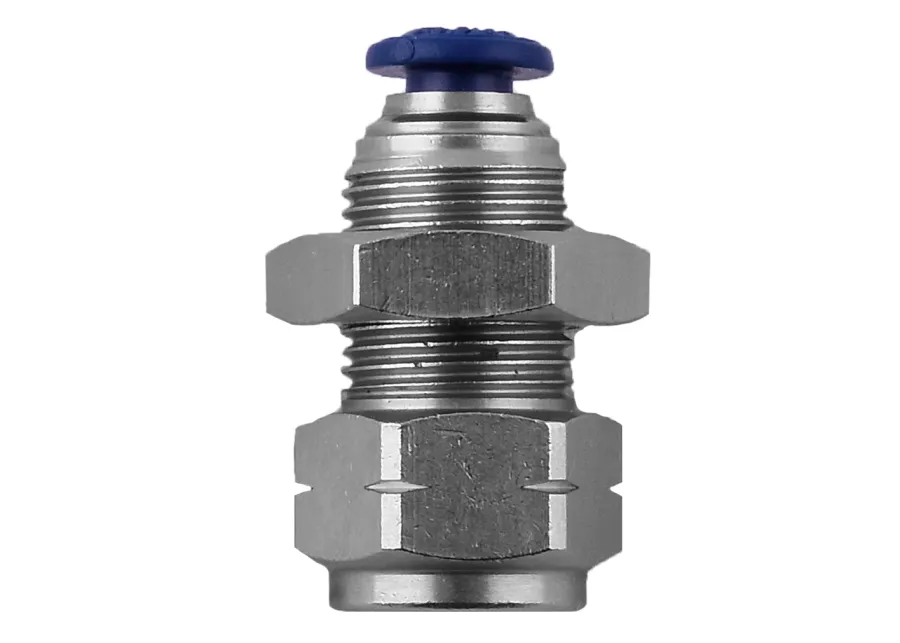

FEMALE BULKHEAD CONNECTOR - NPTF

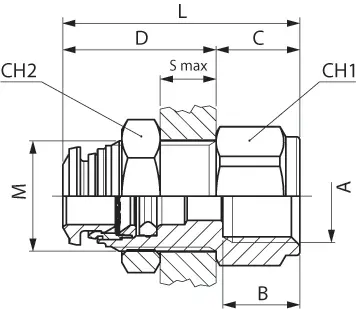

Code	USA Ref	3D Drawings	Tube	A	B	M	S Max	CH1	CH2	C	D	L	Bag
88055 00 001	88055-53-02	Request access	5/32 (4)	1/8	0.374 (9.5)	M12X1	0.276 (7)	0.591 (15)	0.669 (17)	0.394 (10)	0.748 (19)	1.142 (29)	10
88055 00 009	88055-53-04	Request access	5/32 (4)	1/4	0.531 (13.5)	M12X1	0.276 (7)	0.630 (16)	0.669 (17)	0.591 (15)	0.748 (19)	1.339 (34)	10
88055 00 002	88055-04-02	Request access	1/4	1/8	0.374 (9.5)	M14X1	0.315 (8)	0.630 (16)	0.669 (17)	0.394 (10)	0.827 (21)	1.220 (31)	10
88055 00 003	88055-04-04	Request access	1/4	1/4	0.531 (13.5)	M14X1	0.315 (8)	0.630 (16)	0.669 (17)	0.591 (15)	0.827 (21)	1.417 (36)	10
88055 00 010	88055-04-06	Request access	1/4	3/8	0.531 (13.5)	M14X1	0.315 (8)	0.787 (20)	0.669 (17)	0.591 (15)	0.827 (21)	1.417 (36)	10
88055 00 004	88055-05-02	Request access	5/16 (8)	1/8	0.374 (9.5)	M16X1	0.315 (8)	0.709 (18)	0.748 (19)	0.394 (10)	0.866 (22)	1.260 (32)	10
88055 00 005	88055-05-04	Request access	5/16 (8)	1/4	0.531 (13.5)	M16X1	0.315 (8)	0.709 (18)	0.748 (19)	0.472 (12)	0.866 (22)	1.339 (34)	10
88055 00 011	88055-05-06	Request access	5/16 (8)	3/8	0.531 (13.5)	M16X1	0.315 (8)	0.787 (20)	0.748 (19)	0.591 (15)	0.866 (22)	1.457 (37)	10
88055 00 006	88055-06-06	Request access	3/8	3/8	0.531 (13.5)	M20X1	0.374 (9.5)	0.945 (24)	0.945 (24)	0.551 (14)	1.004 (25.5)	1.555 (39.5)	10
88055 00 007	88055-08-06	Request access	1/2	3/8	0.531 (13.5)	M22X1	0.413 (10.5)	0.945 (24)	1.024 (26)	0.591 (15)	1.083 (27.5)	1.673 (42.5)	10
88055 00 008	88055-08-08	Request access	1/2	1/2	0.689 (17.5)	M22X1	0.413 (10.5)	0.945 (24)	1.024 (26)	0.787 (20)	1.083 (27.5)	1.870 (47.5)	10
