60211X

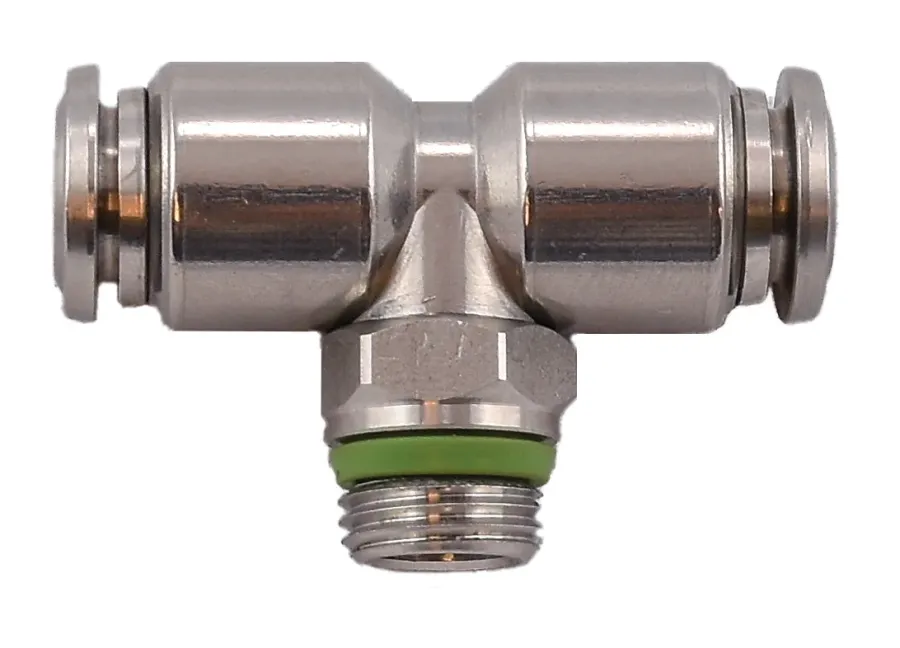

SWIVEL BRANCH TEE - UNF or SWIFTFIT

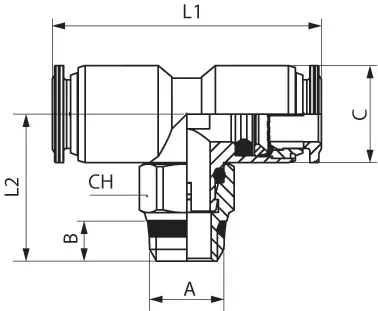

| Code | USA Ref | 3D Drawings | Tube | A | B | C | L1 | L2 | CH | Bag | Thread | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60215 X0 050 | 60211X-53-32 | Request access | 4 (5/32) | 10/32 | 0.157 (4) | 0.394 (10) | 1.201 (30.5) | 0.630 (16) | 0.315 (8) | 10 | Unf | |
| 60211 X0 001 | 60211X-53-02 | Request access | 4 (5/32) | 1/8 | 0.217 (5.5) | 0.394 (10) | 1.201 (30.5) | 0.610 (15.5) | 0.433 (11) | 10 | Swiftfit | |
| 60211 X0 002 | 60211X-53-04 | Request access | 4 (5/32) | 1/4 | 0.276 (7) | 0.394 (10) | 1.201 (30.5) | 0.689 (17.5) | 0.591 (15) | 10 | Swiftfit | |
| 60211 X0 051 | 60211X-04-02 | Request access | 1/4 | 1/8 | 0.217 (5.5) | 0.492 (12.5) | 1.417 (36) | 0.669 (17) | 0.433 (11) | 10 | Swiftfit | |
| 60211 X0 052 | 60211X-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 0.492 (12.5) | 1.417 (36) | 0.748 (19) | 0.591 (15) | 10 | Swiftfit | |
| 60211 X0 003 | 60211X-05-02 | Request access | 8 (5/16) | 1/8 | 0.217 (5.5) | 0.571 (14.5) | 1.575 (40) | 0.846 (21.5) | 0.472 (12) | 10 | Swiftfit | |
| 60211 X0 004 | 60211X-05-04 | Request access | 8 (5/16) | 1/4 | 0.276 (7) | 0.571 (14.5) | 1.575 (40) | 0.846 (21.5) | 0.591 (15) | 10 | Swiftfit | |
| 60211 X0 053 | 60211X-06-04 | Request access | 3/8 | 1/4 | 0.276 (7) | 0.669 (17) | 1.850 (47) | 1.004 (25.5) | 0.591 (15) | 10 | Swiftfit | |
| 60211 X0 054 | 60211X-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 0.669 (17) | 1.850 (47) | 0.925 (23.5) | 0.669 (17) | 10 | Swiftfit | |
| 60211 X0 055 | 60211X-06-08 | Request access | 3/8 | 1/2 | 0.354 (9) | 0.669 (17) | 1.850 (47) | 1.063 (27) | 0.827 (21) | 10 | Swiftfit | |
| 60211 X0 056 | 60211X-08-06 | Request access | 1/2 | 3/8 | 0.295 (7.5) | 0.807 (20.5) | 2.165 (55) | 1.024 (26) | 0.669 (17) | 10 | Swiftfit | |
| 60211 X0 057 | 60211X-08-08 | Request access | 1/2 | 1/2 | 0.354 (9) | 0.807 (20.5) | 2.165 (55) | 1.063 (27) | 0.827 (21) | 10 | Swiftfit | |
| 60211 X0 005 | 60211X-6-1/8 | Request access | 6 | 1/8 | 0.217 (5.5) | 0.492 (12.5) | 1.417 (36) | 0.669 (17) | 0.433 (11) | 10 | Swiftfit | |
| 60211 X0 006 | 60211X-6-1/4 | Request access | 6 | 1/4 | 0.276 (7) | 0.492 (12.5) | 1.417 (36) | 0.748 (19) | 0.591 (15) | 10 | Swiftfit | |
| 60211 X0 007 | 60211X-10-1/4 | Request access | 10 | 1/4 | 0.276 (7) | 0.669 (17) | 1.850 (47) | 1.004 (25.5) | 0.591 (15) | 10 | Swiftfit | |
| 60211 X0 008 | 60211X-10-3/8 | Request access | 10 | 3/8 | 0.295 (7.5) | 0.669 (17) | 1.850 (47) | 0.925 (23.5) | 0.669 (17) | 10 | Swiftfit | |
| 60211 X0 009 | 60211X-10-1/2 | Request access | 10 | 1/2 | 0.354 (9) | 0.669 (17) | 1.850 (47) | 1.063 (27) | 0.827 (21) | 10 | Swiftfit | |
| 60211 X0 010 | 60211X-12-3/8 | Request access | 12 | 3/8 | 0.295 (7.5) | 0.807 (20.5) | 2.165 (55) | 1.024 (26) | 0.669 (17) | 10 | Swiftfit | |
| 60211 X0 011 | 60211X-12-1/2 | Request access | 12 | 1/2 | 0.354 (9) | 0.807 (20.5) | 2.165 (55) | 1.063 (27) | 0.827 (21) | 10 | Swiftfit |
