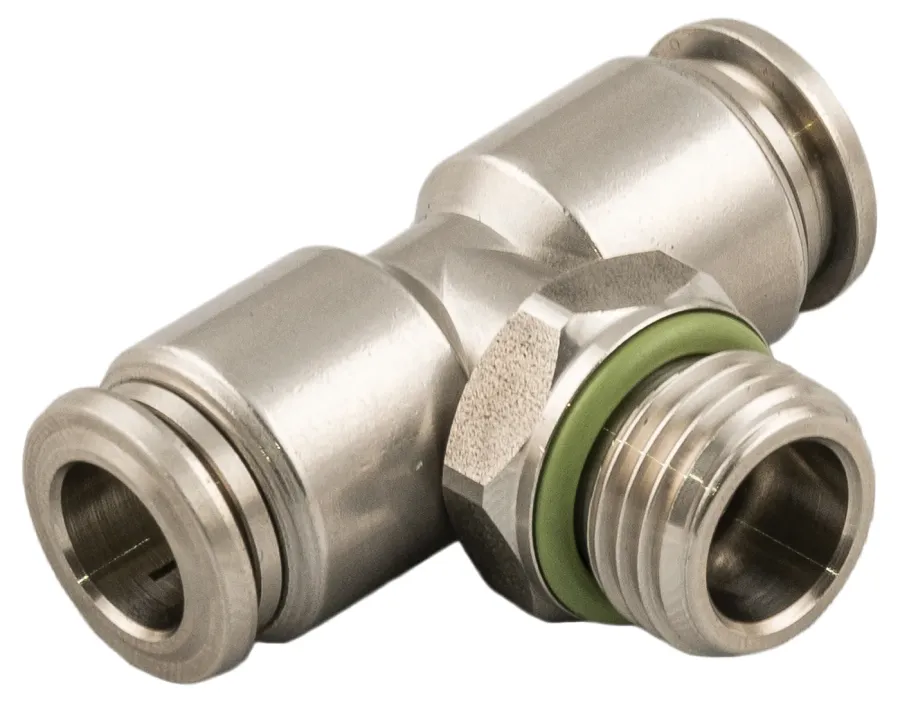

SWIVEL BRANCH TEE - BSPP

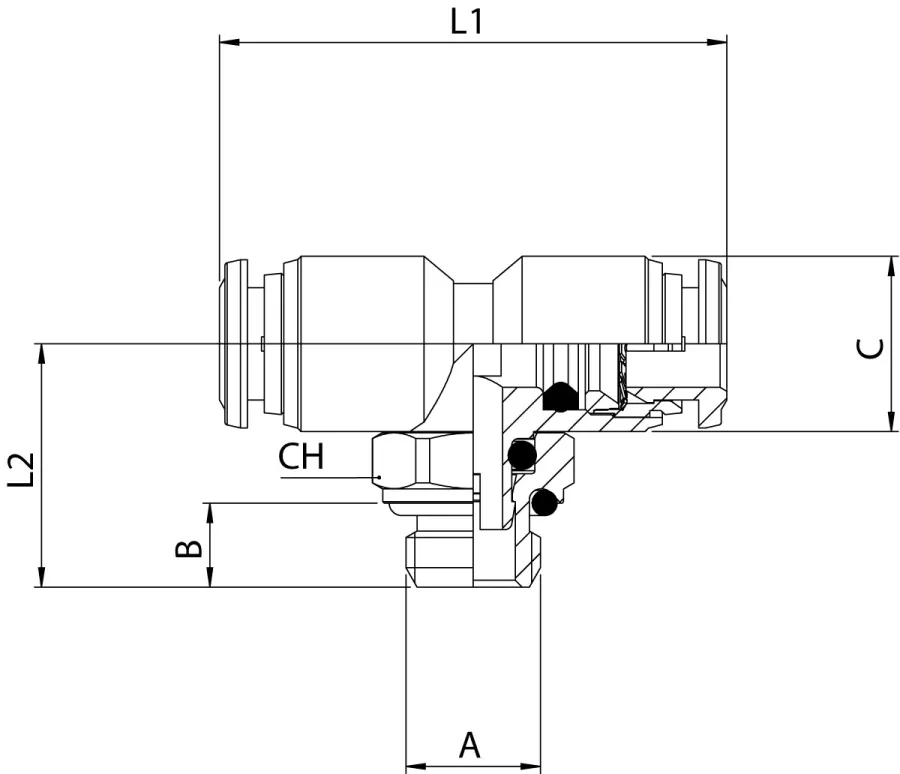

Code	USA Ref	3D Drawings	Tube	A	B	C	L1	L2	CH	Bag
60215 X0 012	60215X-4-M5	Request access	4 (5/32)	M5	0.157 (4)	0.394 (10)	1.201 (30.5)	0.630 (16)	0.315 (8)	5
60215 X0 001	60215X-4-1/8	Request access	4 (5/32)	1/8	0.236 (6)	0.394 (10)	1.201 (30.5)	0.630 (16)	0.512 (13)	5
60215 X0 002	60215X-4-1/4	Request access	4 (5/32)	1/4	0.315 (8)	0.394 (10)	1.201 (30.5)	0.728 (18.5)	0.591 (15)	5
60215 X0 013	60215X-6-M5	Request access	6	M5	0.157 (4)	0.492 (12.5)	1.417 (36)	0.689 (17.5)	0.315 (8)	5
60215 X0 003	60215X-6-1/8	Request access	6	1/8	0.236 (6)	0.492 (12.5)	1.417 (36)	0.689 (17.5)	0.512 (13)	5
60215 X0 004	60215X-6-1/4	Request access	6	1/4	0.315 (8)	0.492 (12.5)	1.417 (36)	0.787 (20)	0.591 (15)	5
60215 X0 005	60215X-8-1/8	Request access	8 (5/16)	1/8	0.236 (6)	0.571 (14.5)	1.575 (40)	0.906 (23)	0.512 (13)	5
60215 X0 006	60215X-8-1/4	Request access	8 (5/16)	1/4	0.315 (8)	0.571 (14.5)	1.575 (40)	0.827 (21)	0.591 (15)	5
60215 X0 007	60215X-10-1/4	Request access	10	1/4	0.315 (8)	0.689 (17.5)	1.850 (47)	1.083 (27.5)	0.591 (15)	2
60215 X0 008	60215X-10-3/8	Request access	10	3/8	0.354 (9)	0.689 (17.5)	1.850 (47)	0.984 (25)	0.787 (20)	2
60215 X0 009	60215X-10-1/2	Request access	10	1/2	0.394 (10)	0.689 (17.5)	1.850 (47)	1.043 (26.5)	0.984 (25)	2
60215 X0 010	60215X-12-3/8	Request access	12	3/8	0.354 (9)	0.807 (20.5)	2.165 (55)	1.201 (30.5)	0.787 (20)	2
60215 X0 011	60215X-12-1/2	Request access	12	1/2	0.394 (10)	0.807 (20.5)	2.165 (55)	1.122 (28.5)	0.984 (25)	2
60215 X0 014	60215X-14-1/2	Request access	14	1/2	0.394 (10)	0.846 (21.5)	2.185 (55.5)	1.299 (33)	0.984 (25)	2
60215 X0 017	60215X-16-1/2	Request access	16	1/2	0.394 (10)	0.945 (24)	2.579 (65.5)	1.437 (36.5)	0.984 (25)	2
