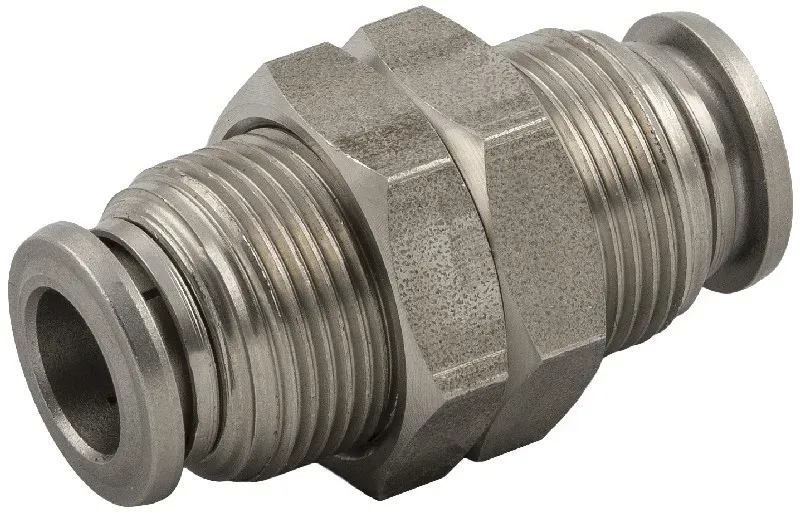

BULKHEAD UNION

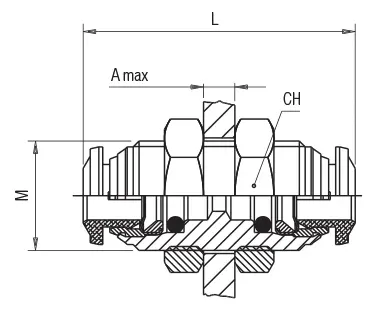

Code	USA Ref	3D Drawings	Tube	M	L	CH	A Max	Bag
60050 00 001	60050-53	Request access	4 (5/32)	M12X1	1.220 (31)	0.669 (17)	0.276 (7)	5
60050 00 051	60050-04	Request access	1/4	M14X1	1.378 (35)	0.669 (17)	0.354 (9)	10
60050 00 003	60050-05	Request access	8 (5/16)	M16X1	1.457 (37)	0.748 (19)	0.413 (10.5)	5
60050 00 052	60050-06	Request access	3/8	M20X1	1.654 (42)	1.024 (26)	0.492 (12.5)	10
60050 00 053	60050-08	Request access	1/2	M22X1	1.890 (48)	1.024 (26)	0.650 (16.5)	10
60050 00 002	60050-6	Request access	6	M14X1	1.378 (35)	0.669 (17)	0.374 (9.5)	5
60050 00 004	60050-10	Request access	10	M20X1	1.654 (42)	1.024 (26)	0.492 (12.5)	2
60050 00 005	60050-12	Request access	12	M22X1	1.890 (48)	1.024 (26)	0.650 (16.5)	2
60050 00 007	60050-16	Request access	16	M27X1,5	2.106 (53.5)	1.260 (32)	0.413 (10.5)	2
