55320

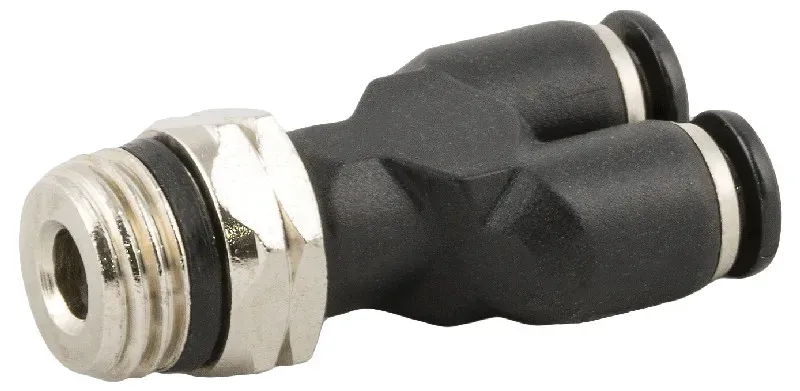

UNION Y - SWIFTFIT
prodotto___rs55000_55320_auto-d
prodotto___rs55000_55320_auto-f

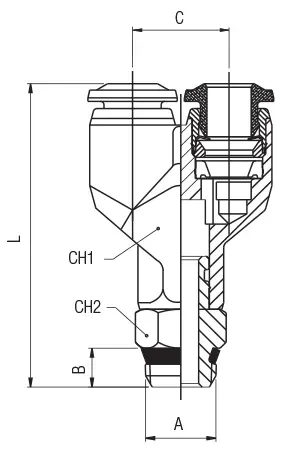

Code USA Ref 3D Drawings Tube A B C L CH1 CH2 Bag
55320 00 002 55320-4-1/8 Request access 5/32 (4) 1/8 0.217 (5.5) 0.433 (11) 1.496 (38) 0.394 (10) 0.433 (11) 10
55320 00 007 55320-4-1/4 Request access 5/32 (4) 1/4 0.276 (7) 0.433 (11) 1.594 (40.5) 0.394 (10) 0.551 (14) 10
55320 00 003 55320-6-1/8 Request access 6 1/8 0.217 (5.5) 0.531 (13.5) 1.693 (43) 0.472 (12) 0.433 (11) 10
55320 00 004 55320-6-1/4 Request access 6 1/4 0.276 (7) 0.531 (13.5) 1.791 (45.5) 0.472 (12) 0.551 (14) 10
55320 00 005 55320-8-1/8 Request access 5/16 (8) 1/8 0.217 (5.5) 0.610 (15.5) 1.831 (46.5) 0.551 (14) 0.433 (11) 10
55320 00 006 55320-8-1/4 Request access 5/16 (8) 1/4 0.276 (7) 0.610 (15.5) 1.929 (49) 0.551 (14) 0.551 (14) 10
55320 00 008 55320-8-3/8 Request access 5/16 (8) 3/8 0.295 (7.5) 0.610 (15.5) 1.949 (49.5) 0.551 (14) 0.669 (17) 10
55320 00 009 55320-10-1/4 Request access 10 1/4 0.276 (7) 0.748 (19) 2.224 (56.5) 0.669 (17) 0.551 (14) 10
55320 00 010 55320-10-3/8 Request access 10 3/8 0.295 (7.5) 0.748 (19) 2.264 (57.5) 0.669 (17) 0.669 (17) 10
55320 00 011 55320-10-1/2 Request access 10 1/2 0.354 (9) 0.748 (19) 2.362 (60) 0.669 (17) 0.827 (21) 10
55320 00 012 55320-12-3/8 Request access 12 3/8 0.295 (7.5) 0.866 (22) 2.618 (66.5) 0.787 (20) 0.669 (17) 10
55320 00 013 55320-12-1/2 Request access 12 1/2 0.354 (9) 0.866 (22) 2.677 (68) 0.787 (20) 0.827 (21) 10
