50020N

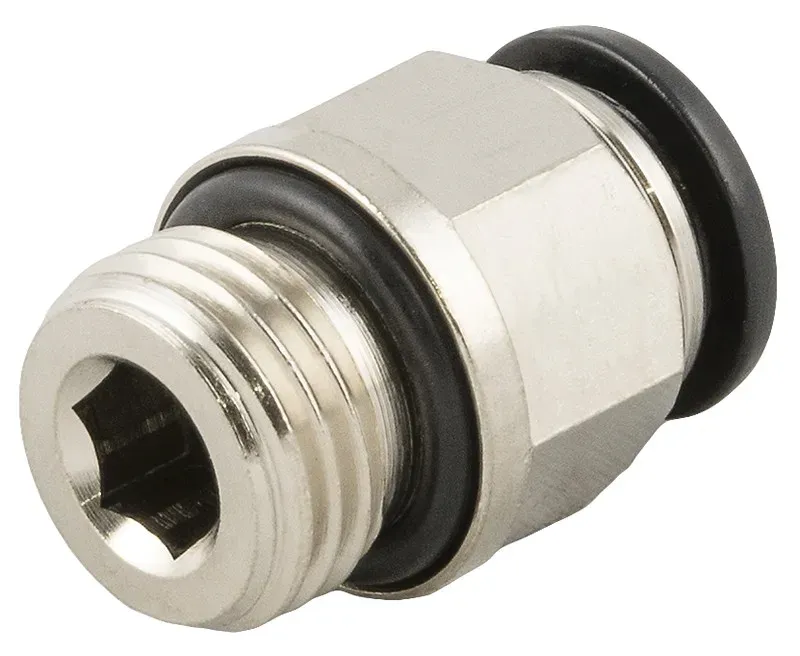

STRAIGHT MALE - BSPP

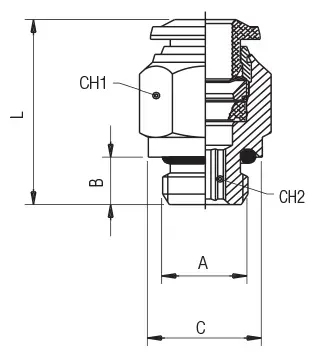

| Code | USA Ref | 3D Drawings | Tube | A | B | C | L | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50020 00 N21 | 50020N-3-M5 | Request access | 3 | M5 | .141 (3.6) | 0.315 (8) | 0.748 (19) | 0.315 (8) | 0.079 (2) | 10 | |
| 50020 00 N34 | 50020N-4-M3 | Request access | 5/32 (4) | M3 | .118 (3) | 0.394 (10) | 0.827 (21) | - | 0.315 (8) | 10 | |
| 50020 00 N01 | 50020N-4-M5 | Request access | 5/32 (4) | M5 | .141 (3.6) | 0.315 (8) | 0.827 (21) | 0.394 (10) | 0.079 (2) | 10 | |
| 50020 00 N02 | 50020N-4-1/8 | Request access | 5/32 (4) | 1/8 | .212 (5.4) | 0.512 (13) | 0.787 (20) | 0.394 (10) | 0.118 (3) | 10 | |
| 50020 00 N22 | 50020N-4-1/4 | Request access | 5/32 (4) | 1/4 | .279 (7.1) | 0.630 (16) | 0.768 (19.5) | 0.630 (16) | 0.118 (3) | 10 | |
| 50020 00 N41 | 50020N-4-3/8 | Request access | 5/32 (4) | 3/8 | .318 (8.1) | 0.787 (20) | 0.709 (18) | 0.787 (20) | 0.118 (3) | 10 | |
| 50020 00 N18 | 50020N-5-M5 | Request access | 5 | M5 | .141 (3.6) | 0.315 (8) | 0.925 (23.5) | 0.472 (12) | 0.079 (2) | 10 | |
| 50020 00 N19 | 50020N-5-1/8 | Request access | 5 | 1/8 | .212 (5.4) | 0.512 (13) | 0.866 (22) | 0.472 (12) | 0.157 (4) | 10 | |
| 50020 00 N36 | 50020N-5-1/4 | Request access | 5 | 1/4 | .279 (7.1) | 0.630 (16) | 0.866 (22) | 0.472 (12) | 0.157 (4) | 10 | |
| 50020 00 N20 | 50020N-6-M5 | Request access | 6 | M5 | .141 (3.6) | 0.394 (10) | 0.965 (24.5) | 0.512 (13) | 0.079 (2) | 10 | |
| 50020 00 N03 | 50020N-6-1/8 | Request access | 6 | 1/8 | .212 (5.4) | 0.512 (13) | 0.925 (23.5) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N04 | 50020N-6-1/4 | Request access | 6 | 1/4 | .279 (7.1) | 0.630 (16) | 0.925 (23.5) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N27 | 50020N-6-3/8 | Request access | 6 | 3/8 | .318 (8.1) | 0.787 (20) | 0.984 (25) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N28 | 50020N-6-1/2 | Request access | 6 | 1/2 | .377 (9.6) | 0.984 (25) | 1.063 (27) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N05 | 50020N-8-1/8 | Request access | 5/16 (8) | 1/8 | .212 (5.4) | 0.512 (13) | 0.984 (25) | 0.551 (14) | 0.197 (5) | 10 | |
| 50020 00 N06 | 50020N-8-1/4 | Request access | 5/16 (8) | 1/4 | .279 (7.1) | 0.630 (16) | 0.906 (23) | 0.551 (14) | 0.236 (6) | 10 | |
| 50020 00 N07 | 50020N-8-3/8 | Request access | 5/16 (8) | 3/8 | .318 (8.1) | 0.787 (20) | 0.945 (24) | 0.551 (14) | 0.236 (6) | 10 | |
| 50020 00 N29 | 50020N-8-1/2 | Request access | 5/16 (8) | 1/2 | .377 (9.6) | 0.984 (25) | 1.043 (26.5) | 0.551 (14) | 0.236 (6) | 10 | |
| 50020 00 N30 | 50020N-10-1/8 | Request access | 10 | 1/8 | .212 (5.4) | 0.512 (13) | 1.181 (30) | 0.669 (17) | 0.197 (5) | 10 | |
| 50020 00 N08 | 50020N-10-1/4 | Request access | 10 | 1/4 | .279 (7.1) | 0.630 (16) | 1.201 (30.5) | 0.669 (17) | 0.236 (6) | 10 | |
| 50020 00 N09 | 50020N-10-3/8 | Request access | 10 | 3/8 | .318 (8.1) | 0.787 (20) | 1.083 (27.5) | 0.669 (17) | 0.315 (8) | 10 | |
| 50020 00 N31 | 50020N-10-1/2 | Request access | 10 | 1/2 | .377 (9.6) | 0.984 (25) | 1.063 (27) | 0.669 (17) | 0.315 (8) | 10 | |
| 50020 00 N32 | 50020N-12-1/4 | Request access | 12 | 1/4 | .279 (7.1) | 0.630 (16) | 1.358 (34.5) | 0.787 (20) | 0.236 (6) | 10 | |
| 50020 00 N11 | 50020N-12-3/8 | Request access | 12 | 3/8 | .318 (8.1) | 0.787 (20) | 1.339 (34) | 0.787 (20) | 0.315 (8) | 10 | |
| 50020 00 N23 | 50020N-12-1/2 | Request access | 12 | 1/2 | .377 (9.6) | 0.984 (25) | 1.220 (31) | 0.866 (22) | 0.394 (10) | 10 | |
| 50020 00 N24 | 50020N-14-3/8 | Request access | 14 | 3/8 | .318 (8.1) | 0.787 (20) | 1.378 (35) | 0.827 (21) | 0.394 (10) | 10 | |
| 50020 00 N25 | 50020N-14-1/2 | Request access | 14 | 1/2 | .377 (9.6) | 0.984 (25) | 1.260 (32) | 0.866 (22) | 0.433 (11) | 10 | |
| 50020 00 N42 | 50020N-16-3/8 | Request access | 16 | 3/8 | .318 (8.1) | 0.787 (20) | 1.417 (36) | 0.906 (23) | 0.394 (10) | 10 | |
| 50020 00 N43 | 50020N-16-1/2 | Request access | 16 | 1/2 | .377 (9.6) | 0.984 (25) | 1.457 (37) | 0.984 (25) | 0.472 (12) | 10 | |
| 50020 00 N46 | 50020N-4-M6x1 | Request access | 5/32 (4) | M6X1 | .141 (3.6) | 0.472 (12) | 0.728 (18.5) | 0.394 (10) | 0.118 (3) | 10 | |
| 50020 00 N33 | 50020N-4-M8x1 | Request access | 5/32 (4) | M8X1 | .212 (5.4) | 0.472 (12) | 0.728 (18.5) | 0.394 (10) | 0.118 (3) | 10 | |
| 50020 00 N37 | 50020N-6-M8X1 | Request access | 6 | M8X1 | .212 (5.4) | 0.472 (12) | 0.965 (24.5) | 0.512 (13) | 0.118 (3) | 10 | |
| 50020 00 N38 | 50020N-6-M10X1 | Request access | 6 | M10X1 | .212 (5.4) | 0.512 (13) | 0.906 (23) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N12 | 50020N-6-M12X1 | Request access | 6 | M12X1 | .287 (7.3) | 0.591 (15) | 0.925 (23.5) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N13 | 50020N-6-M12X1,25 | Request access | 6 | M12X1,25 | .287 (7.3) | 0.591 (15) | 0.925 (23.5) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N14 | 50020N-6-M12X1,5 | Request access | 6 | M12X1,5 | .287 (7.3) | 0.591 (15) | 0.925 (23.5) | 0.512 (13) | 0.157 (4) | 10 | |
| 50020 00 N39 | 50020N-8-M8x1 | Request access | 5/16 (8) | M8X1 | .212 (5.4) | 0.472 (12) | 1.004 (25.5) | 0.551 (14) | 0.157 (4) | 10 | |
| 50020 00 N40 | 50020N-8-M10x1 | Request access | 5/16 (8) | M10X1 | .212 (5.4) | 0.512 (13) | 1.004 (25.5) | 0.551 (14) | 0.157 (4) | 10 | |
| 50020 00 N17 | 50020N-8-M12X1,5 | Request access | 5/16 (8) | M12X1,5 | .287 (7.3) | 0.591 (15) | 1.083 (27.5) | 0.551 (14) | 0.236 (6) | 10 |
