50030N

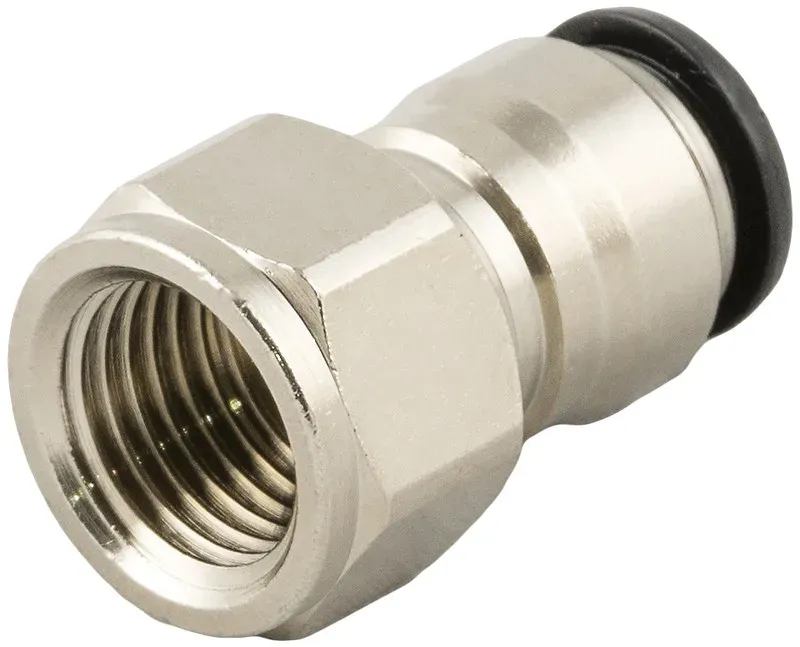

STRAIGHT FEMALE - BSPP

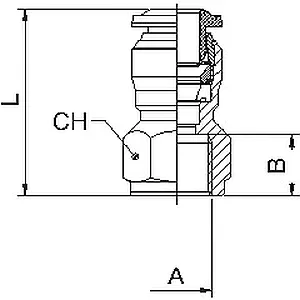

| Code | USA Ref | 3D Drawings | Tube | A | B | L | CH | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 50030 00 N08 | 50030N-4-M5 | Request access | 5/32 (4) | M5 | 0.217 (5.5) | 0.827 (21) | 0.433 (11) | 10 | |
| 50030 00 N01 | 50030N-4-1/8 | Request access | 5/32 (4) | 1/8 | 0.335 (8.5) | 0.945 (24) | 0.512 (13) | 10 | |
| 50030 00 N09 | 50030N-4-1/4 | Request access | 5/32 (4) | 1/4 | 0.433 (11) | 1.083 (27.5) | 0.630 (16) | 10 | |
| 50030 00 N06 | 50030N-5-1/8 | Request access | 5 | 1/8 | 0.335 (8.5) | 1.043 (26.5) | 0.512 (13) | 10 | |
| 50030 00 N02 | 50030N-6-1/8 | Request access | 6 | 1/8 | 0.335 (8.5) | 1.024 (26) | 0.512 (13) | 10 | |
| 50030 00 N03 | 50030N-6-1/4 | Request access | 6 | 1/4 | 0.433 (11) | 1.161 (29.5) | 0.630 (16) | 10 | |
| 50030 00 N04 | 50030N-8-1/8 | Request access | 5/16 (8) | 1/8 | 0.335 (8.5) | 1.063 (27) | 0.591 (15) | 10 | |
| 50030 00 N05 | 50030N-8-1/4 | Request access | 5/16 (8) | 1/4 | 0.433 (11) | 1.161 (29.5) | 0.669 (17) | 10 | |
| 50030 00 N10 | 50030N-8-3/8 | Request access | 5/16 (8) | 3/8 | 0.472 (12) | 1.260 (32) | 0.748 (19) | 10 | |
| 50030 00 N11 | 50030N-10-1/4 | Request access | 10 | 1/4 | 0.433 (11) | 1.260 (32) | 0.709 (18) | 10 | |
| 50030 00 N12 | 50030N-10-3/8 | Request access | 10 | 3/8 | 0.472 (12) | 1.319 (33.5) | 0.748 (19) | 10 | |
| 50030 00 N13 | 50030N-10-1/2 | Request access | 10 | 1/2 | 0.591 (15) | 1.535 (39) | 0.945 (24) | 10 | |
| 50030 00 N14 | 50030N-12-3/8 | Request access | 12 | 3/8 | 0.472 (12) | 1.417 (36) | 0.827 (21) | 10 | |
| 50030 00 N15 | 50030N-12-1/2 | Request access | 12 | 1/2 | 0.591 (15) | 1.614 (41) | 0.945 (24) | 10 | |
| 50030 00 N16 | 50030N-16-3/8 | Request access | 16 | 3/8 | 0.472 (12) | 1.594 (40.5) | 0.945 (24) | 10 | |
| 50030 00 N17 | 50030N-16-1/2 | Request access | 16 | 1/2 | 0.591 (15) | 1.634 (41.5) | 0.945 (24) | 10 |
