STANDPIPE - BSPP | Aignep S.p.A.

Filter

50600

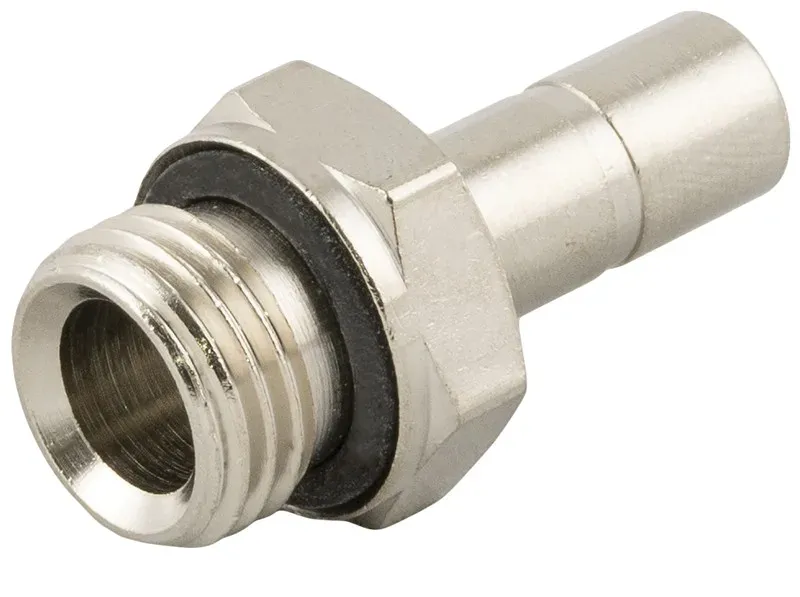

STANDPIPE - BSPP

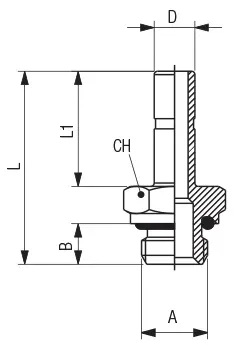

Code	USA Ref	3D Drawings	D	A	B	L	L1	CH	Bag
50600 00 001	50600-4-M5	Request access	5/32 (4)	M5	0.141 (3,6)	0.945 (24)	0.591 (15)	0.315 (8)	10
50600 00 002	50600-4-1/8	Request access	5/32 (4)	1/8	0.212 (5,4)	1.043 (26.5)	0.591 (15)	0.512 (13)	10
50600 00 012	50600-5-M5	Request access	5	M5	0.141 (3,6)	1.024 (26)	0.669 (17)	0.315 (8)	10
50600 00 013	50600-5-1/8	Request access	5	1/8	0.212 (5,4)	1.122 (28.5)	0.669 (17)	0.512 (13)	10
50600 00 014	50600-5-1/4	Request access	5	1/4	0.279 (7,1)	1.220 (31)	0.669 (17)	0.630 (16)	10
50600 00 015	50600-6-M5	Request access	6	M5	0.141 (3,6)	1.024 (26)	0.669 (17)	0.315 (8)	10
50600 00 003	50600-6-1/8	Request access	6	1/8	0.212 (5,4)	1.122 (28.5)	0.669 (17)	0.512 (13)	10
50600 00 004	50600-6-1/4	Request access	6	1/4	0.279 (7,1)	1.220 (31)	0.669 (17)	0.630 (16)	10
50600 00 005	50600-8-1/8	Request access	5/16 (8)	1/8	0.212 (5,4)	1.161 (29.5)	0.709 (18)	0.512 (13)	10
50600 00 006	50600-8-1/4	Request access	5/16 (8)	1/4	0.279 (7,1)	1.260 (32)	0.709 (18)	0.630 (16)	10
50600 00 007	50600-8-3/8	Request access	5/16 (8)	3/8	0.318 (8,1)	1.319 (33.5)	0.709 (18)	0.787 (20)	10
50600 00 016	50600-10-1/8	Request access	10	1/8	0.212 (5,4)	1.319 (33.5)	0.866 (22)	0.512 (13)	10
50600 00 008	50600-10-1/4	Request access	10	1/4	0.279 (7,1)	1.417 (36)	0.866 (22)	0.630 (16)	10
50600 00 009	50600-10-3/8	Request access	10	3/8	0.318 (8,1)	1.476 (37.5)	0.866 (22)	0.787 (20)	10
50600 00 017	50600-10-1/2	Request access	10	1/2	0.378 (9,6)	1.555 (39.5)	0.866 (22)	0.945 (24)	10
50600 00 010	50600-12-1/4	Request access	12	1/4	0.279 (7,1)	1.516 (38.5)	0.965 (24.5)	0.630 (16)	10
50600 00 011	50600-12-3/8	Request access	12	3/8	0.318 (8,1)	1.575 (40)	0.965 (24.5)	0.787 (20)	10
50600 00 018	50600-14-1/2	Request access	14	1/2	0.378 (9,6)	1.732 (44)	1.043 (26.5)	0.945 (24)	10
