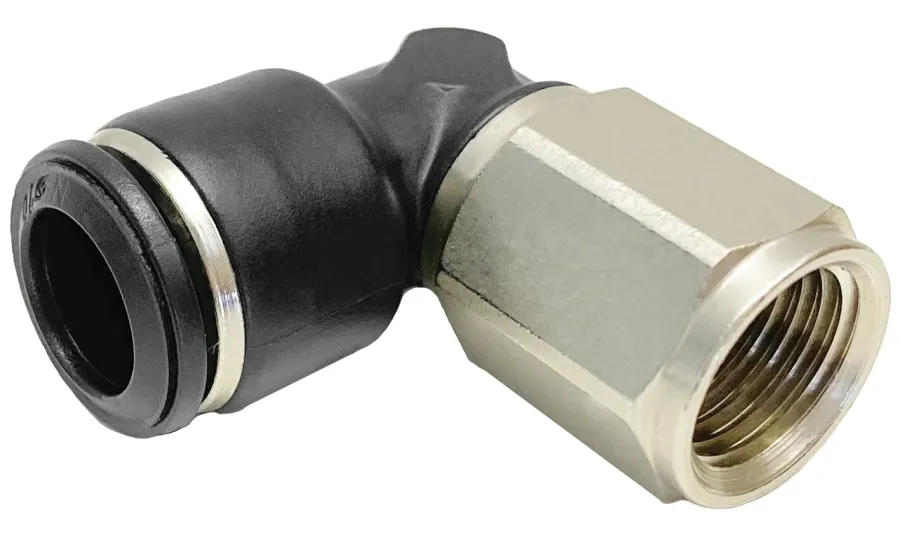

ORIENTING ELBOW FEMALE ADAPTOR - BSPP

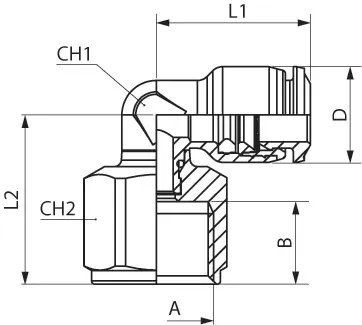

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	D	Bag
55106 00 001	55106-4-1/8	Request access	5/32 (4)	1/8	0.335 (8.5)	0.650 (16.5)	0.748 (19)	0.276 (7)	0.512 (13)	0.394 (10)	10
55106 00 002	55106-4-1/4	Request access	5/32 (4)	1/4	0.433 (11)	0.650 (16.5)	0.886 (22.5)	0.276 (7)	0.630 (16)	0.394 (10)	10
55106 00 003	55106-6-1/8	Request access	6	1/8	0.335 (8.5)	0.807 (20.5)	0.787 (20)	0.354 (9)	0.512 (13)	0.492 (12.5)	10
55106 00 004	55106-6-1/4	Request access	6	1/4	0.433 (11)	0.807 (20.5)	0.925 (23.5)	0.354 (9)	0.630 (16)	0.492 (12.5)	10
55106 00 005	55106-8-1/8	Request access	5/16 (8)	1/8	0.335 (8.5)	0.886 (22.5)	0.827 (21)	0.394 (10)	0.512 (13)	0.551 (14)	10
55106 00 006	55106-8-1/4	Request access	5/16 (8)	1/4	0.433 (11)	0.886 (22.5)	0.925 (23.5)	0.394 (10)	0.630 (16)	0.551 (14)	10
55106 00 007	55106-8-3/8	Request access	5/16 (8)	3/8	0.472 (12)	0.886 (22.5)	0.965 (24.5)	0.394 (10)	0.748 (19)	0.551 (14)	10
55106 00 008	55106-10-1/4	Request access	10	1/4	0.433 (11)	1.043 (26.5)	1.063 (27)	0.512 (13)	0.630 (16)	0.669 (17)	10
55106 00 009	55106-10-3/8	Request access	10	3/8	0.472 (12)	1.043 (26.5)	1.063 (27)	0.512 (13)	0.748 (19)	0.669 (17)	10
