Filter

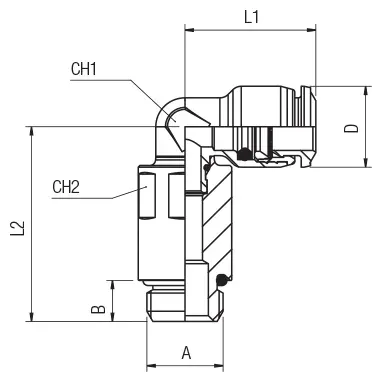

| Code | USA Ref | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55126 00 002 | 55126-4-M5 | Request access | 5/32 (4) | M5 | .142 (3.6) | 0.650 (16.5) | 1.083 (27.5) | 0.276 (7) | 0.315 (8) | 0.394 (10) | 10 | |
| 55126 00 004 | 55126-4-1/8 | Request access | 5/32 (4) | 1/8 | .213 (5.4) | 0.650 (16.5) | 1.122 (28.5) | 0.276 (7) | 0.472 (12) | 0.394 (10) | 10 | |
| 55126 00 008 | 55126-6-M5 | Request access | 6 | M5 | .142 (3.6) | 0.807 (20.5) | 1.161 (29.5) | 0.354 (9) | 0.315 (8) | 0.492 (12.5) | 10 | |
| 55126 00 025 | 55126-6-M7x1 | Request access | 6 | M7X1 | .189 (4.8) | 0.807 (20.5) | 1.220 (31) | 0.354 (9) | 0.472 (12) | 0.492 (12.5) | 10 | |
| 55126 00 009 | 55126-6-1/8 | Request access | 6 | 1/8 | .213 (5.4) | 0.807 (20.5) | 1.161 (29.5) | 0.354 (9) | 0.472 (12) | 0.492 (12.5) | 10 | |
| 55126 00 024 | 55126-6-1/4 | Request access | 6 | 1/4 | .280 (7.1) | 0.807 (20.5) | 1.161 (29.5) | 0.354 (9) | 0.591 (15) | 0.492 (12.5) | 10 | |
| 55126 00 013 | 55126-8-1/8 | Request access | 5/16 (8) | 1/8 | .213 (5.4) | 0.886 (22.5) | 1.358 (34.5) | 0.394 (10) | 0.472 (12) | 0.551 (14) | 10 | |
| 55126 00 014 | 55126-8-1/4 | Request access | 5/16 (8) | 1/4 | .280 (7.1) | 0.886 (22.5) | 1.319 (33.5) | 0.394 (10) | 0.591 (15) | 0.551 (14) | 10 | |
| 55126 00 015 | 55126-8-3/8 | Request access | 5/16 (8) | 3/8 | .312 (8.1) | 0.886 (22.5) | 1.358 (34.5) | 0.394 (10) | 0.472 (12) | 0.551 (14) | 10 | |
| 55126 00 016 | 55126-10-1/4 | Request access | 10 | 1/4 | .279 (7.1) | 1.043 (26.5) | 1.693 (43) | 0.512 (13) | 0.591 (15) | 0.669 (17) | 10 | |
| 55126 00 017 | 55126-10-3/8 | Request access | 10 | 3/8 | .312 (8.1) | 1.043 (26.5) | 1.693 (43) | 0.512 (13) | 0.591 (15) | 0.669 (17) | 10 | |
| 55126 00 018 | 55126-10-1/2 | Request access | 10 | 1/2 | .378 (9.6) | 1.043 (26.5) | 1.772 (45) | 0.512 (13) | 0.591 (15) | 0.669 (17) | 10 | |
| 55126 00 019 | 55126-12-1/4 | Request access | 12 | 1/4 | .279 (7.1) | 1.220 (31) | 1.772 (45) | 0.630 (16) | 0.591 (15) | 0.787 (20) | 10 | |
| 55126 00 020 | 55126-12-3/8 | Request access | 12 | 3/8 | .312 (8.1) | 1.201 (30.5) | 1.752 (44.5) | 0.630 (16) | 0.591 (15) | 0.787 (20) | 10 | |
| 55126 00 021 | 55126-12-1/2 | Request access | 12 | 1/2 | .378 (9.6) | 1.220 (31) | 1.811 (46) | 0.630 (16) | 0.591 (15) | 0.787 (20) | 10 |
