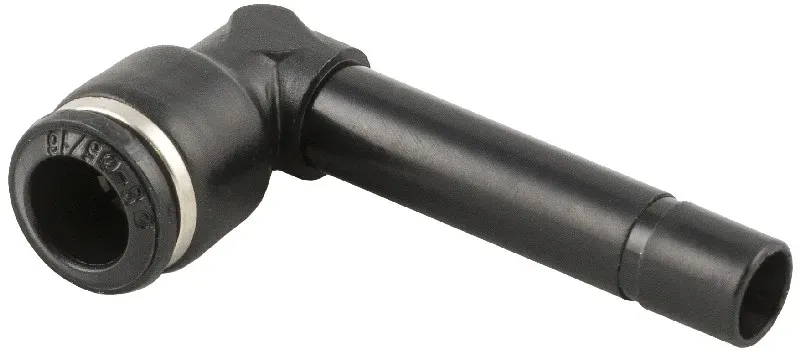

ELBOW PLUG IN

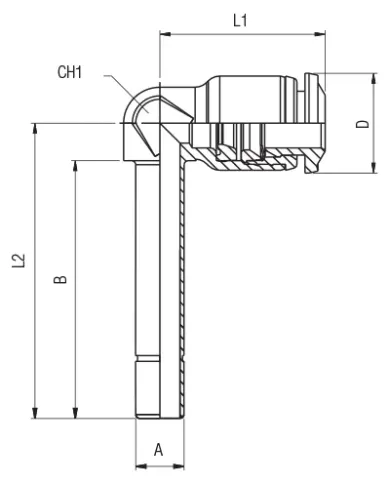

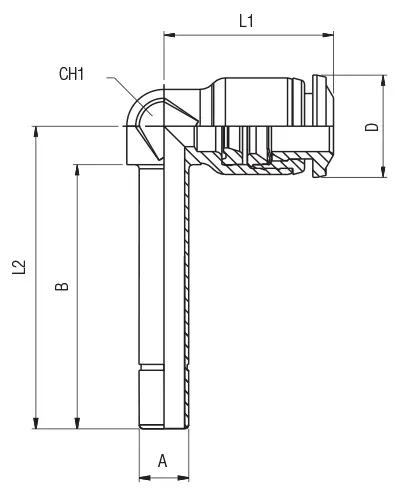

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH1	D	Bag
55150 00 001	55150-4	Request access	5/32 (4)	5/32 (4)	1.102 (28)	0.650 (16.5)	1.252 (31.8)	0.276 (7)	0.394 (10)	10
55150 00 002	55150-4-6	Request access	5/32 (4)	6	1.201 (30.5)	0.650 (16.5)	1.350 (34.3)	0.276 (7)	0.394 (10)	10
55150 00 005	55150-6	Request access	6	6	1.272 (32.3)	0.807 (20.5)	1.457 (37)	0.354 (9)	0.492 (12.5)	10
55150 00 006	55150-6-4	Request access	6	5/32 (4)	1.181 (30)	0.807 (20.5)	1.366 (34.7)	0.354 (9)	0.492 (12.5)	10
55150 00 007	55150-8	Request access	5/16 (8)	5/16 (8)	1.417 (36)	0.866 (22)	1.654 (42)	0.394 (10)	0.551 (14)	10
55150 00 008	55150-8-10	Request access	5/16 (8)	10	1.476 (37.5)	0.866 (22)	1.697 (43.1)	0.394 (10)	0.551 (14)	10
55150 00 009	55150-10	Request access	10	10	1.606 (40.8)	1.043 (26.5)	1.902 (48.3)	0.512 (13)	0.669 (17)	10
55150 00 010	55150-10-12	Request access	10	12	1.701 (43.2)	1.043 (26.5)	1.996 (50.7)	0.512 (13)	0.669 (17)	10
55150 00 011	55150-12	Request access	12	12	1.850 (47)	1.220 (31)	2.165 (55)	0.630 (16)	0.787 (20)	10
