50050N

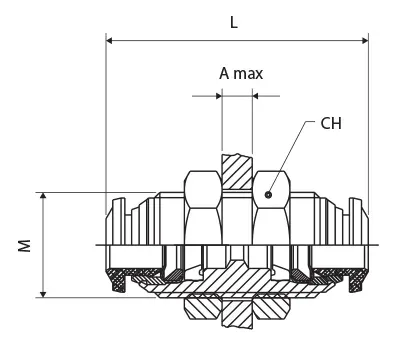

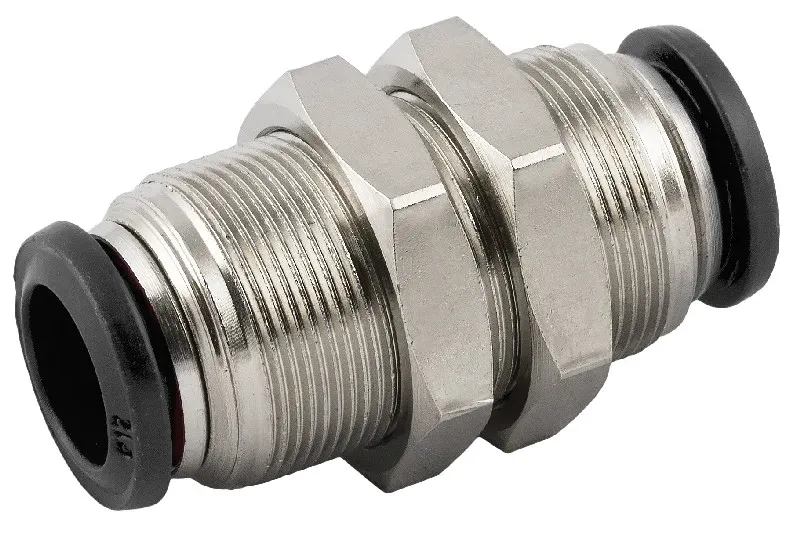

BULKHEAD UNION
| Code | USA Ref | 3D Drawings | Tube | M | L | CH | A Max | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 50050 00 N07 | 50050N-3 | Request access | 3 | M10X1 | 1.024 (26) | 0.551 (14) | 0.197 (5) | 10 | |
| 50050 00 N01 | 50050N-4 | Request access | 5/32 (4) | M12X1 | 1.240 (31.5) | 0.669 (17) | 0.276 (7) | 10 | |
| 50050 00 N06 | 50050N-5 | Request access | 5 | M14X1 | 1.299 (33) | 0.669 (17) | 0.276 (7) | 10 | |
| 50050 00 N02 | 50050N-6 | Request access | 6 | M14X1 | 1.378 (35) | 0.669 (17) | 0.374 (9.5) | 10 | |
| 50050 00 N09 | 50050N-8-6 | Request access | 5/16 (8)-6 | M16X1 | 1.457 (37) | 0.748 (19) | 0.413 (10.5) | 10 | |
| 50050 00 N03 | 50050N-8 | Request access | 5/16 (8) | M16X1 | 1.457 (37) | 0.748 (19) | 0.413 (10.5) | 10 | |
| 50050 00 N10 | 50050N-10-6 | Request access | 10-6 | M20X1 | 1.693 (43) | 0.945 (24) | 0.453 (11.5) | 10 | |
| 50050 00 N11 | 50050N-10-8 | Request access | 10-5/16 (8) | M20X1 | 1.693 (43) | 0.945 (24) | 0.492 (12.5) | 10 | |
| 50050 00 N04 | 50050N-10 | Request access | 10 | M20X1 | 1.693 (43) | 0.945 (24) | 0.492 (12.5) | 10 | |
| 50050 00 N05 | 50050N-12 | Request access | 12 | M22X1 | 1.890 (48) | 1.024 (26) | 0.650 (16.5) | 10 | |
| 50050 00 N08 | 50050N-14 | Request access | 14 | M23X1 | 1.929 (49) | 1.063 (27) | 0.650 (16.5) | 10 |
