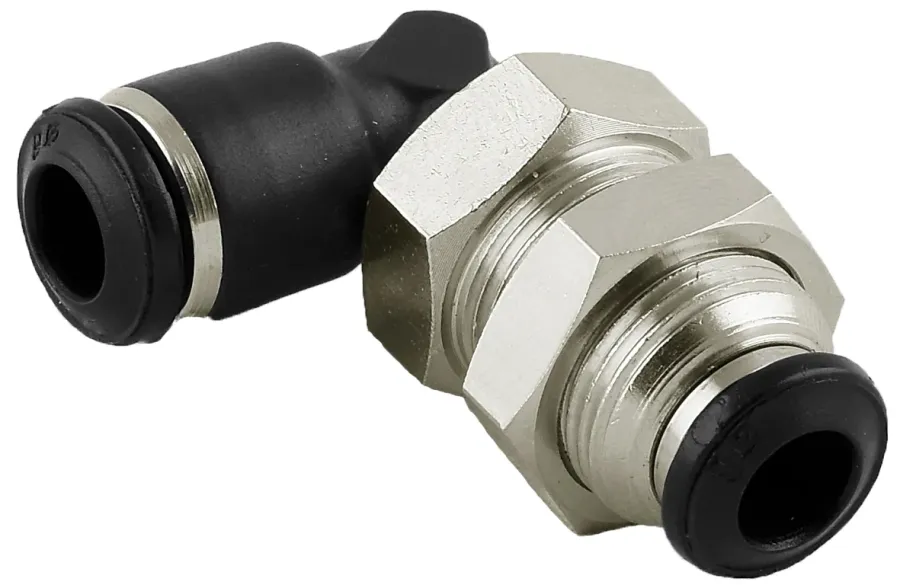

BULKHEAD ORIENTING ELBOW

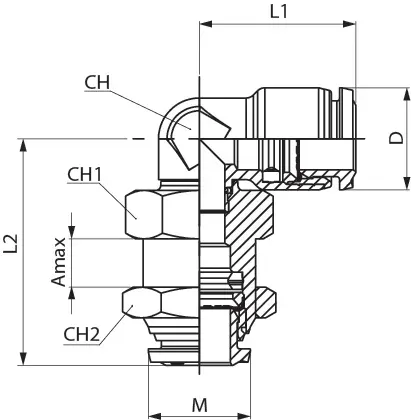

Code	USA Ref	3D Drawings	Tube	M	L1	L2	CH	CH1	CH2	A max	D	Bag
55060 00 003	55060-4-M12X1	Request access	5/32 (4)	M12X1	0.650 (16.5)	1.181 (30)	0.276 (7)	0.551 (14)	0.669 (17)	0.256 (6.5)	0.394 (10)	10
55060 00 004	55060-6-M14x1	Request access	6	M14X1	0.807 (20.5)	1.220 (31)	0.354 (9)	0.630 (16)	0.669 (17)	0.256 (6.5)	0.472 (12)	10
55060 00 005	55060-8-M16x1	Request access	5/16 (8)	M16X1	0.886 (22.5)	1.339 (34)	0.394 (10)	0.709 (18)	0.748 (19)	0.276 (7)	0.551 (14)	10
55060 00 006	55060-10-M20x1	Request access	10	M20X1	1.043 (26.5)	1.535 (39)	0.512 (13)	0.709 (18)	0.945 (24)	0.295 (7.5)	0.669 (17)	10
55060 00 007	55060-12-M22x1	Request access	12	M22X1	1.181 (30)	1.732 (44)	0.630 (16)	0.984 (25)	1.024 (26)	0.374 (9.5)	0.787 (20)	10
