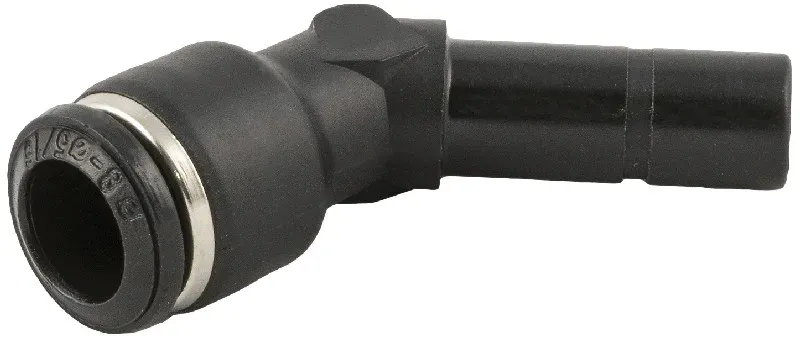

45° ELBOW PLUG IN

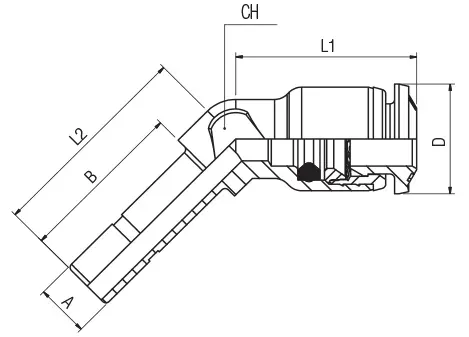

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH	D	Bag
55160 00 001	55160-4	Request access	5/32 (4)	5/32 (4)	0.669 (17)	0.492 (12.5)	0.827 (21)	0.276 (7)	0.394 (10)	10
55160 00 005	55160-6	Request access	6	6	0.748 (19)	0.807 (20.5)	0.925 (23.5)	0.354 (9)	0.472 (12)	10
55160 00 007	55160-8	Request access	5/16 (8)	5/16 (8)	0.787 (20)	0.866 (22)	0.984 (25)	0.394 (10)	0.551 (14)	10
55160 00 009	55160-10	Request access	10	10	0.886 (22.5)	1.043 (26.5)	1.181 (30)	0.512 (13)	0.669 (17)	10
55160 00 011	55160-12	Request access	12	12	1.004 (25.5)	1.181 (30)	1.319 (33.5)	0.630 (16)	0.787 (20)	10
