| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Min. control pressure psi (bar) | Pump max m³/h | Max vacuum mm Hg | Max vacuum Torr | Weight lb (Kg) | Coil | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

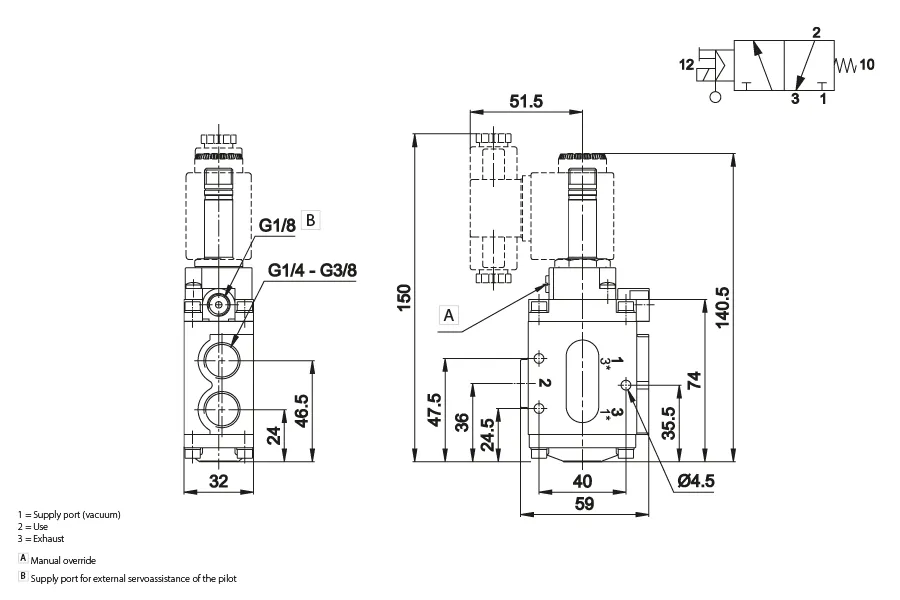

| UAG 3001 | UAG3001 | Request access | 3/2 | NC | G 1/8 | electric amplified | mechanical spring | .217 (5.5) | 14 | 25 | 22 (1.5) | 1.5 | 759.5 | 0.5 | 0.55 (0.25) | U1 | ||
| UAG 3009 | UAG3009 | Request access | 3/2 | NC | G 1/4 | electric amplified | mechanical spring | .315 (8) | 16 | 27 | 36 (2.5) | 4 | 759.5 | 0.5 | 1.28 (0.58) | U2 | ||
| UAG 3011 | UAG3011 | Request access | 3/2 | NC | G 3/8 | electric amplified | mechanical spring | .394 (10) | 16 | 27 | 36 (2.5) | 10 | 759.5 | 0.5 | 1.23 (0.56) | U2 | ||

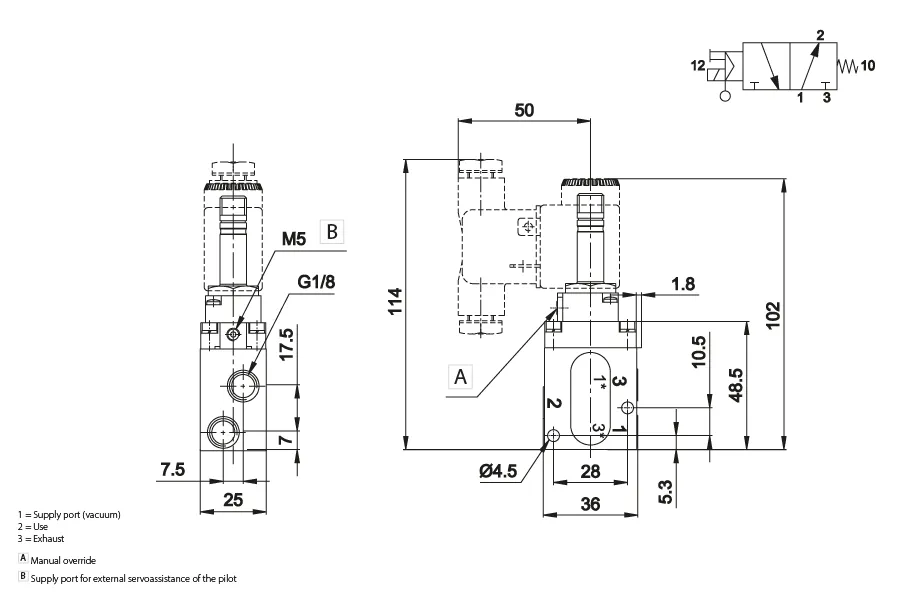

| UAG 3002 | UAG3002 | Request access | 3/2 | NO | G 1/8 | electric amplified | mechanical spring | .217 (5.5) | 14 | 25 | 22 (1.5) | 1.5 | 759.5 | 0.5 | 0.55 (0.25) | U1 | ||
| UAG 3010 | UAG3010 | Request access | 3/2 | NO | G 1/4 | electric amplified | mechanical spring | .315 (8) | 16 | 27 | 36 (2.5) | 4 | 759.5 | 0.5 | 1.28 (0.58) | U2 | ||
| UAG 3012 | UAG3012 | Request access | 3/2 | NO | G 3/8 | electric amplified | mechanical spring | .394 (10) | 16 | 27 | 36 (2.5) | 10 | 759.5 | 0.5 | 1.23 (0.56) | U2 | ||

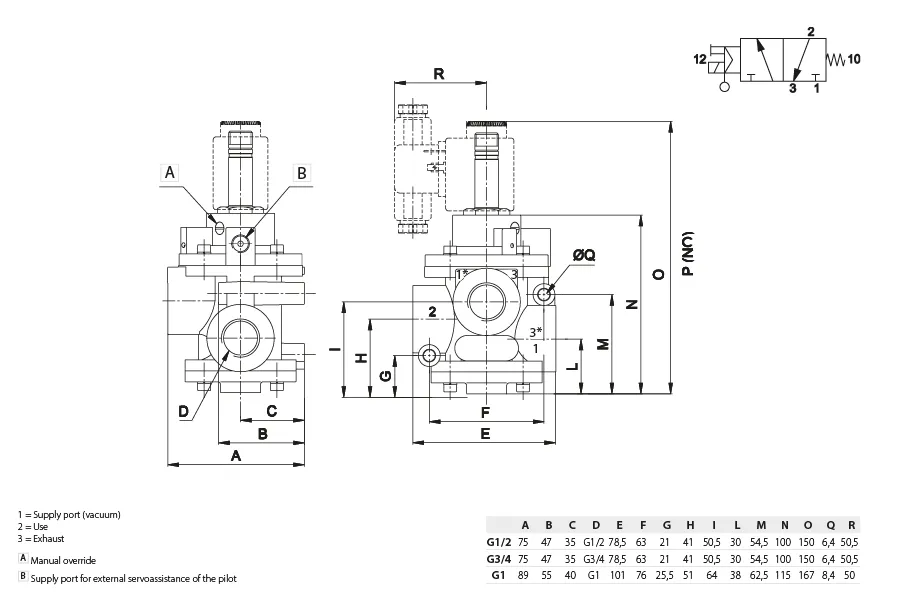

| UAG 3020 | UAG3020 | Request access | 3/2 | NC | G 1/2 | electric amplified | mechanical spring | .591 (15) | 16 | 40 | 44 (3) | 20 | 759.5 | 0.5 | 2.62 (1.19) | U2 | ||
| UAG 3040 | UAG3040 | Request access | 3/2 | NC | G 3/4 | electric amplified | mechanical spring | .748 (19) | 16 | 40 | 44 (3) | 35 | 759.5 | 0.5 | 2.49 (1.13) | U2 | ||
| UAG 3050 | UAG3050 | Request access | 3/2 | NC | G 1 | electric amplified | mechanical spring | .984 (25) | 18 | 42 | 44 (3) | 90 | 759.5 | 0.5 | 3.57 (1.62) | U2 | ||

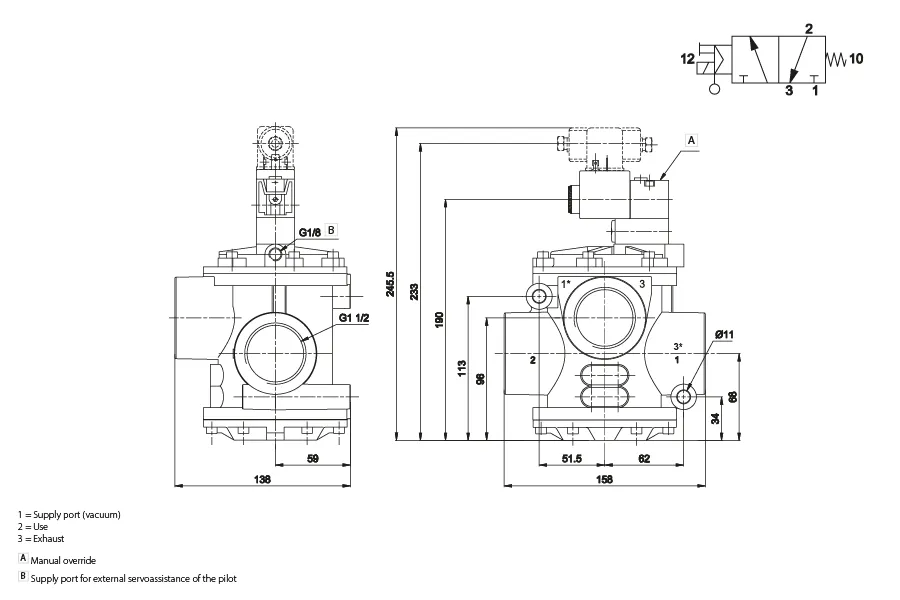

| UAG 3062 | UAG3062 | Request access | 3/2 | NC | G 1 1/2 | electric amplified | mechanical spring | 1.535 (39) | 60 | 38 | 58 (4) | 180 | 759.5 | 0.5 | 4.96 (2.25) | U2 | ||

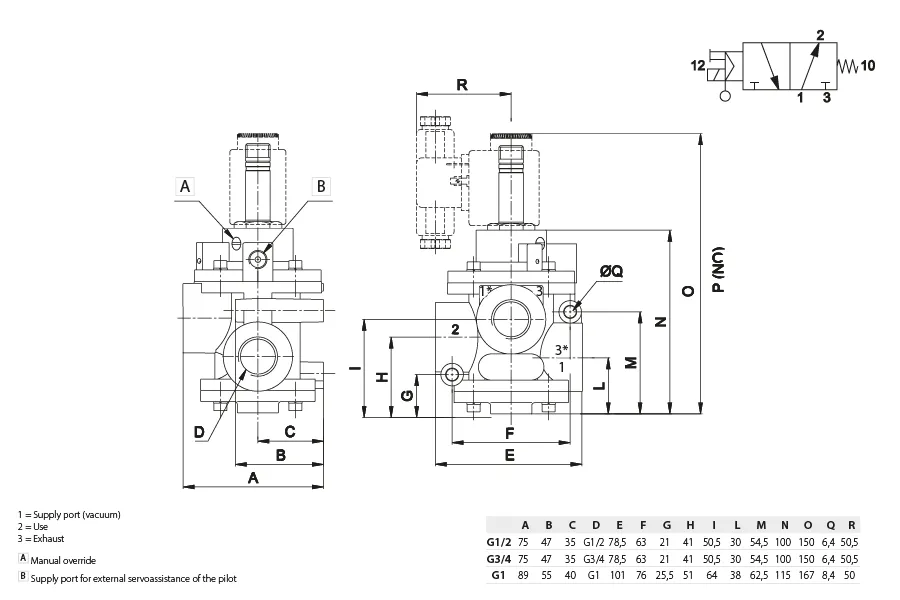

| UAG 3021 | UAG3021 | Request access | 3/2 | NO | G 1/2 | electric amplified | mechanical spring | .591 (15) | 16 | 40 | 44 (3) | 20 | 759.5 | 0.5 | 2.62 (1.19) | U2 | ||
| UAG 3041 | UAG3041 | Request access | 3/2 | NO | G 3/4 | electric amplified | mechanical spring | .748 (19) | 16 | 40 | 44 (3) | 35 | 759.5 | 0.5 | 2.49 (1.13) | U2 | ||
| UAG 3051 | UAG3051 | Request access | 3/2 | NO | G 1 | electric amplified | mechanical spring | .984 (25) | 18 | 42 | 44 (3) | 90 | 759.5 | 0.5 | 3.57 (1.62) | U2 | ||

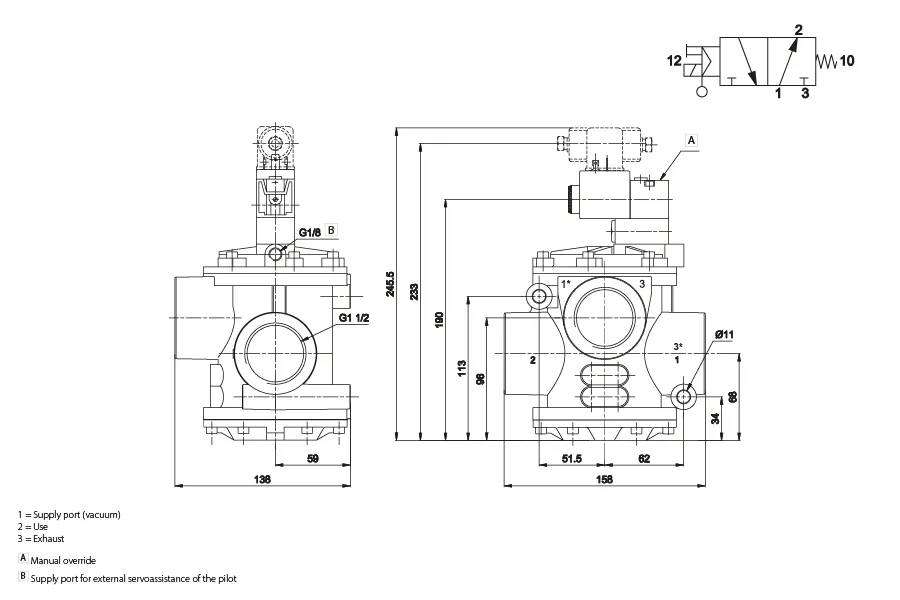

| UAG 3063 | UAG3063 | Request access | 3/2 | NO | G 1 1/2 | electric amplified | mechanical spring | 1.535 (39) | 60 | 38 | 58 (4) | 180 | 759.5 | 0.5 | 4.96 (2.25) | U2 |
