Filter
| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Pump max m³/h | Min vacuum mm Hg | Min vacuum Torr | Max vacuum mm Hg | Max vacuum Torr | Weight lb (Kg) | Coil | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

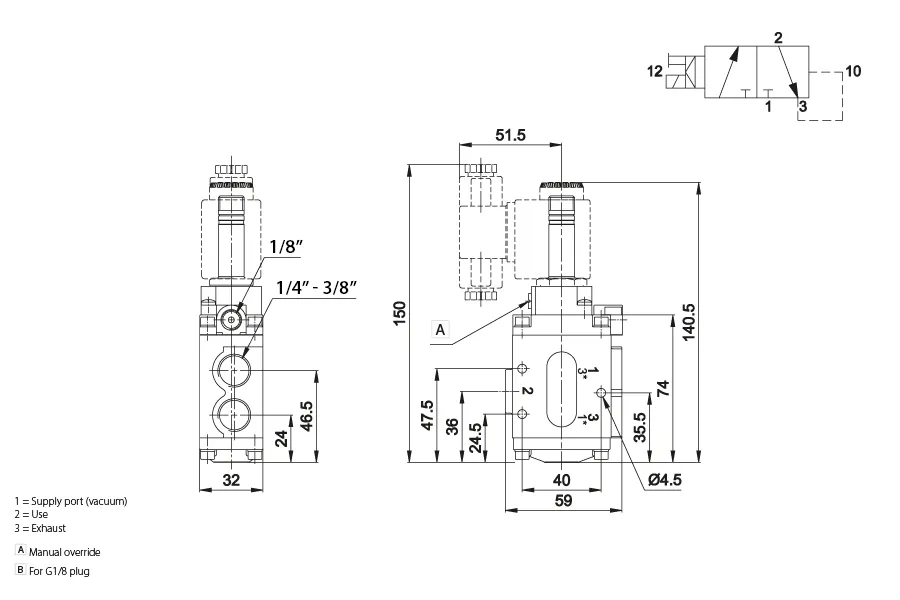

| UAG 3210 N | UAG3210N | Request access | 3/2 | NC | 1/4 NPT | electric amplified | vacuum | .315 (8) | 25 | 16 | 4 | 150 | 610 | 759.5 | 0.5 | 1.15 (0.52) | U2 | ||
| UAG 3214 N | UAG3214N | Request access | 3/2 | NC | 3/8 NPT | electric amplified | vacuum | .394 (10) | 25 | 16 | 10 | 150 | 610 | 759.5 | 0.5 | 1.23 (0.56) | U2 | ||
| UAG 3211 N | UAG3211N | Request access | 3/2 | NO | 1/4 NPT | electric amplified | vacuum | .315 (8) | 20 | 14 | 4 | 150 | 610 | 759.5 | 0.5 | 1.28 (0.58) | U2 | ||
| UAG 3215 N | UAG3215N | Request access | 3/2 | NO | 3/8 NPT | electric amplified | vacuum | .394 (10) | 20 | 14 | 10 | 150 | 610 | 759.5 | 0.5 | 1.23 (0.56) | U2 | ||

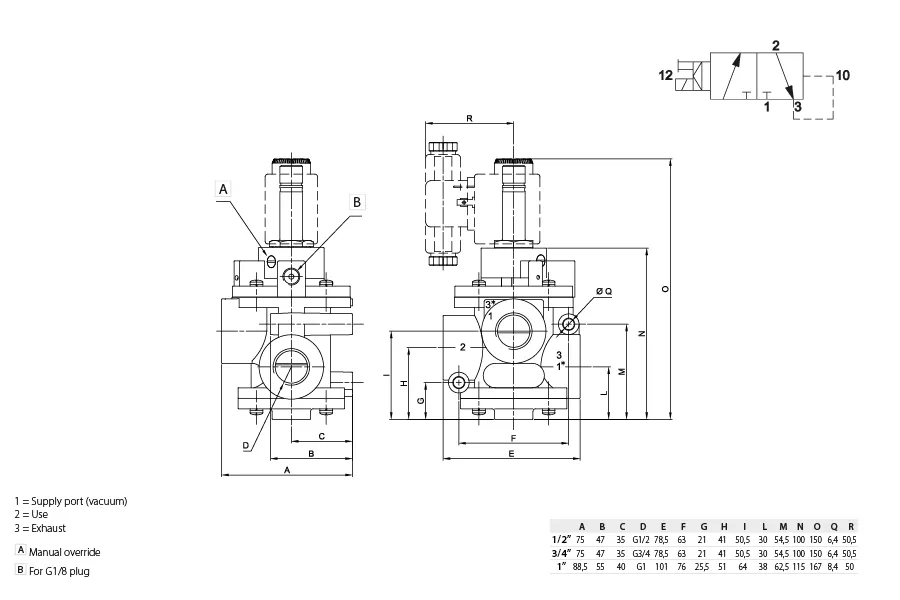

| UAG 3222 N | UAG3222N | Request access | 3/2 | NC | 1/2 NPT | electric amplified | vacuum | .591 (15) | 30 | 15 | 20 | 150 | 610 | 759.5 | 0.5 | 2.62 (1.19) | U2 | ||
| UAG 3232 N | UAG3232N | Request access | 3/2 | NC | 3/4 NPT | electric amplified | vacuum | .748 (19) | 30 | 15 | 35 | 150 | 610 | 759.5 | 0.5 | 2.49 (1.13) | U2 | ||
| UAG 3242 N | UAG3242N | Request access | 3/2 | NC | 1 NPT | electric amplified | vacuum | .984 (25) | 38 | 18 | 90 | 150 | 610 | 759.5 | 0.5 | 3.57 (1.62) | U2 | ||

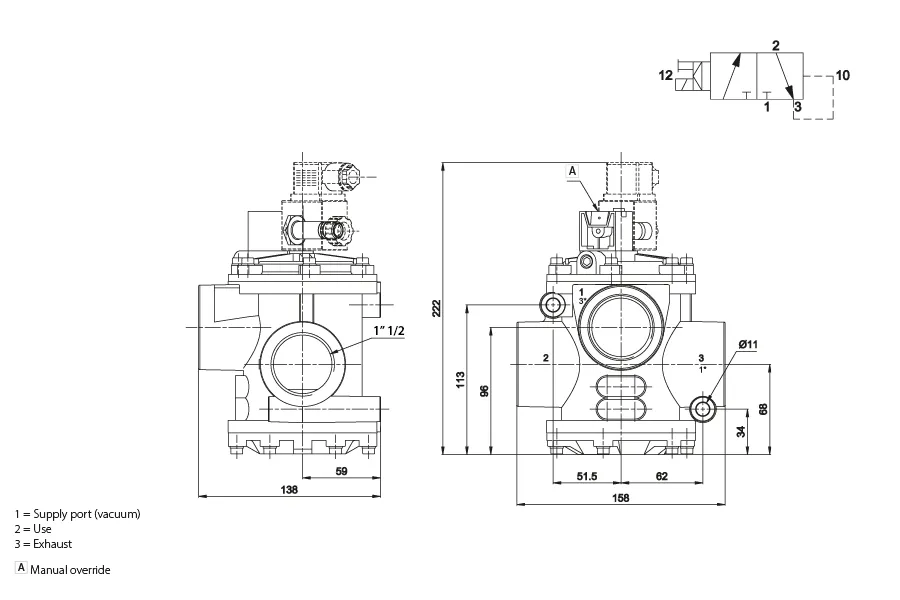

| UAG 3256 N | UAG3256N | Request access | 3/2 | NC | 1 1/2 NPT | electric amplified | vacuum | 1.535 (39) | 75 | 50 | 100 | 150 | 610 | 759.5 | 0.5 | 4.41 (2) | U2 | ||

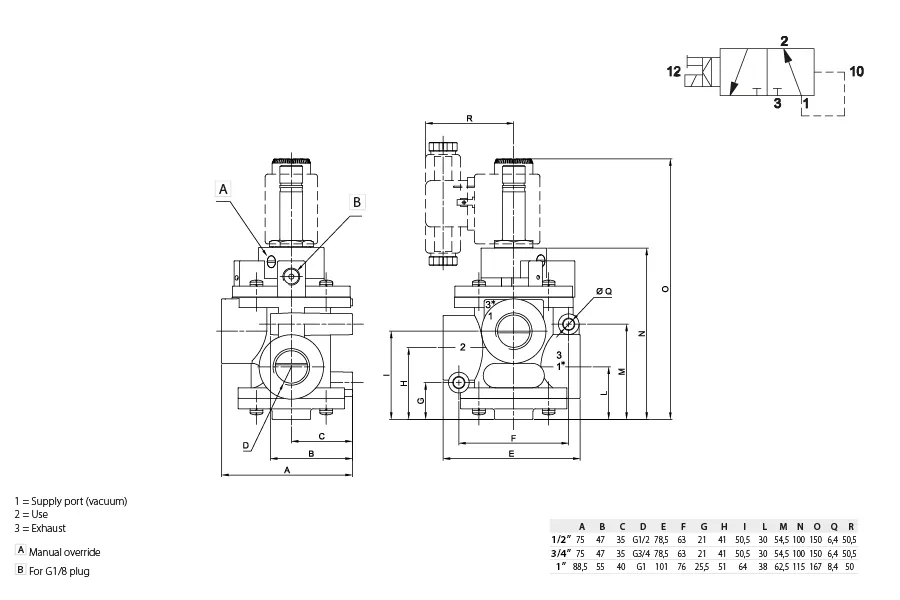

| UAG 3223 N | UAG3223N | Request access | 3/2 | NO | 1/2 NPT | electric amplified | vacuum | .591 (15) | 20 | 18 | 20 | 150 | 610 | 759.5 | 0.5 | 2.62 (1.19) | U2 | ||
| UAG 3233 N | UAG3233N | Request access | 3/2 | NO | 3/4 NPT | electric amplified | vacuum | .748 (19) | 20 | 18 | 35 | 150 | 610 | 759.5 | 0.5 | 2.49 (1.13) | U2 | ||
| UAG 3243 N | UAG3243N | Request access | 3/2 | NO | 1 NPT | electric amplified | vacuum | .984 (25) | 25 | 20 | 90 | 150 | 610 | 759.5 | 0.5 | 3.57 (1.62) | U2 | ||

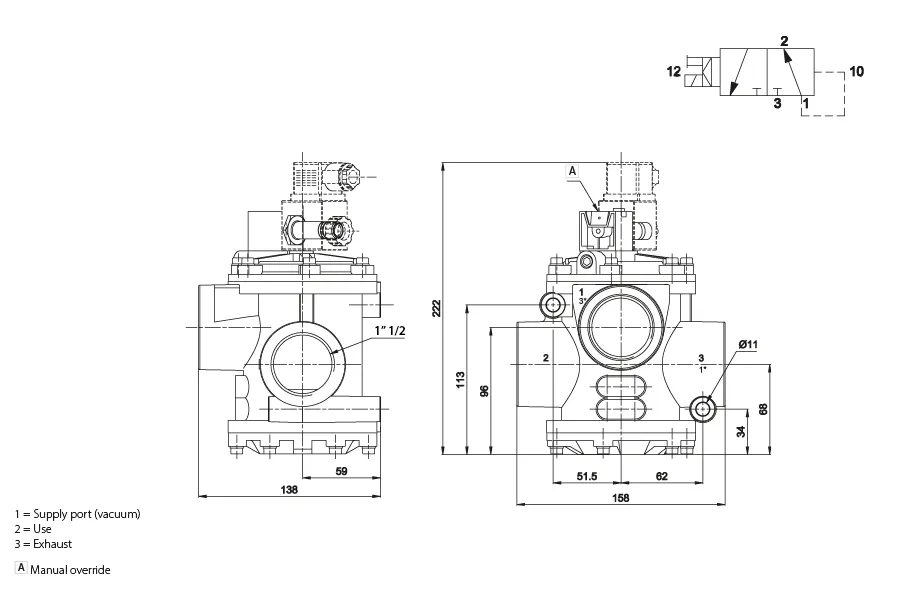

| UAG 3257 N | UAG3257N | Request access | 3/2 | NO | 1 1/2 NPT | electric amplified | vacuum | 1.535 (39) | 70 | 60 | 100 | 150 | 610 | 759.5 | 0.5 | 4.41 (2) | U2 |
