| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Min. control pressure psi (bar) | Pump max m³/h | Max vacuum mm Hg | Max vacuum Torr | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

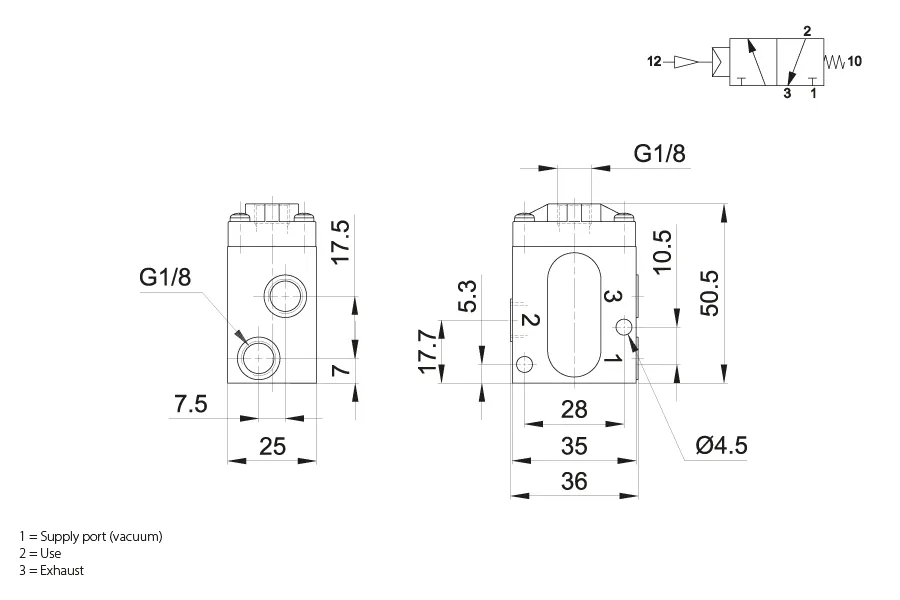

| UAG 3071 | UAG3071 | Request access | 3/2 | NC | G 1/8 | pneumatic amplified | mechanical spring | .217 (5.5) | 3 | 6 | 22 (1.5) | 1.5 | 759.5 | 0.5 | 0.46 (0.21) | ||
| UAG 3073 | UAG3073 | Request access | 3/2 | NC | G 1/4 | pneumatic amplified | mechanical spring | .315 (8) | 4 | 8 | 36 (2.5) | 4 | 759.5 | 0.5 | 1.19 (0.54) | ||
| UAG 3075 | UAG3075 | Request access | 3/2 | NC | G 3/8 | pneumatic amplified | mechanical spring | .394 (10) | 4 | 8 | 36 (2.5) | 10 | 759.5 | 0.5 | 1.15 (0.52) | ||
| UAG 3072 | UAG3072 | Request access | 3/2 | NO | G 1/8 | pneumatic amplified | mechanical spring | .217 (5.5) | 3 | 6 | 22 (1.5) | 1.5 | 759.5 | 0.5 | 0.46 (0.21) | ||
| UAG 3074 | UAG3074 | Request access | 3/2 | NO | G 1/4 | pneumatic amplified | mechanical spring | .315 (8) | 4 | 8 | 36 (2.5) | 4 | 759.5 | 0.5 | 1.19 (0.54) | ||
| UAG 3076 | UAG3076 | Request access | 3/2 | NO | G 3/8 | pneumatic amplified | mechanical spring | .394 (10) | 4 | 8 | 36 (2.5) | 10 | 759.5 | 0.5 | 1.15 (0.52) | ||
| UAG 3081 | UAG3081 | Request access | 3/2 | NC | G 1/2 | pneumatic amplified | mechanical spring | .591 (15) | 6 | 15 | 44 (3) | 20 | 759.5 | 0.5 | 2.56 (1.16) | ||
| UAG 3091 | UAG3091 | Request access | 3/2 | NC | G 3/4 | pneumatic amplified | mechanical spring | .748 (19) | 6 | 15 | 44 (3) | 35 | 759.5 | 0.5 | 2.43 (1.10) | ||
| UAG 3100 | UAG3100 | Request access | 3/2 | NC | G 1 | pneumatic amplified | mechanical spring | .984 (25) | 7 | 16 | 44 (3) | 90 | 759.5 | 0.5 | 3.51 (1.59) | ||

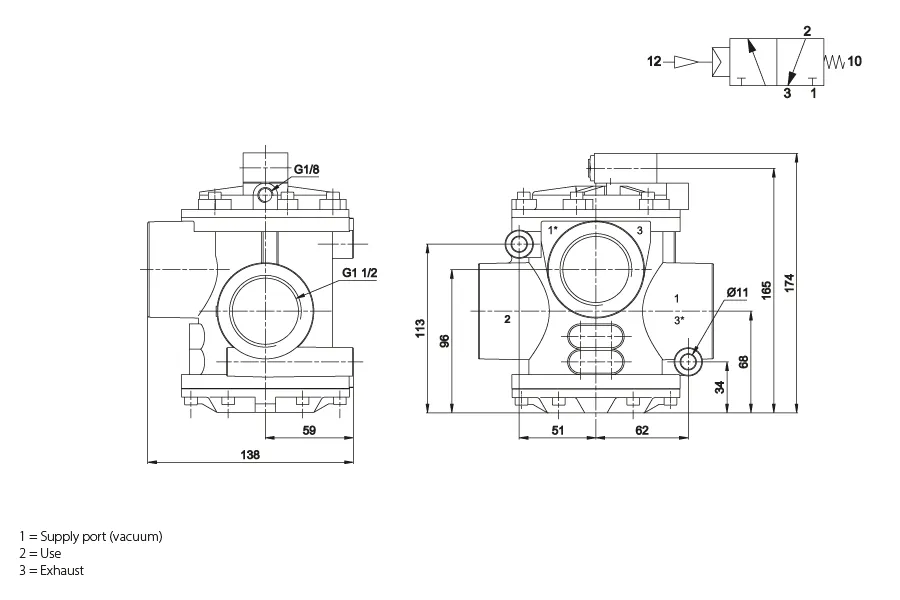

| UAG 3110 | UAG3110 | Request access | 3/2 | NC | G 1 1/2 | pneumatic amplified | mechanical spring | 1.535 (39) | 65 | 25 | 58 (4) | 180 | 759.5 | 0.5 | 4.83 (2.19) | ||

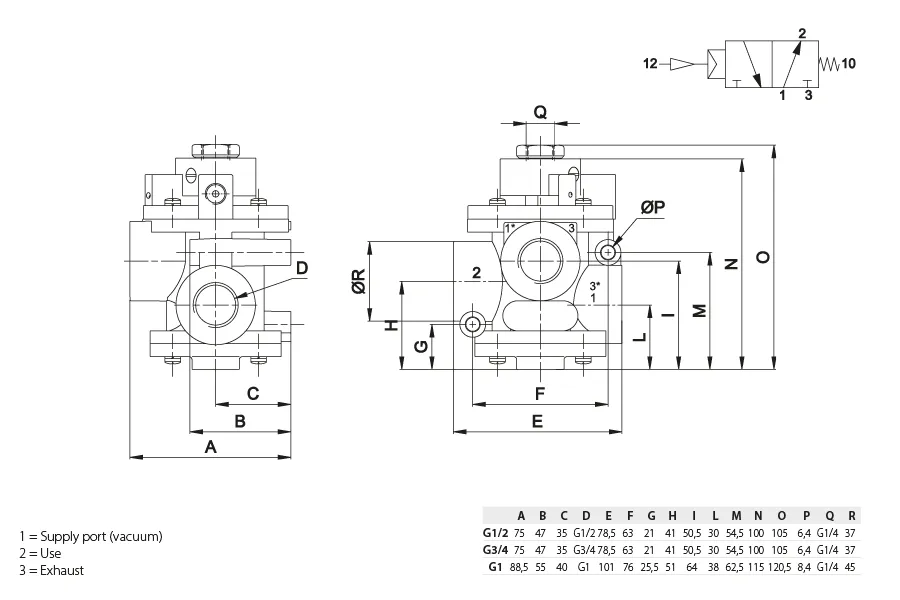

| UAG 3082 | UAG3082 | Request access | 3/2 | NO | G 1/2 | pneumatic amplified | mechanical spring | .591 (15) | 6 | 15 | 44 (3) | 20 | 759.5 | 0.5 | 2.56 (1.16) | ||
| UAG 3092 | UAG3092 | Request access | 3/2 | NO | G 3/4 | pneumatic amplified | mechanical spring | .748 (19) | 6 | 15 | 44 (3) | 35 | 759.5 | 0.5 | 2.43 (1.10) | ||
| UAG 3101 | UAG3101 | Request access | 3/2 | NO | G 1 | pneumatic amplified | mechanical spring | .984 (25) | 7 | 16 | 44 (3) | 90 | 759.5 | 0.5 | 3.51 (1.59) | ||
| UAG 3111 | UAG3111 | Request access | 3/2 | NO | G 1 1/2 | pneumatic amplified | mechanical spring | 1.535 (39) | 65 | 25 | 58 (4) | 180 | 759.5 | 0.5 | 4.83 (2.19) |
