| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Min. control pressure psi (bar) | Pump max m³/h | Max vacuum mm Hg | Max vacuum Torr | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

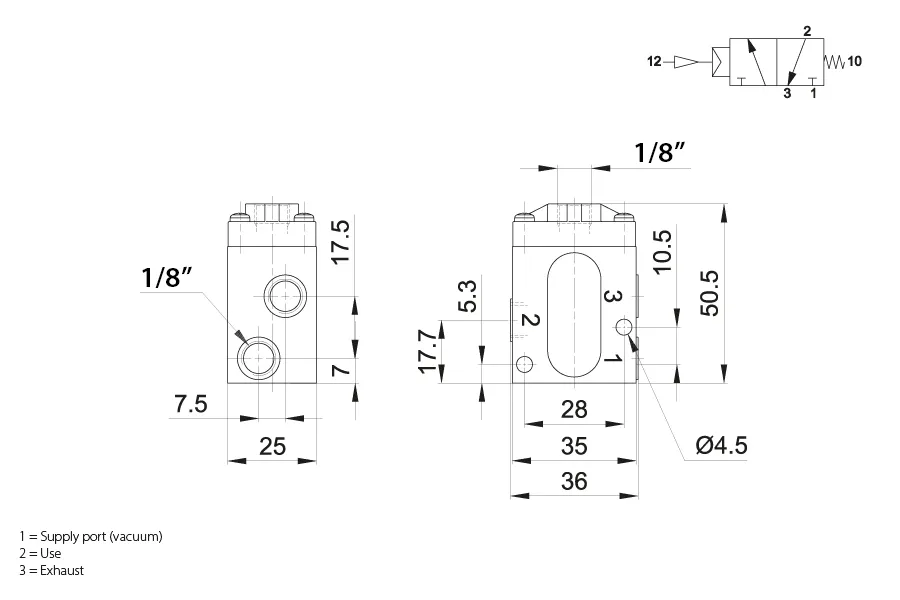

| UAG 3071 N | UAG3071N | Request access | 3/2 | NC | 1/8 NPT | pneumatic amplified | mechanical spring | .217 (5.5) | 3 | 6 | 22 (1.5) | 1.5 | 759.5 | 0.5 | 0.46 (0.21) | ||

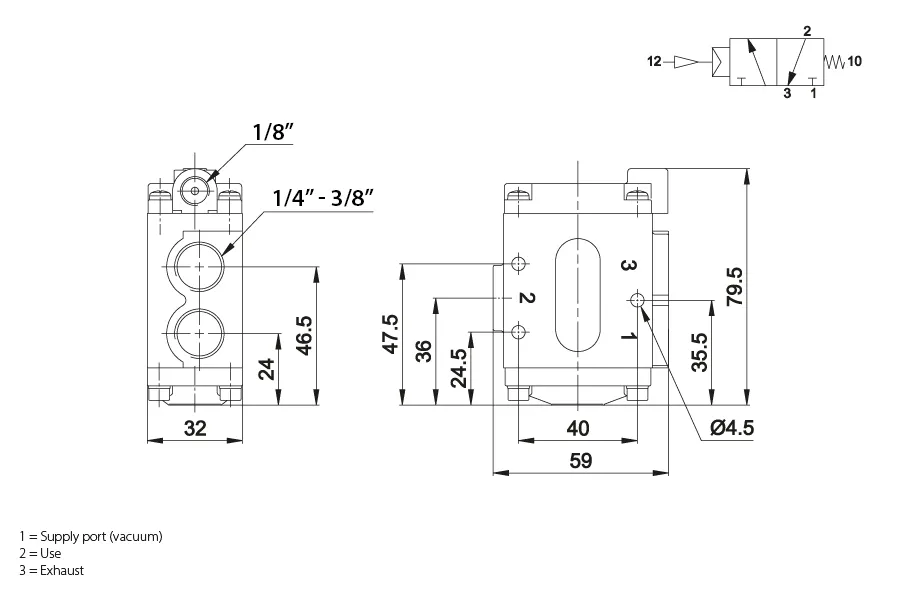

| UAG 3073 N | UAG3073N | Request access | 3/2 | NC | 1/4 NPT | pneumatic amplified | mechanical spring | .315 (8) | 4 | 8 | 36 (2.5) | 4 | 759.5 | 0.5 | 1.19 (0.54) | ||
| UAG 3075 N | UAG3075N | Request access | 3/2 | NC | 3/8 NPT | pneumatic amplified | mechanical spring | .394 (10) | 4 | 8 | 36 (2.5) | 10 | 759.5 | 0.5 | 1.15 (0.52) | ||
| UAG 3072 N | UAG3072N | Request access | 3/2 | NO | 1/8 NPT | pneumatic amplified | mechanical spring | .217 (5.5) | 3 | 6 | 22 (1.5) | 1.5 | 759.5 | 0.5 | 0.46 (0.21) | ||

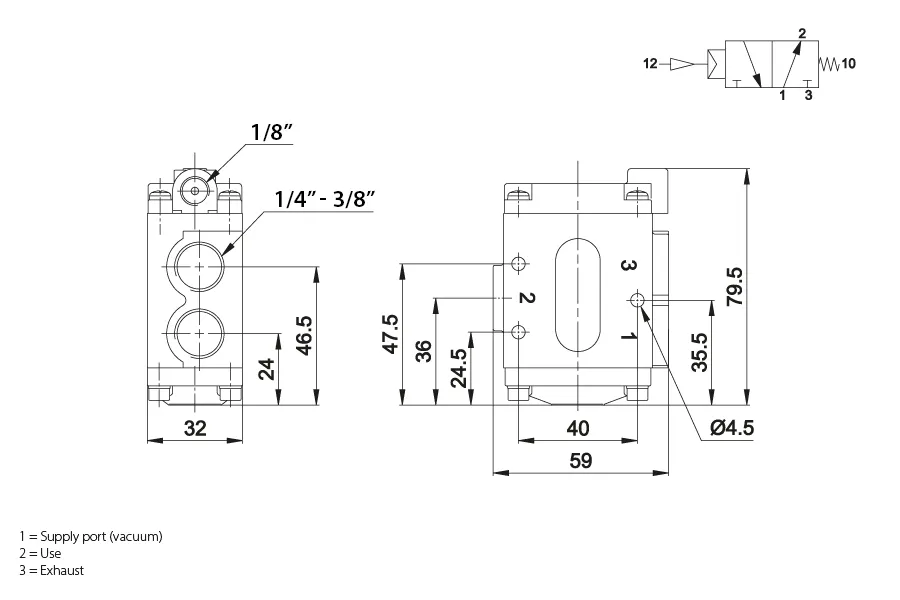

| UAG 3074 N | UAG3074N | Request access | 3/2 | NO | 1/4 NPT | pneumatic amplified | mechanical spring | .315 (8) | 4 | 8 | 36 (2.5) | 4 | 759.5 | 0.5 | 1.19 (0.54) | ||
| UAG 3076 N | UAG3076N | Request access | 3/2 | NO | 3/8 NPT | pneumatic amplified | mechanical spring | .394 (10) | 4 | 8 | 36 (2.5) | 10 | 759.5 | 0.5 | 1.15 (0.52) | ||

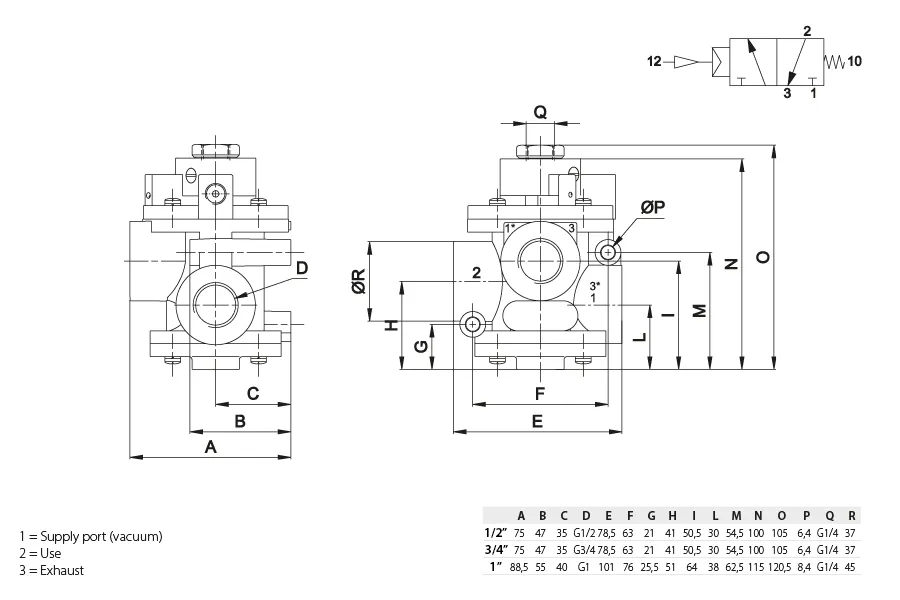

| UAG 3081 N | UAG3081N | Request access | 3/2 | NC | 1/2 NPT | pneumatic amplified | mechanical spring | .591 (15) | 6 | 15 | 44 (3) | 20 | 759.5 | 0.5 | 2.56 (1.16) | ||
| UAG 3091 N | UAG3091N | Request access | 3/2 | NC | 3/4 NPT | pneumatic amplified | mechanical spring | .748 (19) | 6 | 15 | 44 (3) | 35 | 759.5 | 0.5 | 2.43 (1.10) | ||
| UAG 3100 N | UAG3100N | Request access | 3/2 | NC | 1 NPT | pneumatic amplified | mechanical spring | .984 (25) | 7 | 16 | 44 (3) | 90 | 759.5 | 0.5 | 3.51 (1.59) | ||

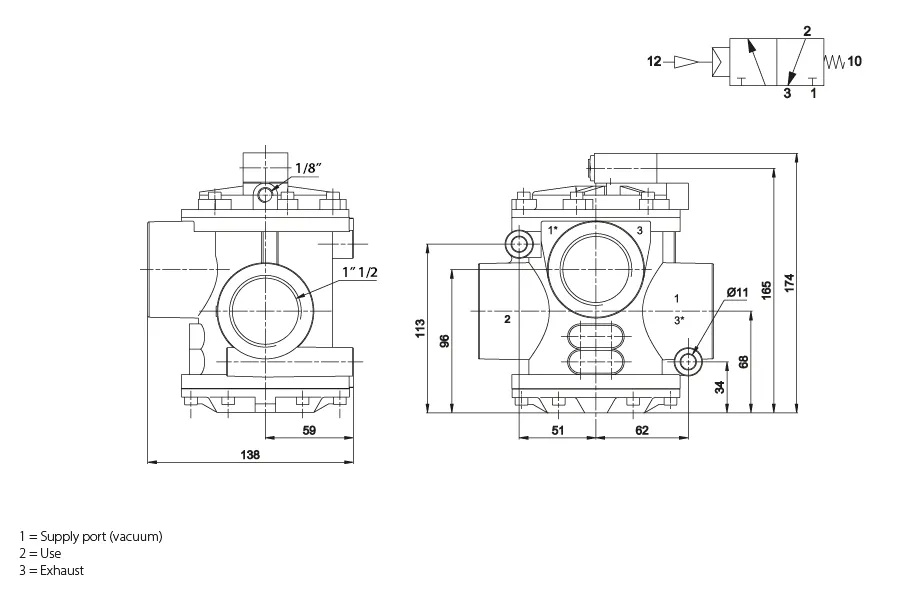

| UAG 3110 N | UAG3110N | Request access | 3/2 | NC | 1 1/2 NPT | pneumatic amplified | mechanical spring | 1.535 (39) | 65 | 25 | 58 (4) | 180 | 759.5 | 0.5 | 4.83 (2.19) | ||

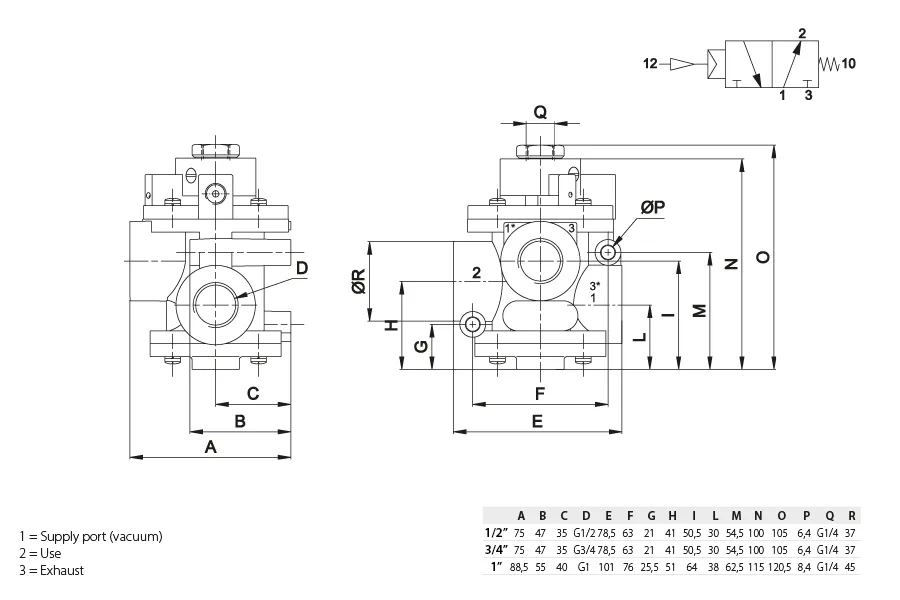

| UAG 3082 N | UAG3082N | Request access | 3/2 | NO | 1/2 NPT | pneumatic amplified | mechanical spring | .591 (15) | 6 | 15 | 44 (3) | 20 | 759.5 | 0.5 | 2.56 (1.16) | ||
| UAG 3092 N | UAG3092N | Request access | 3/2 | NO | 3/4 NPT | pneumatic amplified | mechanical spring | .748 (19) | 6 | 15 | 44 (3) | 35 | 759.5 | 0.5 | 2.43 (1.10) | ||
| UAG 3101 N | UAG3101N | Request access | 3/2 | NO | 1 NPT | pneumatic amplified | mechanical spring | .984 (25) | 7 | 16 | 44 (3) | 90 | 759.5 | 0.5 | 3.51 (1.59) | ||

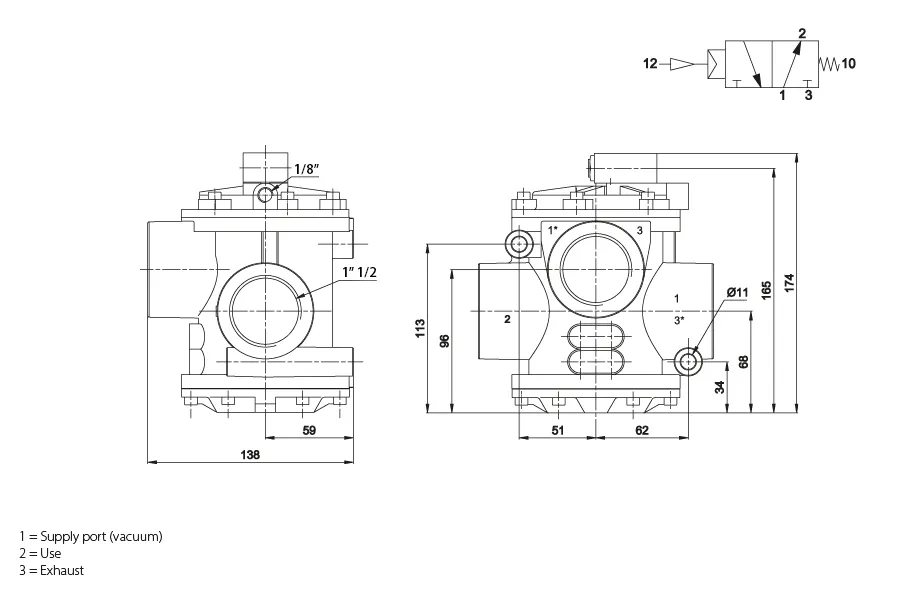

| UAG 3111 N | UAG3111N | Request access | 3/2 | NO | 1 1/2 NPT | pneumatic amplified | mechanical spring | 1.535 (39) | 65 | 25 | 58 (4) | 180 | 759.5 | 0.5 | 4.83 (2.19) |
