| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Flow rate Nl/min. | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Pressure psi (bar) min. | Pressure psi (bar) max. | Weight lb (Kg) | Coil | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

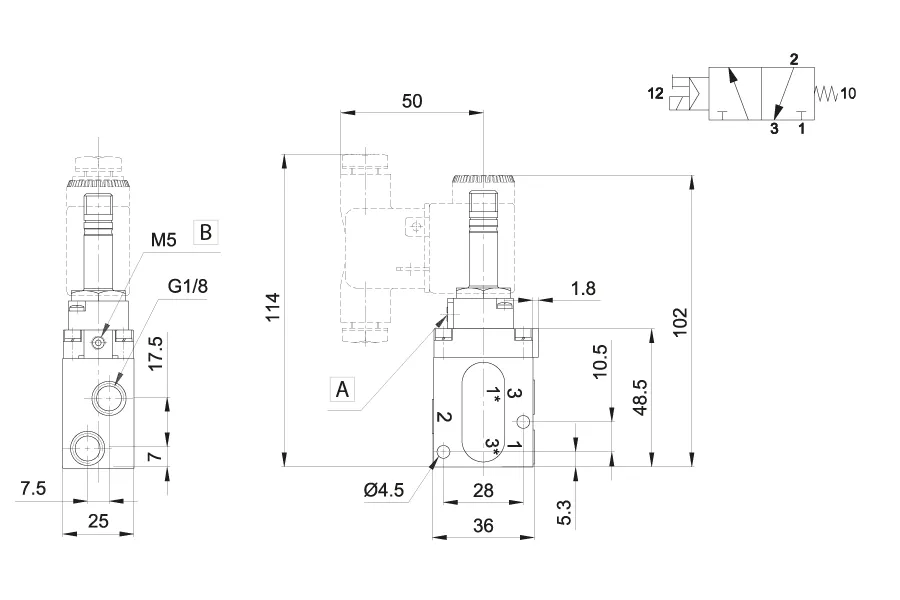

| UAF 25 00 | UAF2500 | Request access | 3/2 | NC | G 1/8 | electric amplified | pneumatic + spring | 580 | .217 (5.5) | 15 | 20 | 22 (1.5) | 145 (10) | 0.55 (0.25) | U1 | ||
| UAF 25 10 | UAF2510 | Request access | 3/2 | NC | G 1/4 | electric amplified | pneumatic + spring | 1100 | .315 (8) | 20 | 23 | 23 (1.6) | 145 (10) | 1.28 (0.58) | U1 | ||

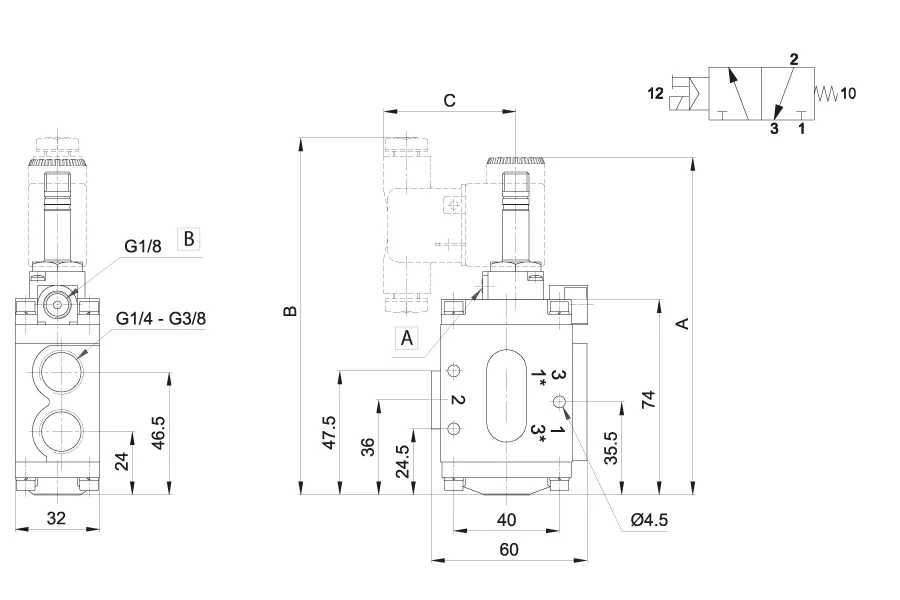

| UAF 25 20 | UAF2520 | Request access | 3/2 | NC | G 3/8 | electric amplified | pneumatic + spring | 1500 | .394 (10) | 20 | 23 | 23 (1.6) | 145 (10) | 1.23 (0.56) | U1 | ||

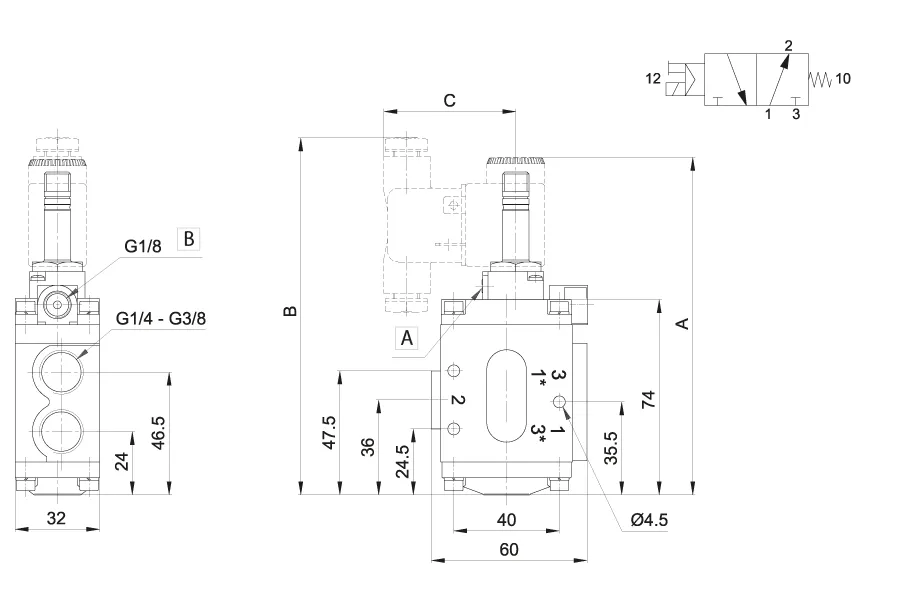

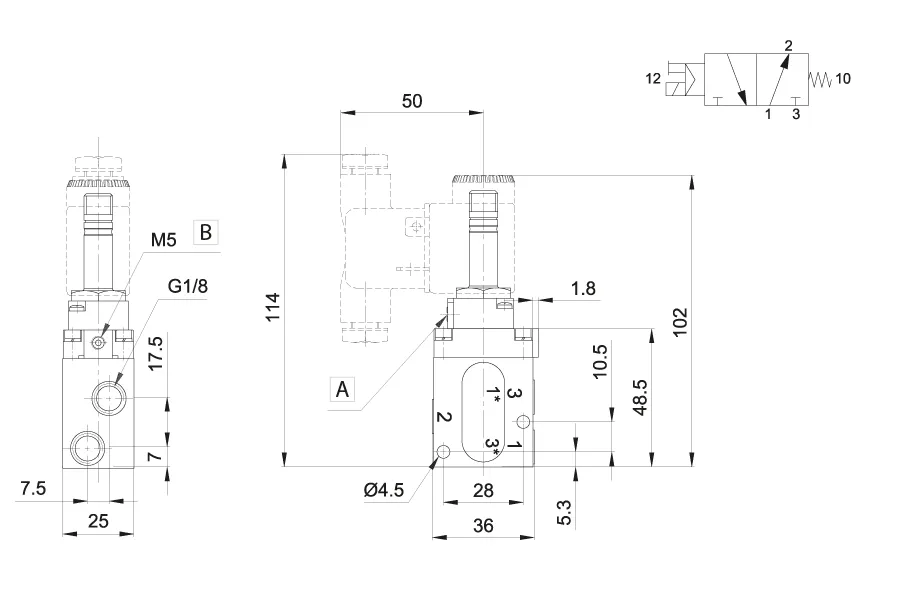

| UAF 25 01 | UAF2501 | Request access | 3/2 | NO | G 1/8 | electric amplified | pneumatic + spring | 580 | .217 (5.5) | 15 | 20 | 22 (1.5) | 145 (10) | 0.55 (0.25) | U1 | ||
| UAF 25 11 | UAF2511 | Request access | 3/2 | NO | G 1/4 | electric amplified | pneumatic + spring | 1100 | .315 (8) | 15 | 20 | 23 (1.6) | 145 (10) | 1.28 (0.58) | U1 | ||
| UAF 25 21 | UAF2521 | Request access | 3/2 | NO | G 3/8 | electric amplified | pneumatic + spring | 1500 | .394 (10) | 15 | 20 | 23 (1.6) | 145 (10) | 1.23 (0.56) | U1 | ||
| UAF 25 30 | UAF2530 | Request access | 3/2 | NC | G 1/2 | electric amplified | pneumatic + spring | 5400 | .591 (15) | 17 | 27 | 29 (2) | 145 (10) | 2.62 (1.19) | U2 | ||
| UAF 25 40 | UAF2540 | Request access | 3/2 | NC | G 3/4 | electric amplified | pneumatic + spring | 6500 | .748 (19) | 17 | 27 | 29 (2) | 145 (10) | 2.49 (1.13) | U2 | ||
| UAF 25 45 | UAF2545 | Request access | 3/2 | NC | G 1 | electric amplified | pneumatic + spring | 13500 | .984 (25) | 20 | 32 | 32 (2.2) | 145 (10) | 3.57 (1.62) | U2 | ||
| UAF 25 65 | UAF2565 | Request access | 3/2 | NC | G 1 1/2 | electric amplified | pneumatic + spring | 35000 | 1.535 (39) | 47 | 22 | 36 (2.5) | 145 (10) | 5.00 (2.27) | U2 | ||

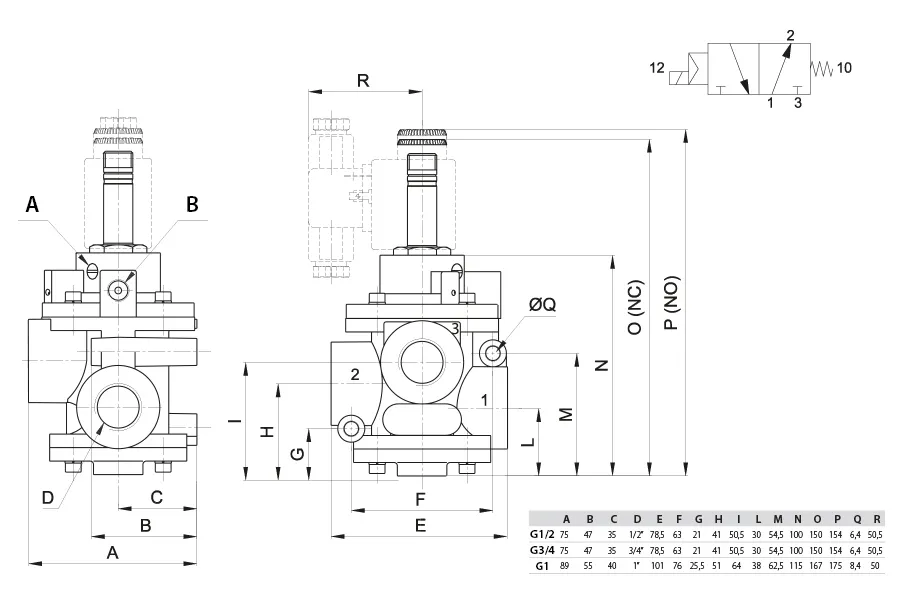

| UAF 25 31 | UAF2531 | Request access | 3/2 | NO | G 1/2 | electric amplified | pneumatic + spring | 5400 | .591 (15) | 22 | 22 | 44 (3) | 145 (10) | 2.62 (1.19) | U2 | ||
| UAF 25 41 | UAF2541 | Request access | 3/2 | NO | G 3/4 | electric amplified | pneumatic + spring | 6500 | .748 (19) | 22 | 22 | 44 (3) | 145 (10) | 2.49 (1.13) | U2 | ||
| UAF 25 46 | UAF2546 | Request access | 3/2 | NO | G 1 | electric amplified | pneumatic + spring | 13500 | .984 (25) | 23 | 23 | 44 (3) | 145 (10) | 3.57 (1.62) | U2 | ||

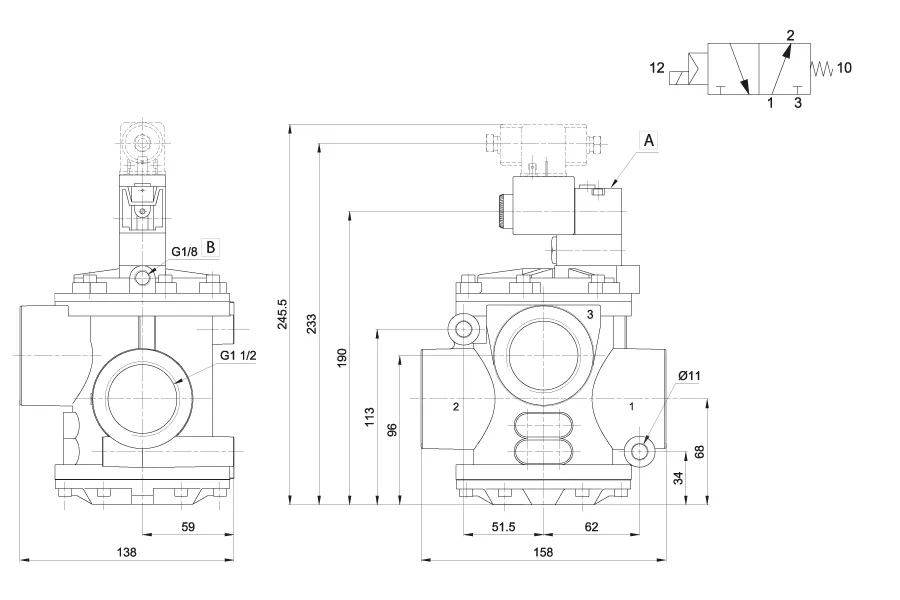

| UAF 25 61 | UAF2561 | Request access | 3/2 | NO | G 1 1/2 | electric amplified | pneumatic + spring | 35000 | 1.535 (39) | 20 | 20 | 44 (3) | 145 (10) | 5.00 (2.27) | U2 |
