| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Flow rate Nl/min. | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Pressure psi (bar) min. | Pressure psi (bar) max. | Weight lb (Kg) | Coil | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

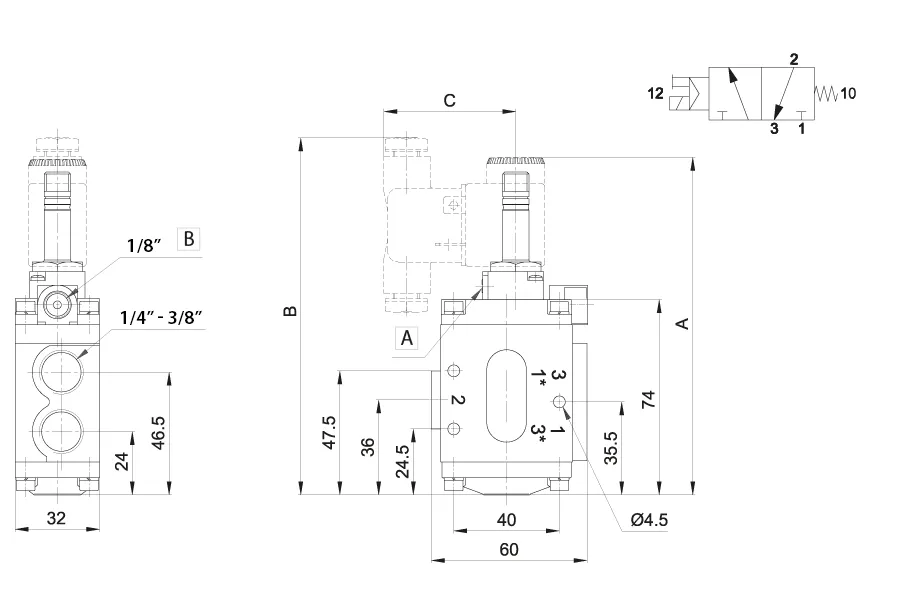

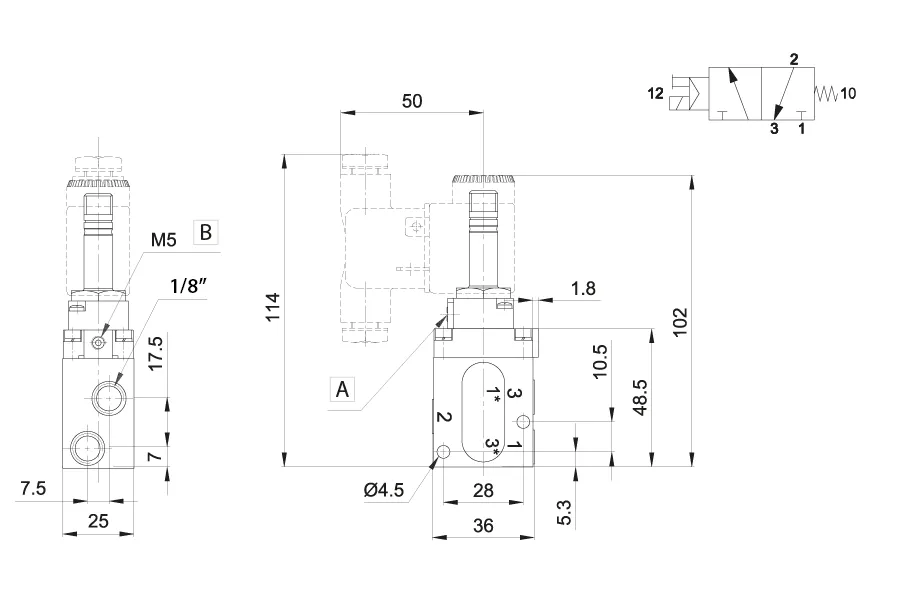

| UAF 25 00 N | UAF2500N | Request access | 3/2 | NC | 1/8 NPT | electric amplified | pneumatic + spring | 580 | .217 (5.5) | 15 | 20 | 22 (1.5) | 145 (10) | 0.55 (0.25) | U1 | ||
| UAF 25 10 N | UAF2510N | Request access | 3/2 | NC | 1/4 NPT | electric amplified | pneumatic + spring | 1100 | .315 (8) | 20 | 23 | 23 (1.6) | 145 (10) | 1.28 (0.58) | U1 | ||

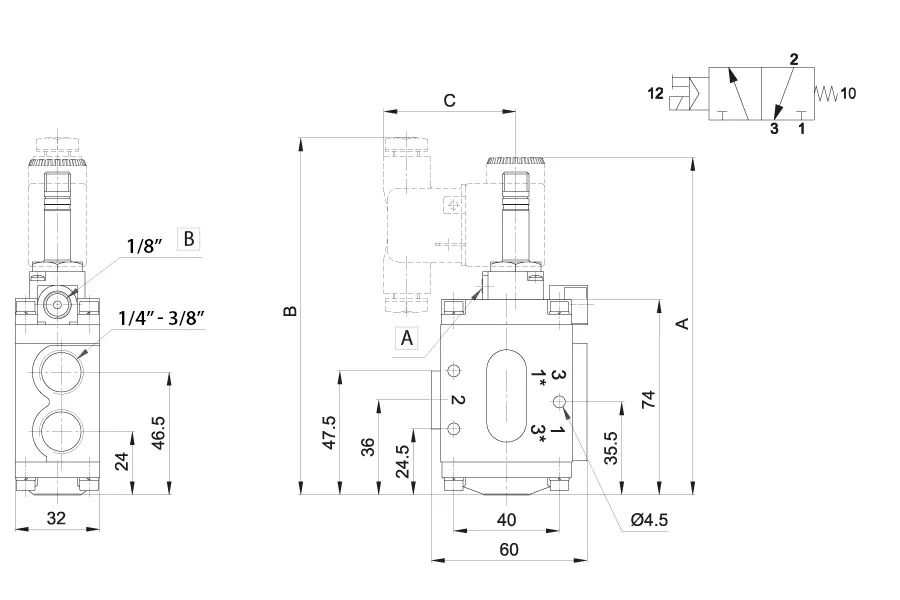

| UAF 25 20 N | UAF2520N | Request access | 3/2 | NC | 3/8 NPT | electric amplified | pneumatic + spring | 1500 | .394 (10) | 20 | 23 | 23 (1.6) | 145 (10) | 1.23 (0.56) | U1 | ||

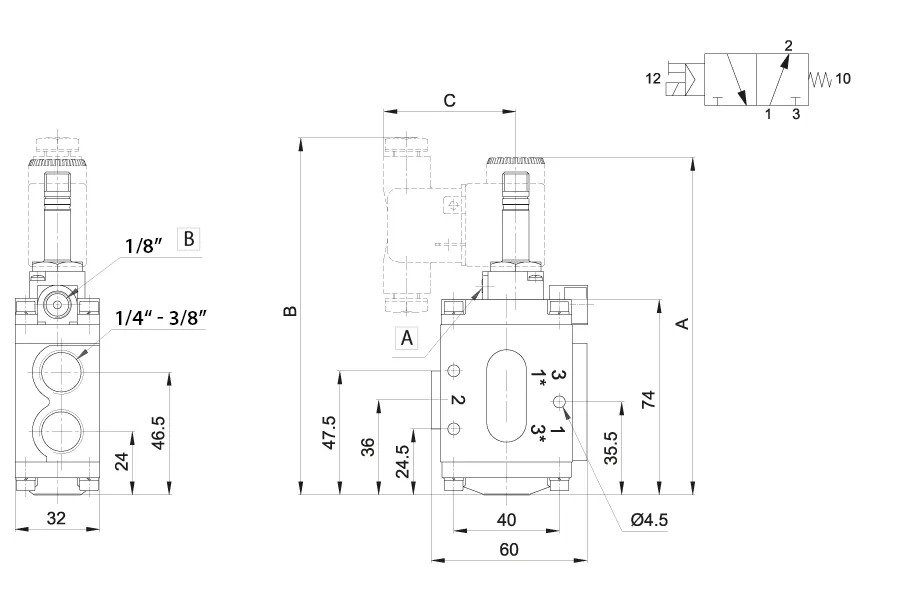

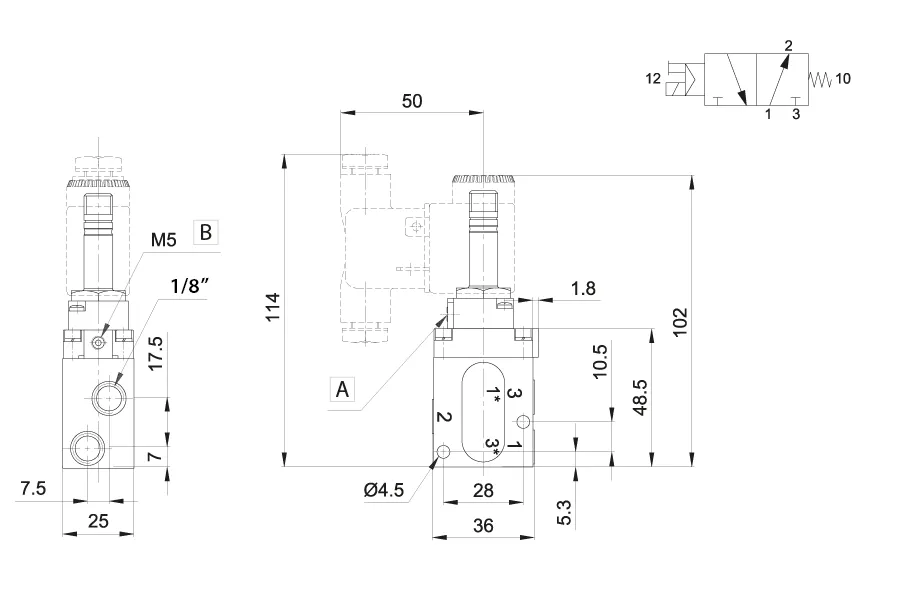

| UAF 25 01 N | UAF2501N | Request access | 3/2 | NO | 1/8 NPT | electric amplified | pneumatic + spring | 580 | .217 (5.5) | 15 | 20 | 22 (1.5) | 145 (10) | 0.55 (0.25) | U1 | ||
| UAF 25 11 N | UAF2511N | Request access | 3/2 | NO | 1/4 NPT | electric amplified | pneumatic + spring | 1100 | .315 (8) | 15 | 20 | 23 (1.6) | 145 (10) | 1.28 (0.58) | U1 | ||
| UAF 25 21 N | UAF2521N | Request access | 3/2 | NO | 3/8 NPT | electric amplified | pneumatic + spring | 1500 | .394 (10) | 15 | 20 | 23 (1.6) | 145 (10) | 1.23 (0.56) | U1 | ||

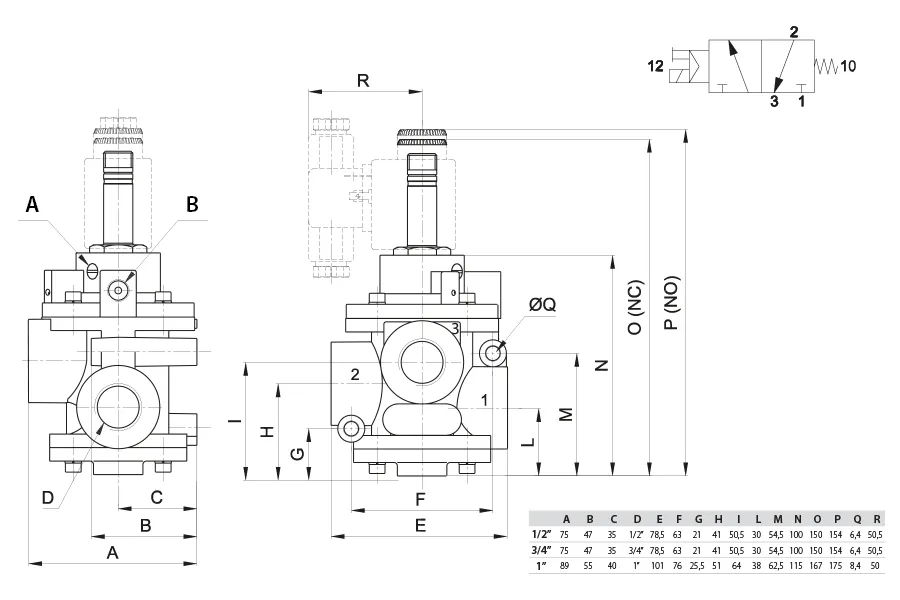

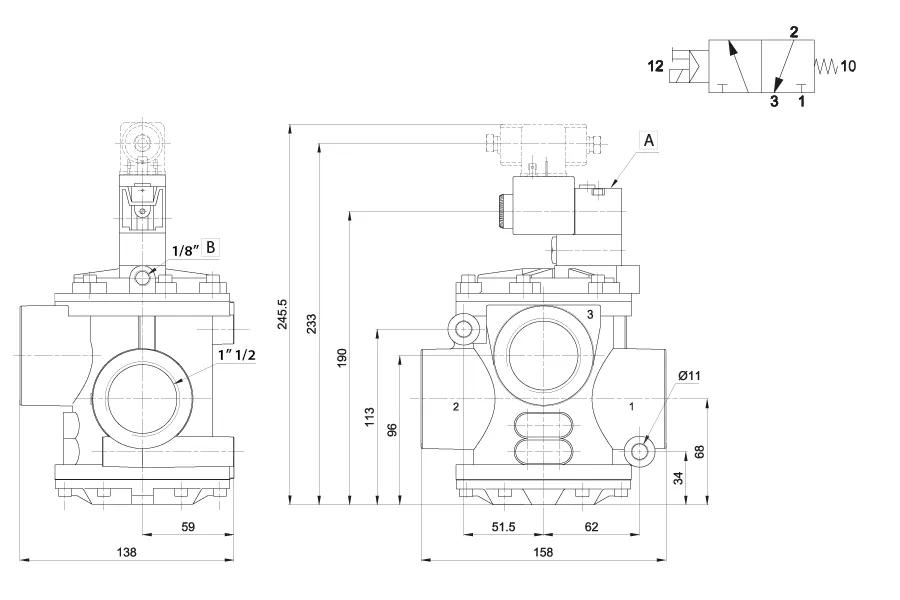

| UAF 25 30 N | UAF2530N | Request access | 3/2 | NC | 1/2 NPT | electric amplified | pneumatic + spring | 5400 | .591 (15) | 17 | 27 | 29 (2) | 145 (10) | 2.62 (1.19) | U2 | ||
| UAF 25 40 N | UAF2540N | Request access | 3/2 | NC | 3/4 NPT | electric amplified | pneumatic + spring | 6500 | .748 (19) | 17 | 27 | 29 (2) | 145 (10) | 2.49 (1.13) | U2 | ||
| UAF 25 45 N | UAF2545N | Request access | 3/2 | NC | 1 NPT | electric amplified | pneumatic + spring | 13500 | .984 (25) | 20 | 32 | 32 (2.2) | 145 (10) | 3.57 (1.62) | U2 | ||
| UAF 25 65 N | UAF2565N | Request access | 3/2 | NC | 1 1/2 NPT | electric amplified | pneumatic + spring | 35000 | 1.535 (39) | 47 | 22 | 36 (2.5) | 145 (10) | 5.00 (2.27) | U2 | ||

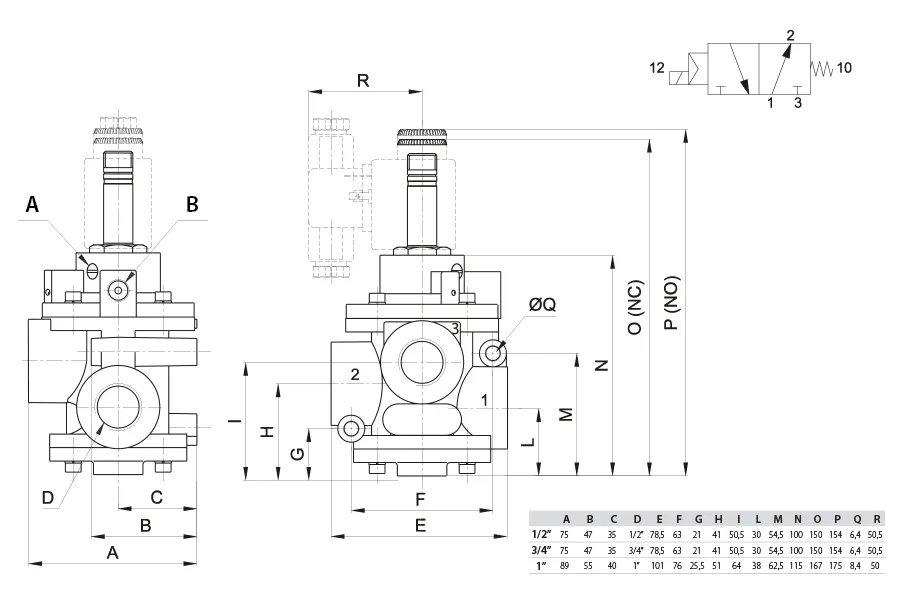

| UAF 25 31 N | UAF2531N | Request access | 3/2 | NO | 1/2 NPT | electric amplified | pneumatic + spring | 5400 | .591 (15) | 22 | 22 | 44 (3) | 145 (10) | 2.62 (1.19) | U2 | ||
| UAF 25 41 N | UAF2541N | Request access | 3/2 | NO | 3/4 NPT | electric amplified | pneumatic + spring | 6500 | .748 (19) | 22 | 22 | 44 (3) | 145 (10) | 2.49 (1.13) | U2 | ||
| UAF 25 46 N | UAF2546N | Request access | 3/2 | NO | 1 NPT | electric amplified | pneumatic + spring | 13500 | .984 (25) | 23 | 23 | 44 (3) | 145 (10) | 3.57 (1.62) | U2 | ||

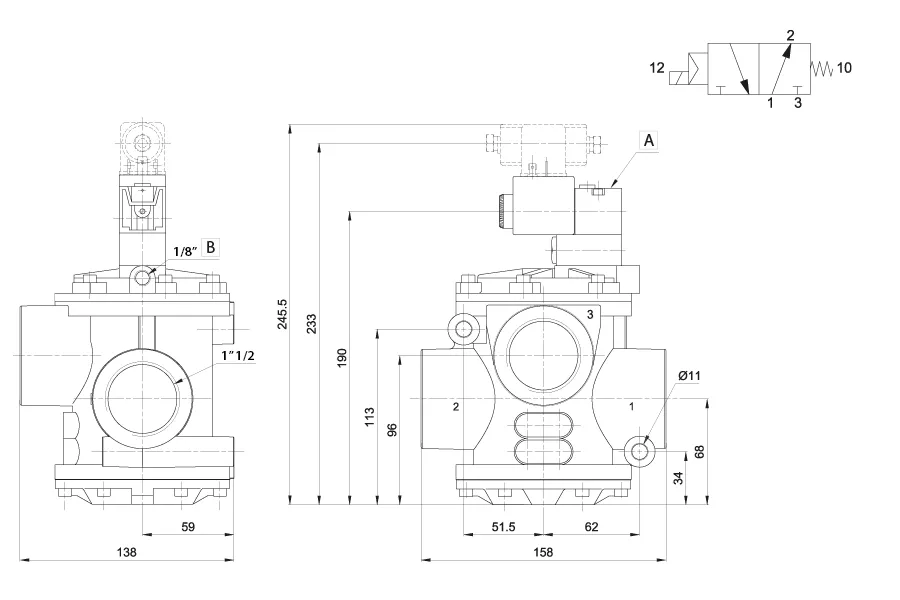

| UAF 25 61 N | UAF2561N | Request access | 3/2 | NO | 1 1/2 NPT | electric amplified | pneumatic + spring | 35000 | 1.535 (39) | 20 | 20 | 44 (3) | 145 (10) | 5.00 (2.27) | U2 |
