| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Flow rate Nl/min. | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Pressure psi (bar) supply | Pressure psi (bar) control | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

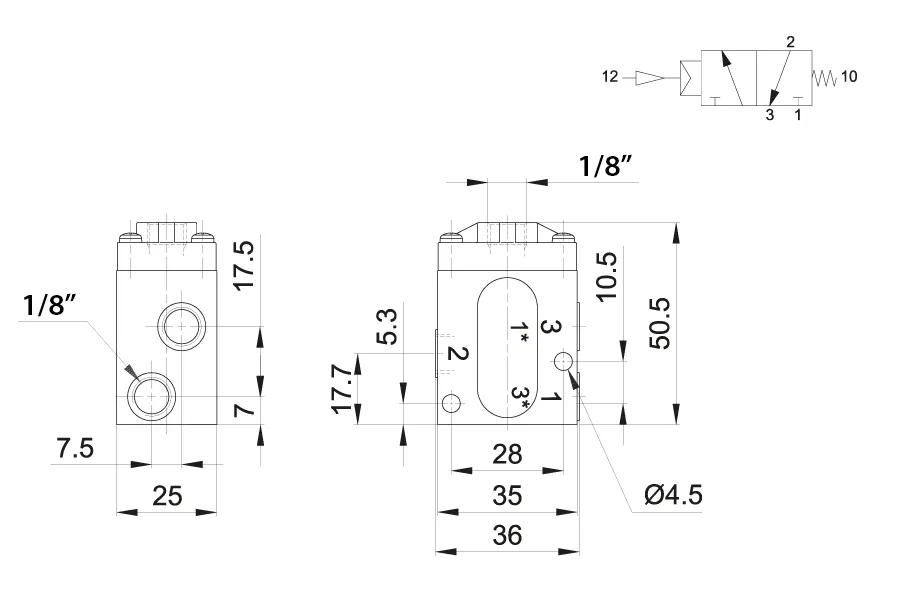

| UAF 26 00 N | UAF2600N | Request access | 3/2 | NC | 1/8 NPT | pneumatic amplified | pneumatic + spring | 580 | .217 (5.5) | 5 | 8 | 87 (6) | 51 (3.5) | 0.46 (0.21) | ||

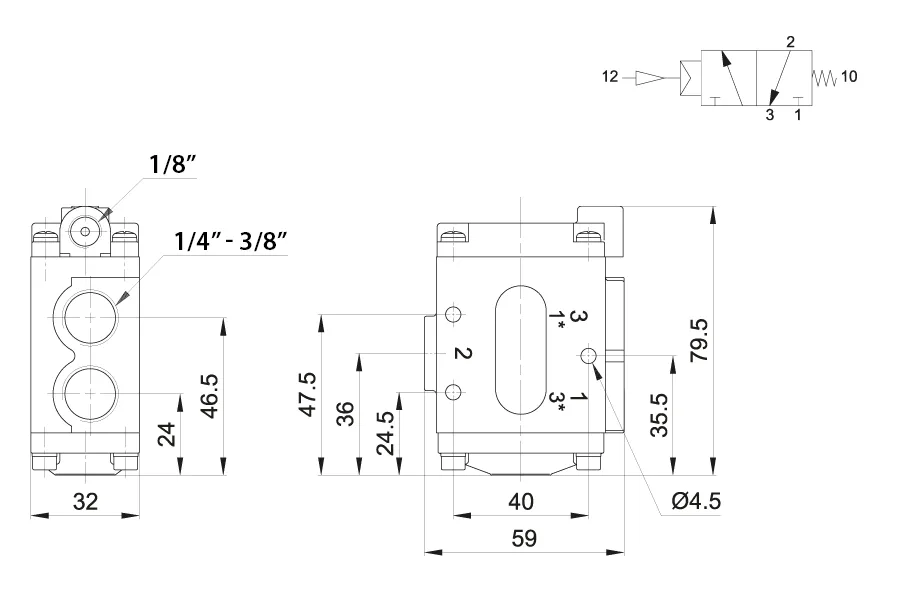

| UAF 26 01 N | UAF2601N | Request access | 3/2 | NC | 1/4 NPT | pneumatic amplified | pneumatic + spring | 1100 | .315 (8) | 5 | 7 | 87 (6) | 58 (4) | 1.19 (0.54) | ||
| UAF 26 06 N | UAF2606N | Request access | 3/2 | NC | 3/8 NPT | pneumatic amplified | pneumatic + spring | 1500 | .394 (10) | 5 | 7 | 87 (6) | 58 (4) | 1.15 (0.52) | ||
| UAF 27 00 N | UAF2700N | Request access | 3/2 | NO | 1/8 NPT | pneumatic amplified | pneumatic + spring | 580 | .217 (5.5) | 5 | 8 | 87 (6) | 51 (3.5) | 0.46 (0.21) | ||
| UAF 27 01 N | UAF2701N | Request access | 3/2 | NO | 1/4 NPT | pneumatic amplified | pneumatic + spring | 1100 | .315 (8) | 5 | 7 | 87 (6) | 58 (4) | 1.19 (0.54) | ||
| UAF 27 06 N | UAF2706N | Request access | 3/2 | NO | 3/8 NPT | pneumatic amplified | pneumatic + spring | 1500 | .394 (10) | 5 | 7 | 87 (6) | 58 (4) | 1.15 (0.52) | ||

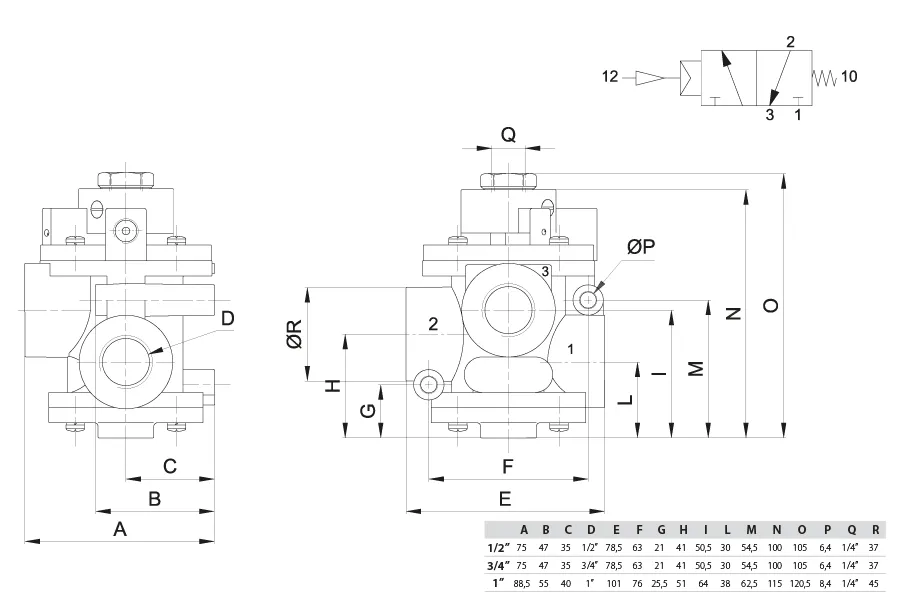

| UAF 26 03 N | UAF2603N | Request access | 3/2 | NC | 1/2 NPT | pneumatic amplified | pneumatic + spring | 5400 | .591 (15) | 7 | 10 | 87 (6) | 58 (4) | 2.80 (1.27) | ||
| UAF 26 10 N | UAF2610N | Request access | 3/2 | NC | 3/4 NPT | pneumatic amplified | pneumatic + spring | 6500 | .748 (19) | 7 | 10 | 87 (6) | 58 (4) | 2.43 (1.10) | ||

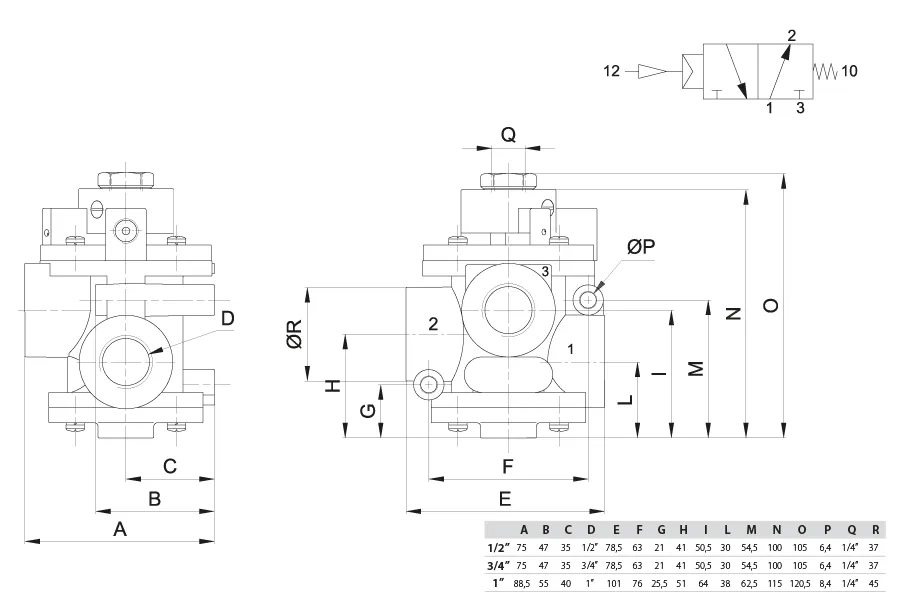

| UAF 26 15 N | UAF2615N | Request access | 3/2 | NO | 1 NPT | pneumatic amplified | pneumatic + spring | 13500 | .984 (25) | 10 | 12 | 87 (6) | 58 (4) | 3.51 (1.59) | ||

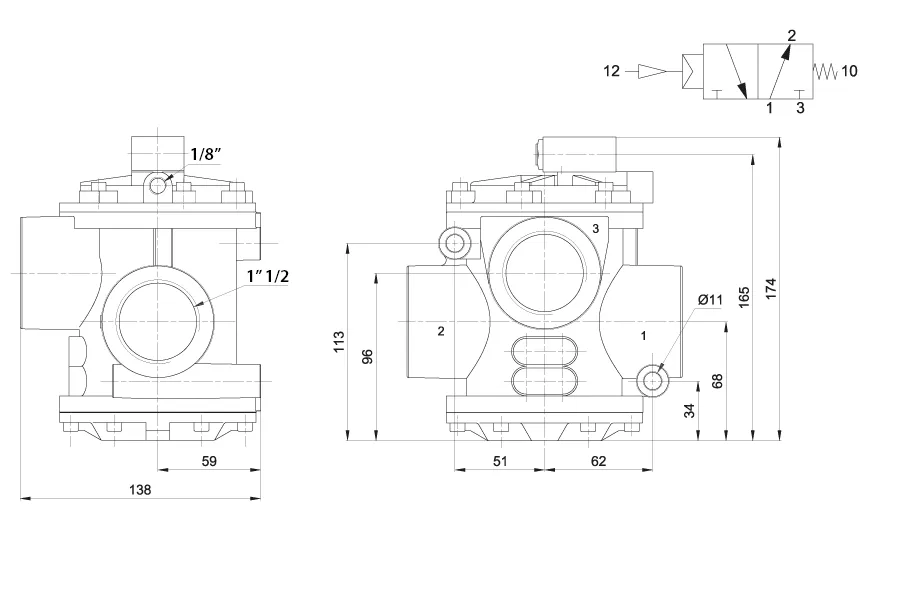

| UAF 26 20 N | UAF2620N | Request access | 3/2 | NO | 1 1/2 NPT | pneumatic amplified | pneumatic + spring | 35000 | 1.535 (39) | 36 | 15 | 87 (6) | 58 (4) | 4.83 (2.19) |
