| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Size | Control 12 | Return 10 | Flow rate Nl/min. | Ø inch (mm) | Response Time (ms) En. | Response Time (ms) De-en. | Pressure psi (bar) supply | Pressure psi (bar) control | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

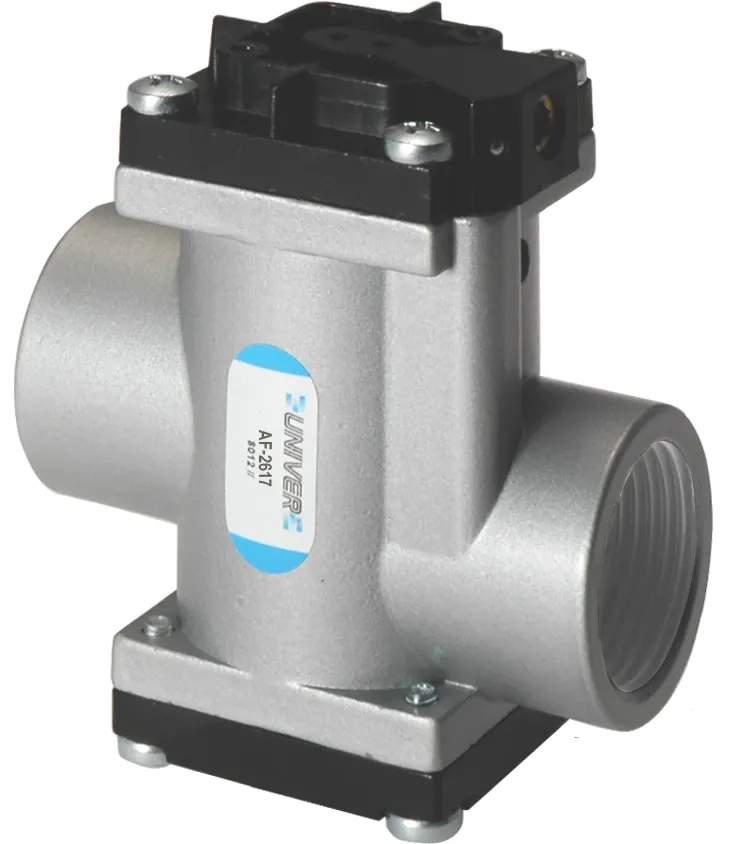

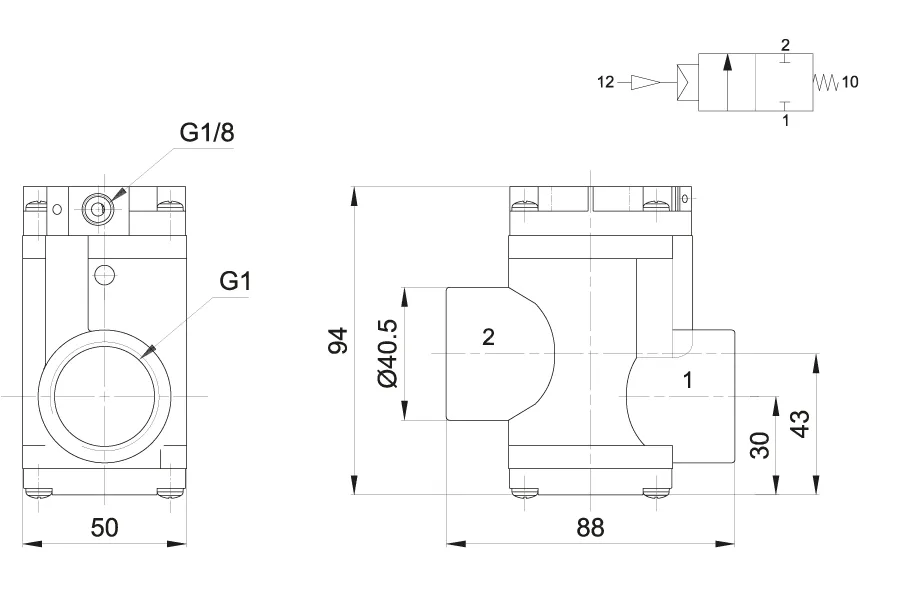

| UAF 26 17 | UAF2617 | Request access | 2/2 | NC | G 1 | pneumatic amplified | pneumatic + spring | 1600 | .984 (25) | 12 | 25 | 87 (6) | 58 (4) | 2.20 (1) |
