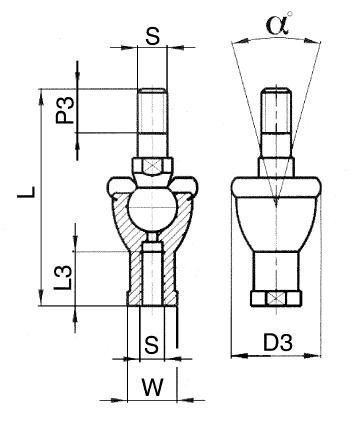

| Code | USA Ref | 3D Drawings | S | L | L3 | W | P3 | D3 | a° | Radial Load (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TS 040 | TS040 | Request access | M12X1,25 | 3.307 (84) | 0.787 (20) | 0.748 (19) | 0.669 (17) | 1.260 (32) | 30° | 6,7 | |
| TS 050 | TS050 | Request access | M16X1,5 | 4.409 (112) | 1.063 (27) | 0.866 (22) | 0.906 (23) | 1.575 (40) | 22° | 7,8 | |
| TS 080 | TS080 | Request access | M20X1,5 | 5.236 (133) | 1.496 (38) | 1.181 (30) | 0.984 (25) | 1.772 (45) | 15° | 10 |
