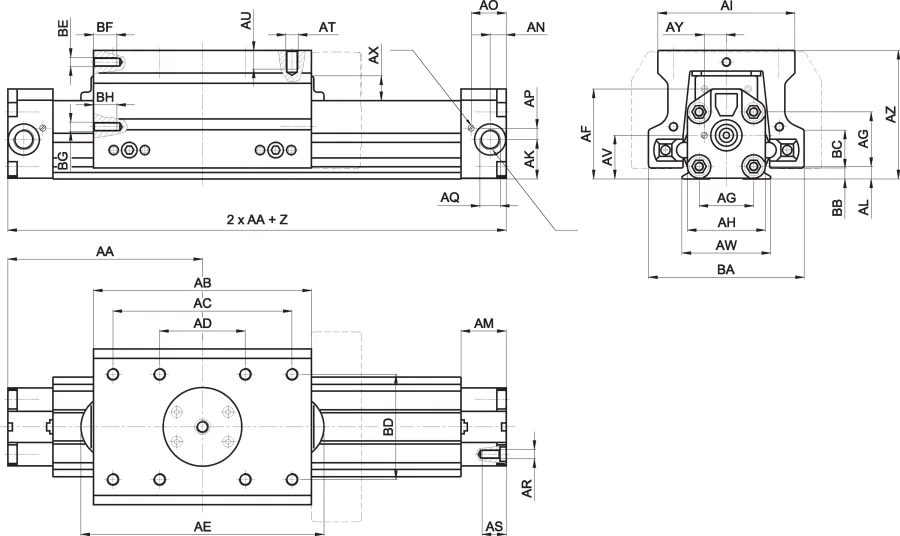

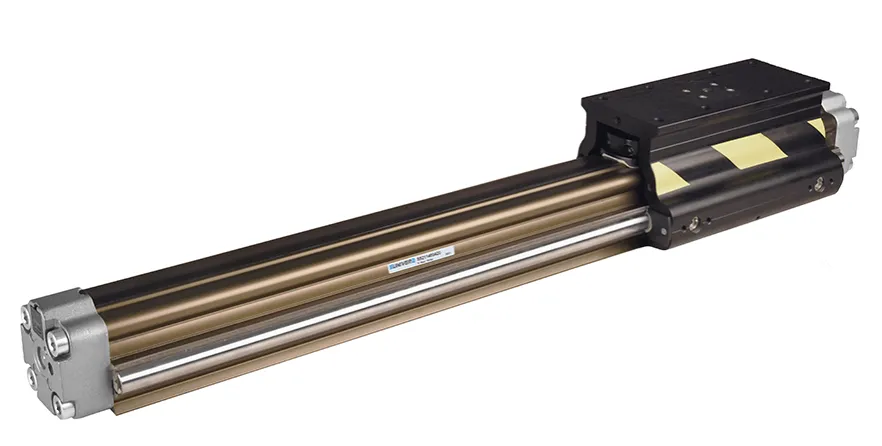

RODLESS CYLINDER WITH INTEGRATED GUIDES MEDIUM CARRIAGE - Bore from 40 to 50

	Code	USA Ref	3D Drawings	Bore mm	Stroke mm	CA mm	CB mm	CC mm	CD mm	CE mm	AF mm	AG mm	AH mm	AI mm	AK mm	AL mm	AM mm	AN mm	AO mm	AP mm	AQ	AR	AS mm	AT	AU mm	AV mm	AW mm	AX mm	AY mm	AZ mm	BA mm	BB mm	BC mm	BD mm	BE mm	BF	BG	BH mm	*
	US5 2 0 1 40 0000	US5201406000	Request access	40	From 100 to 6000	169	205	180	75	215	44	64	90	100	33.8	11.8	33	12.5	26.5	8.7	G3/8	M8	20	M8	14	37	67	19.5	16.5	106.6	135	7	39	65	15	M6	M6	15	The catalogue shows all the available versions.
	US5 2 0 1 50 0000	US5201506000	Request access	50	From 100 to 6000	205	258	190	80	271	55	80	100	100	41.4	14.7	33	14.2	25.7	11.8	G3/8	M10	20	M8	16	47.7	86	20.5	19.1	123.7	149	7.2	41	76.5	16	M8	M6	15	The catalogue shows all the available versions.
