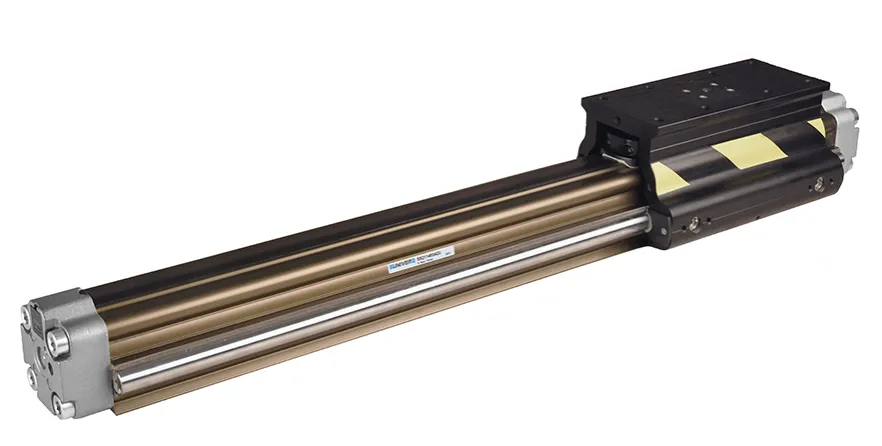

RODLESS CYLINDER WITH INTEGRATED GUIDES AND STANDARD CARRIAGE - Bore from 25 to 32

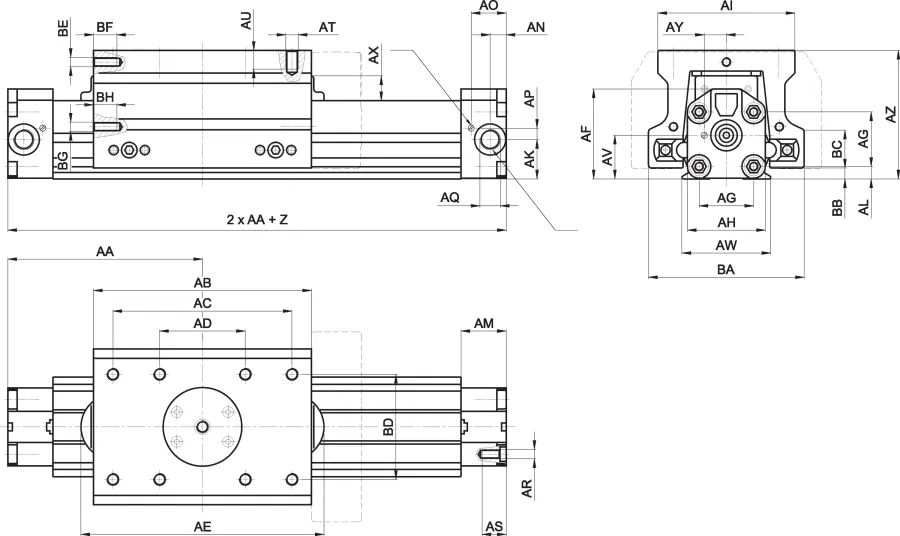

	Code	USA Ref	3D Drawings	Bore mm	Stroke mm	AA mm	AB mm	AC mm	AD mm	AE mm	AF mm	AG mm	AH mm	AI mm	AK mm	AL mm	AM mm	AN mm	AO mm	AP mm	AQ	AR	AS mm	AT	AU mm	AV mm	AW mm	AX mm	AY mm	AZ mm	BA mm	BB mm	BC mm	BD mm	BE mm	BF	BG	BH mm	*
	US5 0 0 1 25 6000	US5001256000	Request access	25	From 100 to 6000	100	106	90	50	130	48.3	28	40.5	70	20.2	7	24	7.4	18.2	5.7	G1/8	M5	12	M6	10	22.8	42.8	16	12.2	71.8	85	5.7	24	50	15	M6	M6	15	The catalogue shows all the available versions.
	US5 0 0 1 32 6000	US5001326000	Request access	32	From 100 to 6000	125	140	115	55	156	57	35	50	88	25.3	8	29	10.3	22.5	7.3	G1/4	M6	15.5	M6	12	28	57	16	14.2	82.5	100	7	24.5	67.5	15	M6	M6	15	The catalogue shows all the available versions.
