USF 12

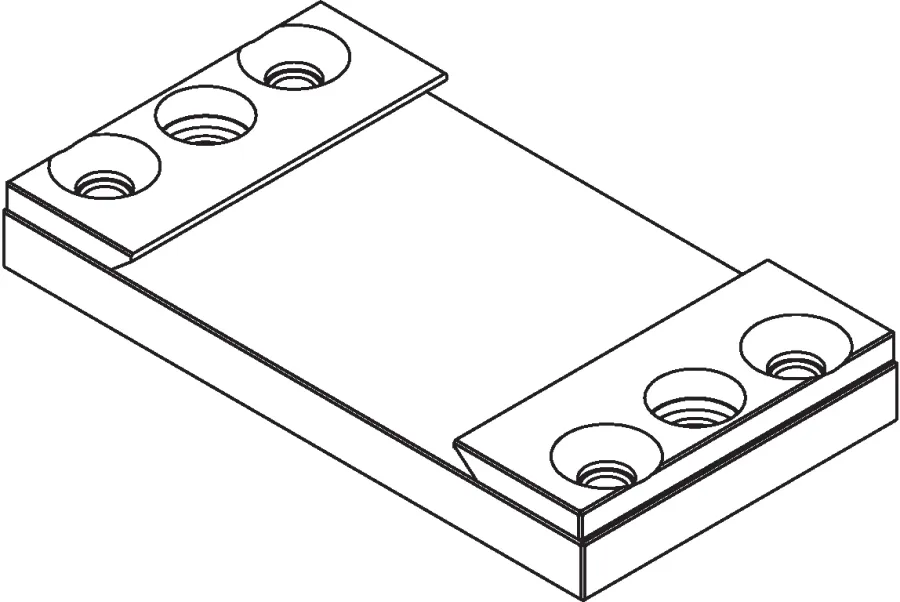

FIXING PLATE

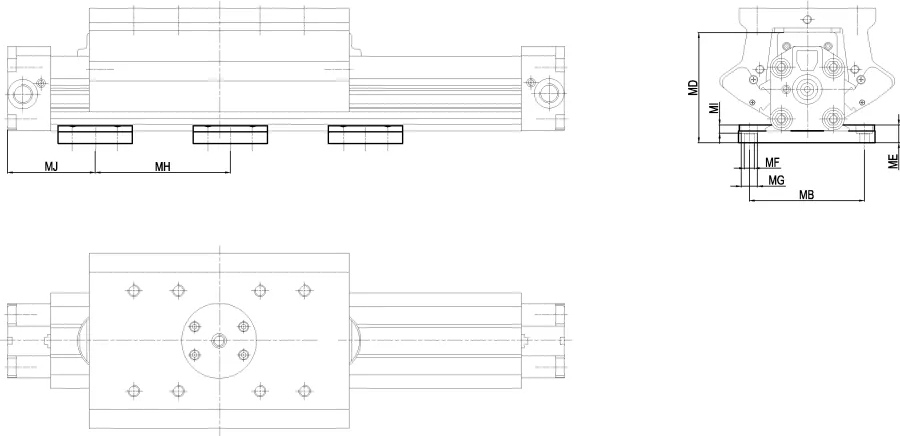

FIXING PLATE - Drawing

FIXING PLATE

	Code	USA Ref	3D Drawings	Ø mm	MA mm	MB mm	MC mm	MD mm	ME mm	MF	MG mm	MH mm	MI mm	MJ mm	ML mm	MM mm	MN	Weight g
	USF 12 025	USF12025	Request access	25	78,5	63,5	50	79,8	12	M8	11	500	6,5	55	65,5	30	M6	310
	USF 12 032	USF12032	Request access	32	92	77,5	50	90,5	12	M8	11	600	8,5	60	79,5	30	M6	340
	USF 12 040	USF12040	Request access	40	117	96	60	116,6	15	M10	14	700	8	70	96	37,5	M8	660
	USF 12 050	USF12050	Request access	50	136	115	60	133,7	15	M10	14	800	8	70	115	37,5	M8	700
