USF 13

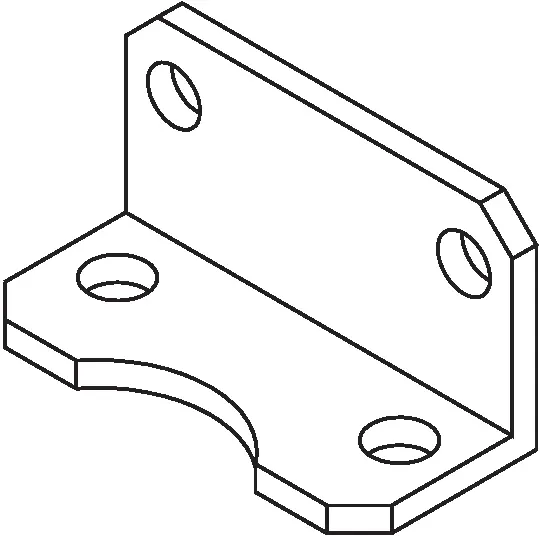

ANGLE FOOT BRACKET

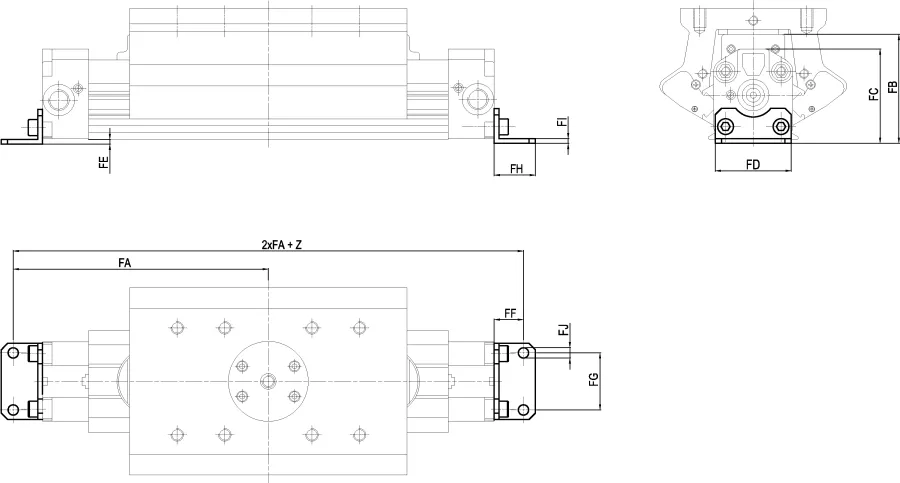

ANGLE FOOT BRACKET - Drawing

ANGLE FOOT BRACKET

	Code	USA Ref	3D Drawings	Ø mm	FA mm	FB mm	FC mm	FD mm	FE mm	FF mm	FG mm	FH mm	FI mm	FJ mm	Weight g
	USF 13 025	USF13025	Request access	25	116	58,1	48,8	40	0,5	16	27	22	2,5	5,5	34
	USF 13 032	USF13032	Request access	32	143,5	68,7	59,2	48	2,5	18,5	36	26	3	6,5	53
