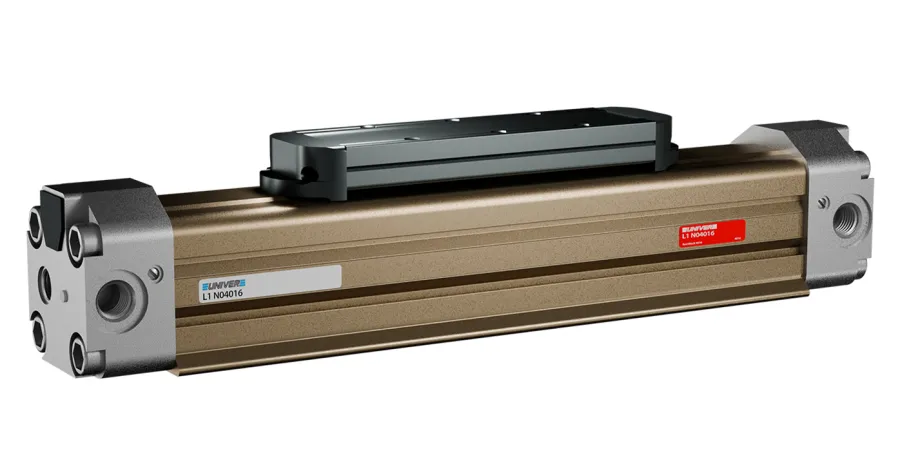

RODLESS CYLINDER STANDARD CARRIAGE - Bore FROM 25 TO 50

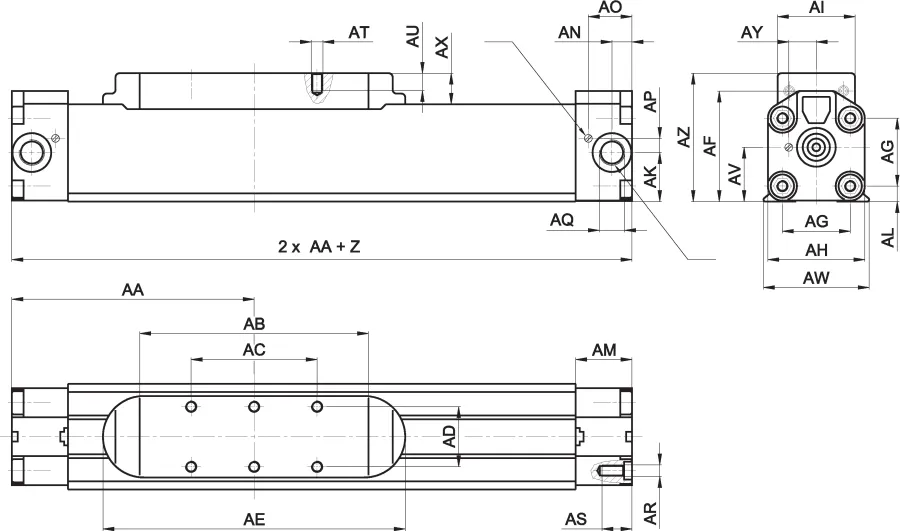

Code	USA Ref	3D Drawings	Bore mm	Stroke mm	AA mm	AB mm	AC mm	AD mm	AE mm	AF mm	AG mm	AH mm	AI mm	AK mm	AK1 mm	AL mm	AM mm	AN mm	AO mm	AP mm	AQ	AR	AS mm	AT	AU mm	AV mm	AW mm	AX mm	AY mm	AZ mm	*
US1 0 1 1 25 6000	US101256000	Request access	25	From 100 to 6000	100	95	50	24	130	48.3	28	40.5	33	20.2	-	7	24	7.4	18.2	5.7	G1/8	M5	12	M5	9	22.8	42.8	16	12.2	57.6	The catalogue shows all the available versions
US1 0 1 1 32 6000	US101326000	Request access	32	From 100 to 6000	125	118	65	31	156	57	35	50	40	25.3	-	8	29	10.3	22.5	7.3	G1/4	M6	15.5	M6	9	28	54.5	16	14.2	66.2	The catalogue shows all the available versions
US1 0 1 1 40 6000	US101406000	Request access	40	From 100 to 6000	150	134	65	31	177	74	44	64	44	33.8	-	11.8	33	12.5	26.5	8.7	G3/8	M8	20	M6	11	37	67	19.5	16.5	85.8	The catalogue shows all the available versions
US1 0 1 1 50 6000	US101506000	Request access	50	From 100 to 6000	175	164	105	39	211	90.7	55	80	54	41.4	-	14.7	33	14.2	25.7	11.8	G3/8	M10	20	M8	12	47.7	86	20.5	19.1	103	The catalogue shows all the available versions
