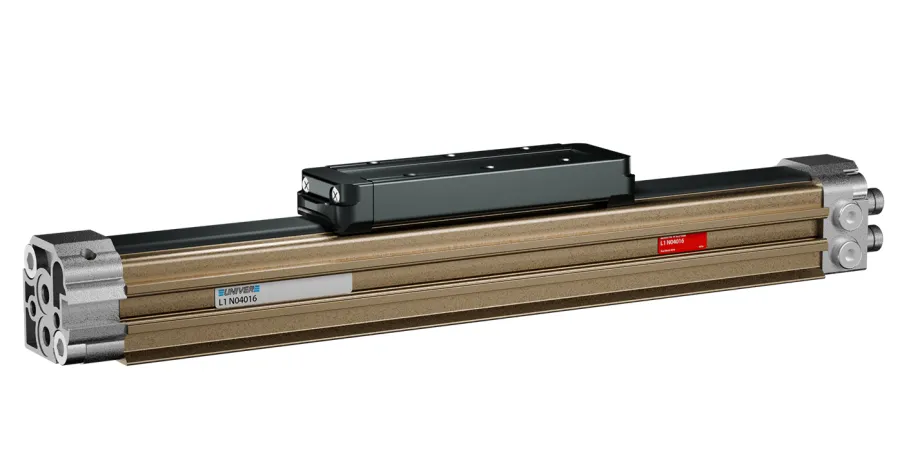

RODLESS CYLINDER STANDARD CARRIAGE - Bore 16

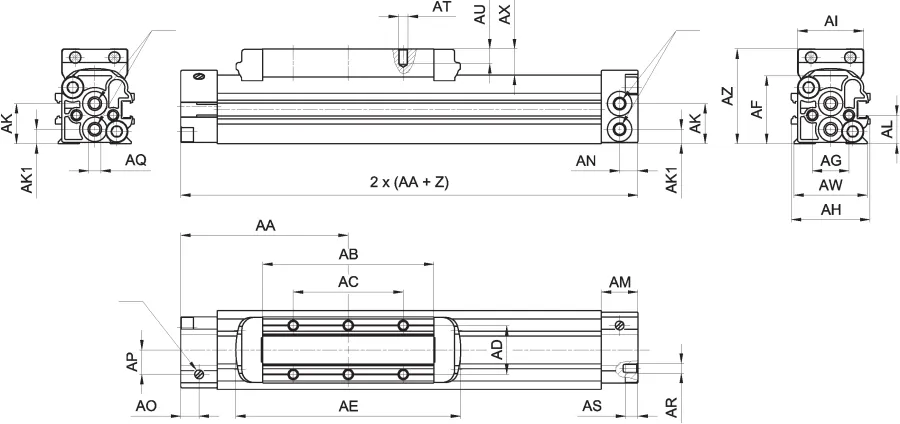

	Code	USA Ref	3D Drawings	Bore mm	Stroke mm	AA mm	AB mm	AC mm	AD mm	AE mm	AF mm	AG mm	AH mm	AI mm	AK mm	AK1 mm	AL mm	AM mm	AN mm	AO mm	AP mm	AQ	AR	AS mm	AT	AU mm	AV	AW mm	AX mm	AY	AZ mm	*
	US1 0 0 4 16 5000	US1004165000	Request access	16	From 100 to 5000	68.5	70	45	20	92	30	18	32	27	16.5	6	11.5	15	7.5	7.5	10	M5	M4	5	M4	6	-	30	11	-	39	The catalogue shows all the available versions
