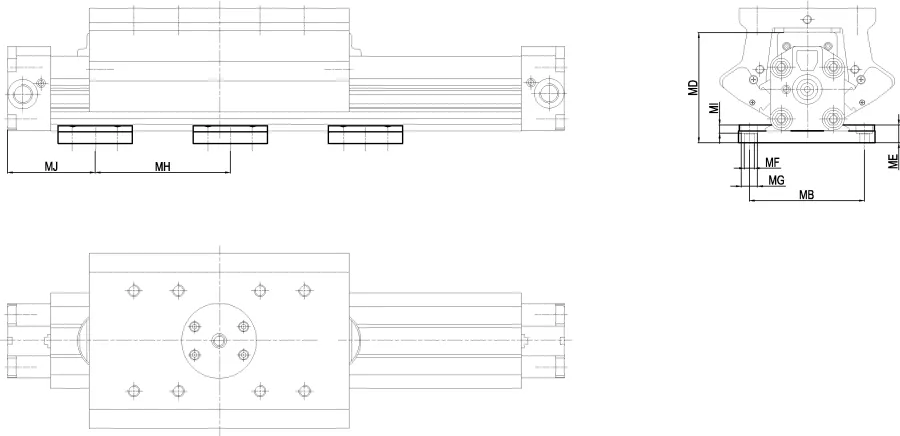

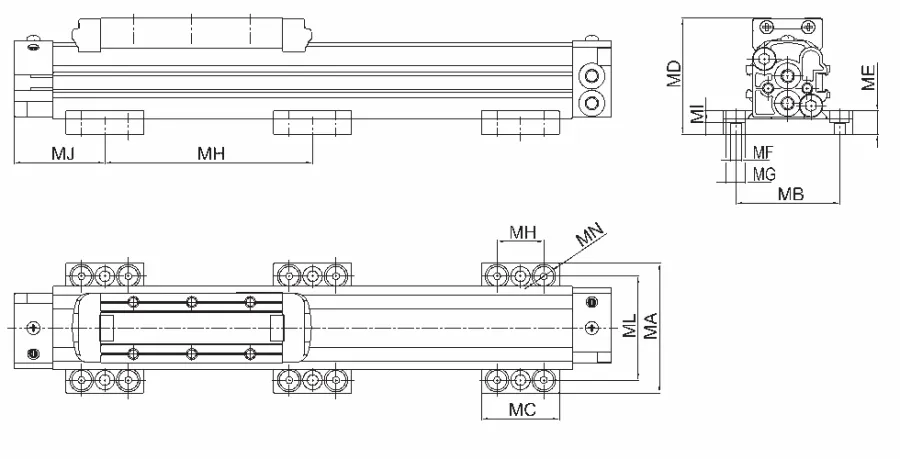

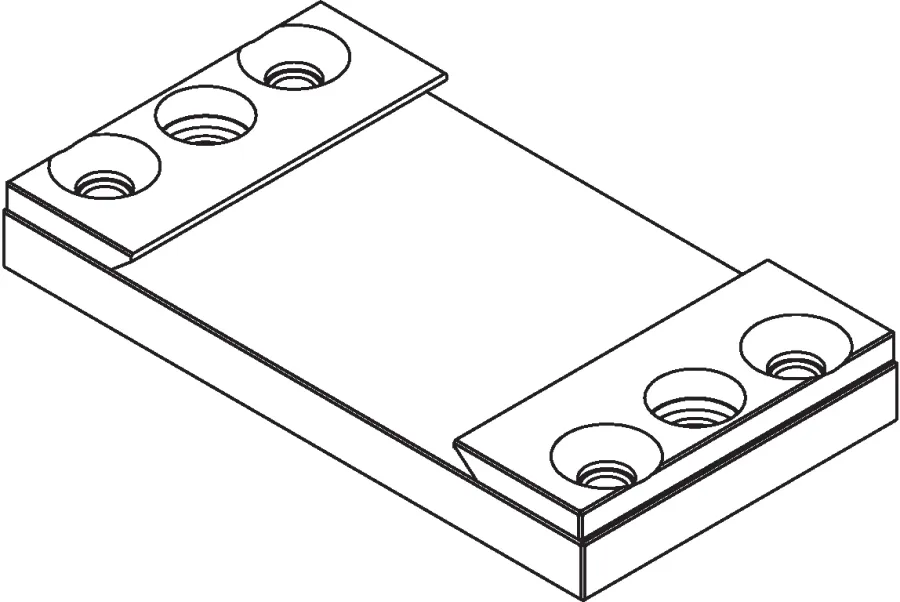

FIXING PLATE

Code	USA Ref	3D Drawings	Ø mm	MA mm	MB mm	MC mm	MD mm	ME mm	MF	MG mm	MH mm	MI mm	MJ mm	ML mm	MM mm	MN	Weight g
USF 12 016	USF12016	Request access	16	50	40	30	44,8	9	M5	8	400	4,5	35	40	-	M6	83
USF 12 025	USF12025	Request access	25	78,5	63,5	50	65,6	12	M8	11	500	6,5	55	65,5	30	M6	310
USF 12 032	USF12032	Request access	32	92	77,5	50	74,2	12	M8	11	600	8,5	60	79,5	30	M6	340
USF 12 040	USF12040	Request access	40	117	96	60	95,8	15	M10	14	700	8	70	96	37,5	M8	660
USF 12 050	USF12050	Request access	50	136	115	60	113	15	M10	14	800	8	70	115	37,5	M8	700
