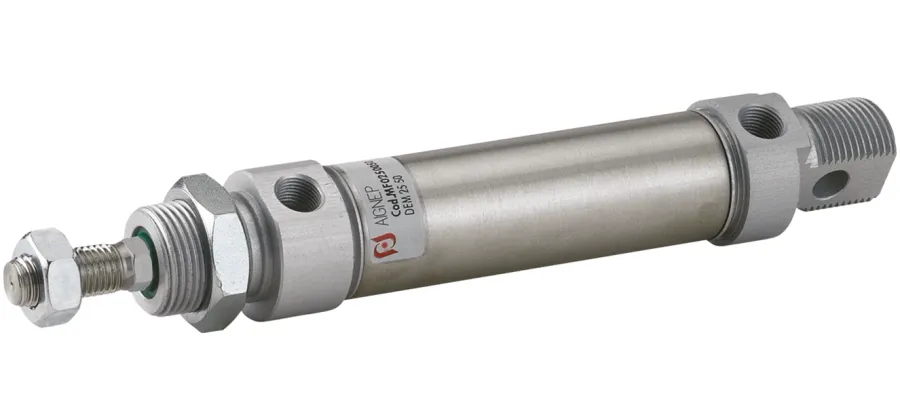

DOUBLE ACTING MAGNETIC HEXAGONAL ANTI-ROTATION

Code	USA Ref	3D Drawings	Ø mm	Stroke mm	B	S	ØC	D	ØD1	D3	ØE	EE	F	G	G1	G3	K	KK	L	N	P
MFA 016 0010	MF0160010	Request access	16	10	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0025	MF0160025	Request access	16	25	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0040	MF0160040	Request access	16	40	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0050	MF0160050	Request access	16	50	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0080	MF0160080	Request access	16	80	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0100	MF0160100	Request access	16	100	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0125	MF0160125	Request access	16	125	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0160	MF0160160	Request access	16	160	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0200	MF0160200	Request access	16	200	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 016 0250	MF0160250	Request access	16	250	M6x1,5	6	19	12	17,27	18	6	M5	16	82	93	53	2	M6x1	18	9	4,5
MFA 020 0010	MF0200010	Request access	20	10	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0025	MF0200025	Request access	20	25	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0040	MF0200040	Request access	20	40	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0050	MF0200050	Request access	20	50	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0080	MF0200080	Request access	20	80	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0100	MF0200100	Request access	20	100	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0125	MF0200125	Request access	20	125	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0160	MF0200160	Request access	20	160	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0200	MF0200200	Request access	20	200	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0250	MF0200250	Request access	20	250	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 020 0320	MF0200320	Request access	20	320	M22x1,5	8	27	16	21,27	25,5	8	1/8"G	20	95	111	67	24	M8x1,25	20	12	8
MFA 025 0010	MF0250010	Request access	25	10	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0025	MF0250025	Request access	25	25	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0040	MF0250040	Request access	25	40	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0050	MF0250050	Request access	25	50	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0080	MF0250080	Request access	25	80	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0100	MF0250100	Request access	25	100	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0125	MF0250125	Request access	25	125	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0160	MF0250160	Request access	25	160	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0200	MF0250200	Request access	25	200	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0250	MF0250250	Request access	25	250	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
MFA 025 0320	MF0250320	Request access	25	320	M22x1,5	10	30	16	26,5	28,5	8	1/8"G	22	104	118	68	28	M10x1,25	22	12	8
