LHT

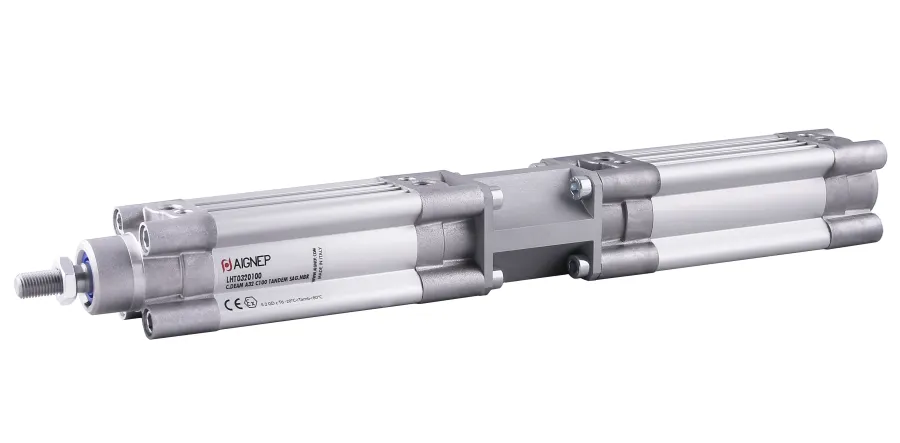

TANDEM DOUBLE-ACTING MAGNETIC

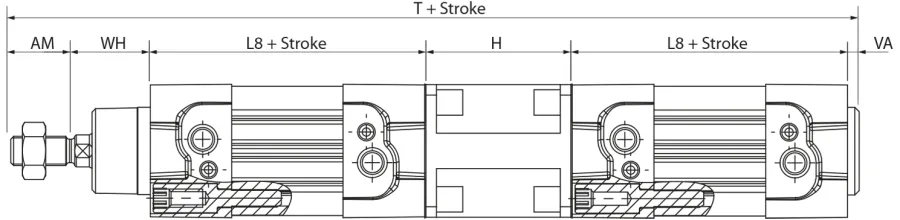

TANDEM DOUBLE-ACTING MAGNETIC - Drawing

TANDEM DOUBLE-ACTING MAGNETIC

For further information please contact our tecnichal departement.

	Code	USA Ref	3D Drawings	Ø mm	VA mm	WH mm	AM mm	L8 mm	H mm	T mm
	LHT 032	LHT032	Request access	32	4	26	22	94	55	295
	LHT 040	LHT040	Request access	40	4	30	24	105	55	323
	LHT 050	LHT050	Request access	50	4	37	32	106	68	353
	LHT 063	LHT063	Request access	63	4	37	32	121	68	383
	LHT 080	LHT080	Request access	80	4	46	40	128	92	438
	LHT 100	LHT100	Request access	100	4	51,5	40	138	92	463,5
	LHT 125	LHT125	Request access	125	6	65	54	160	120	565
