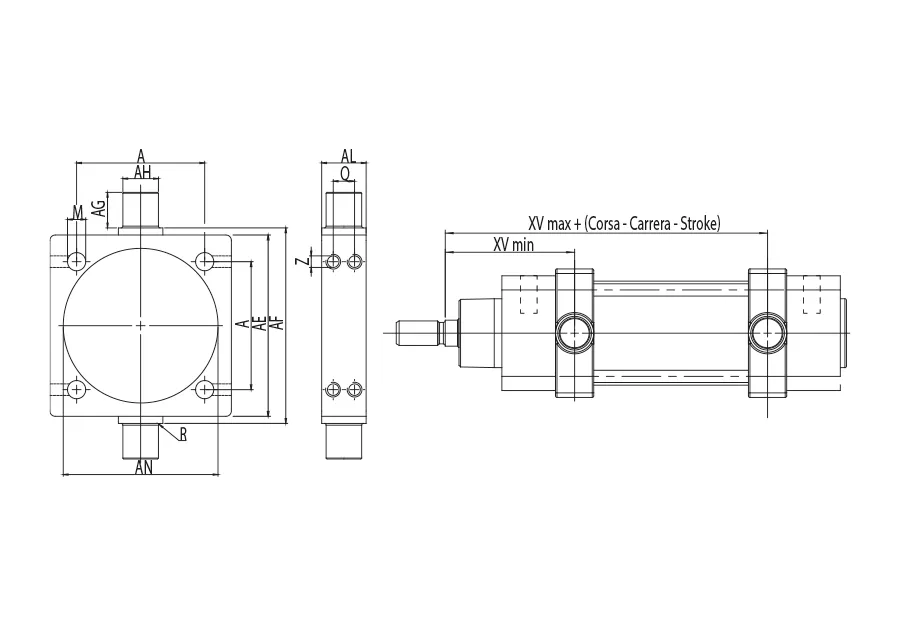

INTERMEDIATE HINGE FOR SMOOTH TIE-RODS - STEEL - ONLY FOR EH-T/EL-T

prodotto___eiso6431_vcnl_iso15552-d

prodotto___eiso6431_vcnl_iso15552-f

	Code	USA Ref	3D Drawings	Ø mm	A mm	AE mm	AL mm	AH mm	AG mm	AF mm	AN mm	R mm	M mm	Q mm	Z	XV min mm	XV max mm
	VCNL 160	VCNL160	Request access	160	140	190	40	32	32	200	171	2.5	16.25	18	M12	149	191
	VCNL 200	VCNL200	Request access	200	175	240	40	32	32	250	211	2.5	16.25	18	M12	164	206
