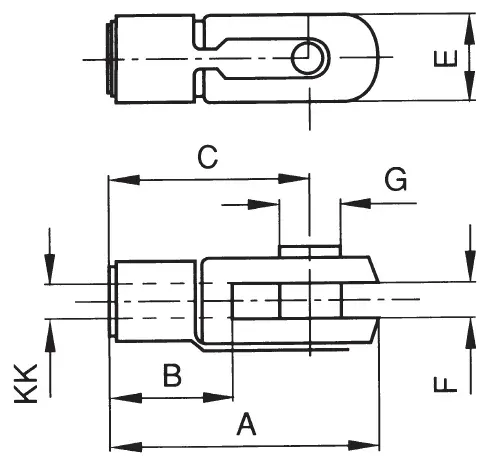

Code | USA Ref | 3D Drawings | KK | A mm | B mm | C mm | E mm | F mm | G mm | * | |
---|---|---|---|---|---|---|---|---|---|---|---|
FCI 020 | FCI020 | Request access | M8X1,25 | 42 | 16 | 32 | 16 | 8 | 8 | With pin and seeger | |
FCI 025 | FCI025 | Request access | M10X1,25 | 52 | 20 | 40 | 20 | 10 | 10 | With pin and seeger | |
FCI 040 | FCI040 | Request access | M12X1,25 | 62 | 24 | 48 | 24 | 12 | 12 | With pin and seeger | |
FCI 050 | FCI050 | Request access | M16X1,5 | 83 | 32 | 64 | 32 | 16 | 16 | With pin and seeger | |
FCI 080 | FCI080 | Request access | M20X1,5 | 105 | 40 | 80 | 40 | 20 | 20 | With pin and seeger | |
FCI 125 | FCI125 | Request access | M27X2 | 148 | 56 | 110 | 55 | 30 | 30 | With pin and seeger | |
FCI 160 | FCI160 | Request access | M36X2 | 188 | 72 | 144 | 70 | 35 | 35 | With pin and seeger |
