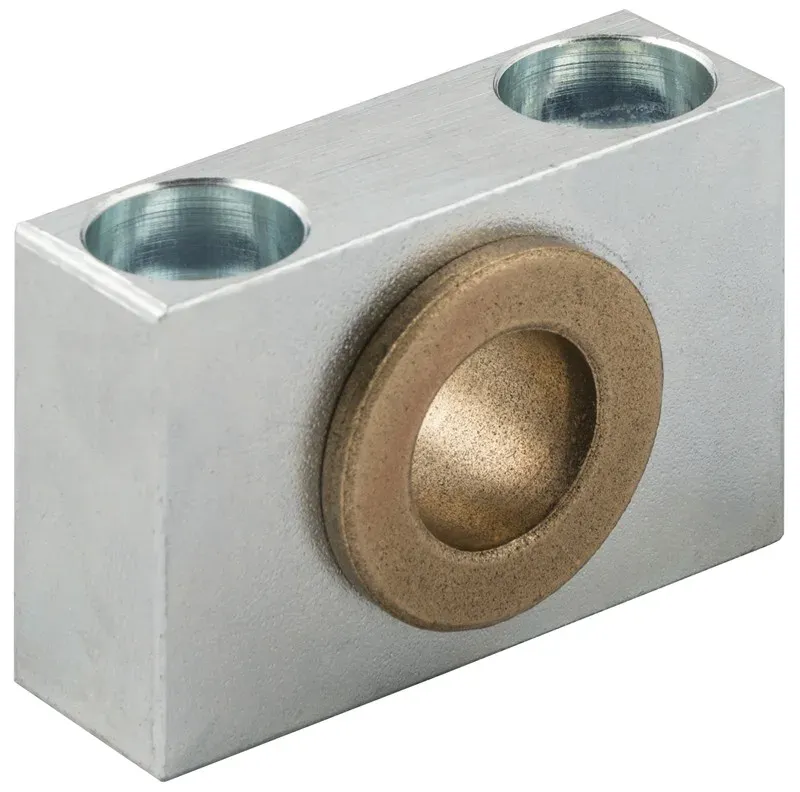

SUPPORT FOR INTERMEDIATE HINGE - STEEL

prodotto___accessoricilindri_vsi_iso15552-d

prodotto___accessoricilindri_vsi_iso15552-f

Suggested for VCNT - XCN - VCNL - LCN

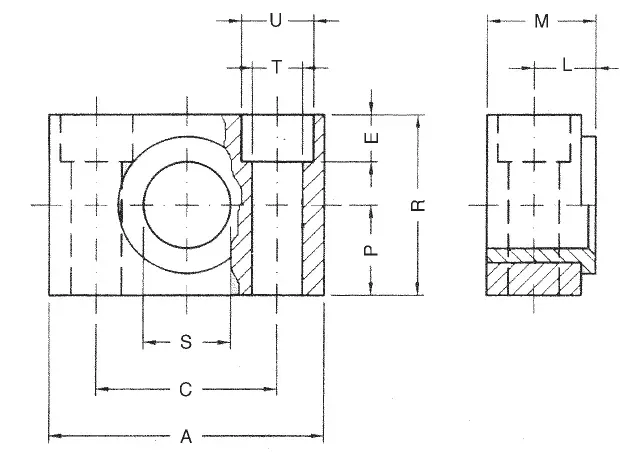

	Code	USA Ref	3D Drawings	Ø mm	A mm	M mm	R mm	P mm	C mm	S mm	L mm	U mm	T mm	E mm
	VSI 032	VSI032	Request access	32	46	18	30	15	32	12	10.5	11	6,6	7
	VSI 040	VSI040	Request access	40 - 50	55	21	36	18	36	16	12	15	9	9
	VSI 063	VSI063	Request access	63 - 80	65	23	40	20	42	20	13	18	11	11
	VSI 100	VSI100	Request access	100 - 125	75	28,5	50	25	50	25	16	20	14	13
	VSI 160	VSI160	Request access	160 - 200	92	40	60	30	60	32	22,5	26	18	17
	VSI 250	VSI250	Request access	250	140	56	70	35	90	40	31	33	22	20
