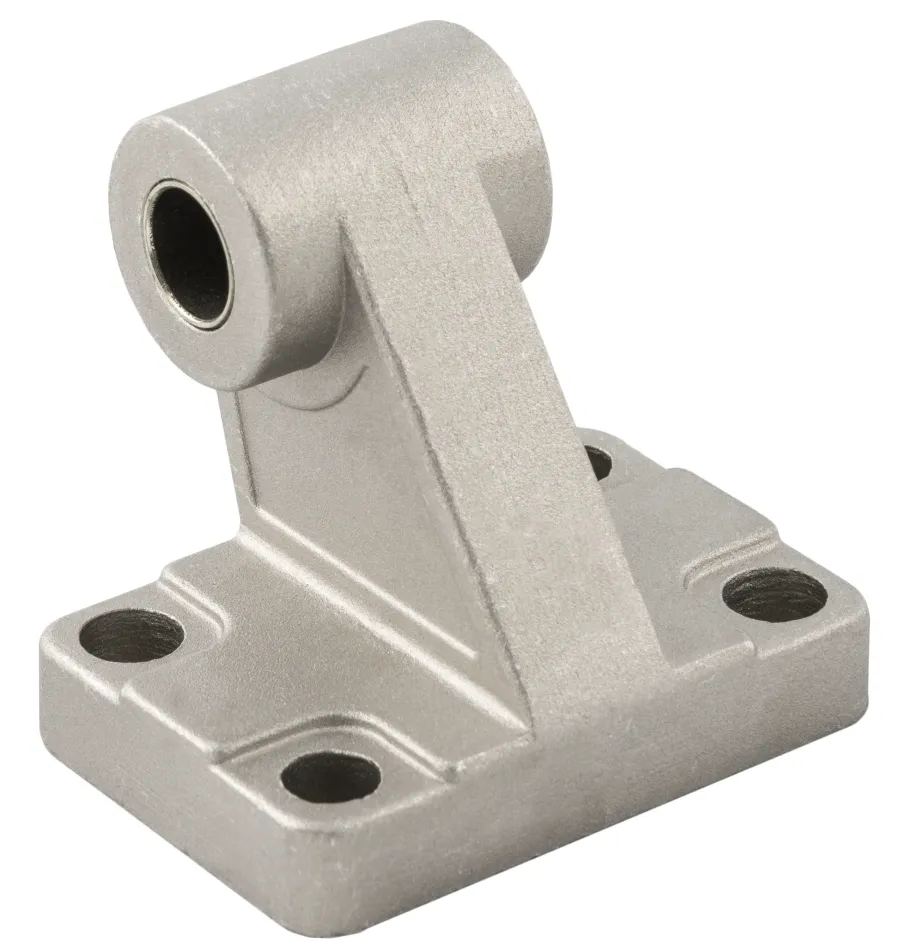

SQUARE JOINT - ALUMINIUM

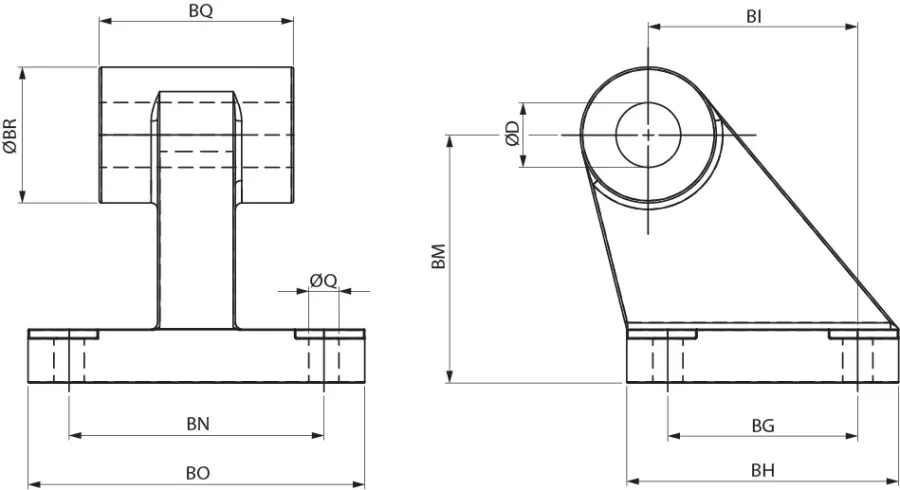

Code	USA Ref	3D Drawings	Ø mm	Q mm	BG mm	BH mm	BI mm	BM mm	BN mm	BO mm	BQ mm	BR mm	ØD mm
VAS 032	VAS032	Request access	32	6,6	18	31	21	32	38	51	26	20	10
VAS 040	VAS040	Request access	40	6,6	22	35	24	36	41	54	28	22	12
VAS 050	VAS050	Request access	50	9	30	45	33	45	50	65	32	26	12
VAS 063	VAS063	Request access	63	9	35	50	37	50	52	67	40	30	16
VAS 080	VAS080	Request access	80	11	40	60	47	63	66	86	50	30	16
VAS 100	VAS100	Request access	100	11	50	70	55	71	76	96	60	38	20
VAS 125	VAS125	Request access	125	14	60	90	70	90	94	124	70	45	25
VAS 160	VAS160	Request access	160	14	88	126	97	115	118	156	90	63	30
VAS 200	VAS200	Request access	200	18	90	130	105	135	122	162	90	63	30
