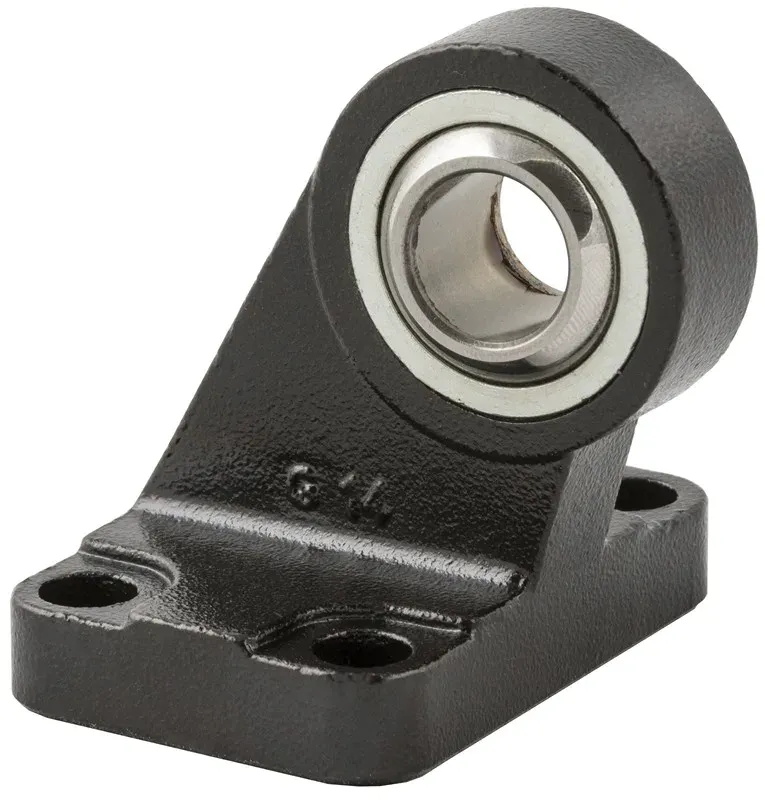

SQUADRE JOINT WITH ARTICULATED HEAD DIN648K - STEEL

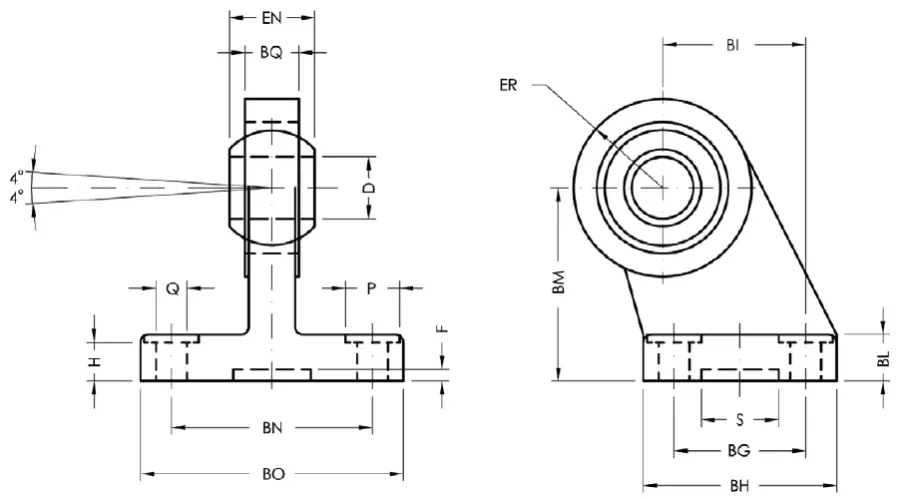

Code	USA Ref	3D Drawings	Ø mm	Q mm	P mm	BG mm	BH mm	BI mm	BL mm	BM mm	BN mm	BO mm	EN mm	ER mm	BQ mm	D mm	H mm	S mm	F mm	*
VADZ 032 NE	VADZ032NE	Request access	32	6,6	11	18	31	21	10	32	38	51	14	15	10,5	10	8,5	20	3	TREATMENT: Black Cataphoresis
VADZ 040 NE	VADZ040NE	Request access	40	6,6	11	22	35	24	10	36	41	54	16	18	12	12	8,5	20	3	TREATMENT: Black Cataphoresis
VADZ 050 NE	VADZ050NE	Request access	50	9	15	30	45	33	12	45	50	65	21	20	15	16	10,5	20	3	TREATMENT: Black Cataphoresis
VADZ 063 NE	VADZ063NE	Request access	63	9	15	35	50	37	12	50	52	67	21	23	15	16	10,5	20	3	TREATMENT: Black Cataphoresis
VADZ 080 NE	VADZ080NE	Request access	80	11	18	40	60	47	14	63	66	86	25	27	18	20	11,5	20	3	TREATMENT: Black Cataphoresis
VADZ 100 NE	VADZ100NE	Request access	100	11	18	50	70	55	15	71	76	96	25	30	18	20	12,5	20	3	TREATMENT: Black Cataphoresis
VADZ 125 NE	VADZ125NE	Request access	125	13,5	20	60	90	70	20	90	94	124	37	40	25	30	17	20	3	TREATMENT: Black Cataphoresis
