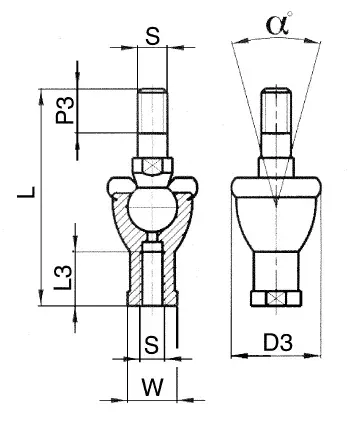

| Code | USA Ref | 3D Drawings | S | L mm | L3 mm | W mm | P3 mm | D3 mm | a° | Radial Load (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TS 020 | TS020 | Request access | M8X1,25 | 65 | 16 | 14 | 12 | 20 | 30° | 3,5 | |
| TS 025 | TS025 | Request access | M10X1,25 | 74,5 | 18 | 17 | 15 | 28 | 30° | 5 | |
| TS 040 | TS040 | Request access | M12X1,25 | 84 | 20 | 19 | 17 | 32 | 30° | 6,7 | |
| TS 050 | TS050 | Request access | M16X1,5 | 112 | 27 | 22 | 23 | 40 | 22° | 7,8 | |
| TS 080 | TS080 | Request access | M20X1,5 | 133 | 38 | 30 | 25 | 45 | 15° | 10 |
