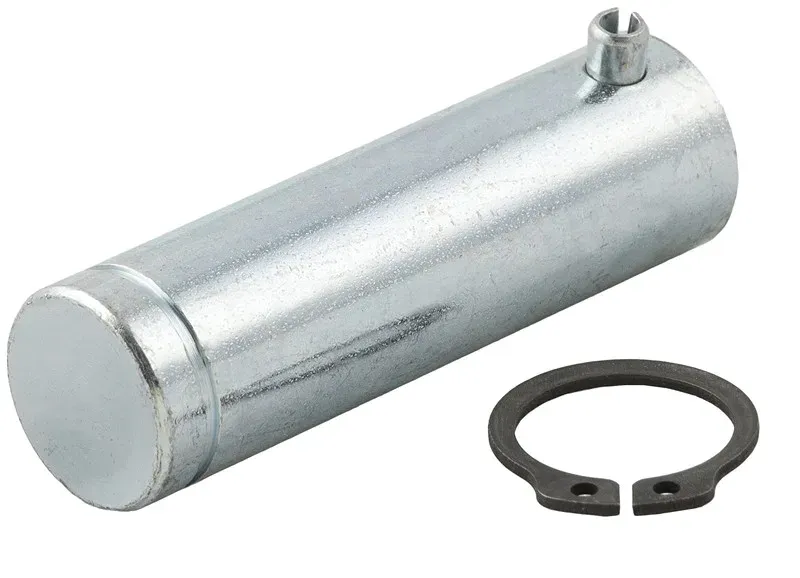

PIN ANTI-ROTATION FOR NARROW FEMALE HINGE VCD - INOX

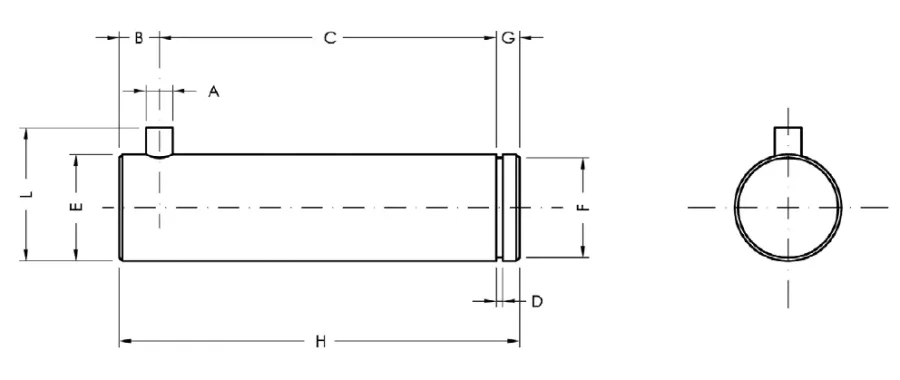

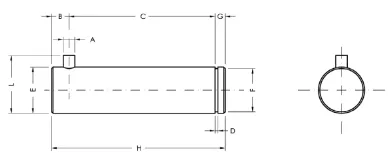

Code	USA Ref	3D Drawings	Ø mm	A mm	C mm	D mm	E mm	F mm	G mm	H mm	L mm	B mm
VPSI 032	VPSI032	Request access	32	3	32,5	1,1	10	9,6	4	41	14	4,5
VPSI 040	VPSI040	Request access	40	4	38	1,1	12	11,5	4	48	16	6
VPSI 050	VPSI050	Request access	50	4	43	1,1	16	15,2	5	54	20	6
VPSI 063	VPSI063	Request access	63	4	49	1,1	16	15,2	5	54	20	6
VPSI 080	VPSI080	Request access	80	4	63	1,3	20	19	6	75	24	6
VPSI 100	VPSI100	Request access	100	4	73	1,3	20	19	6	85	24	6
VPSI 125	VPSI125	Request access	125	6	94	1,6	30	28,6	7	110	36	9
