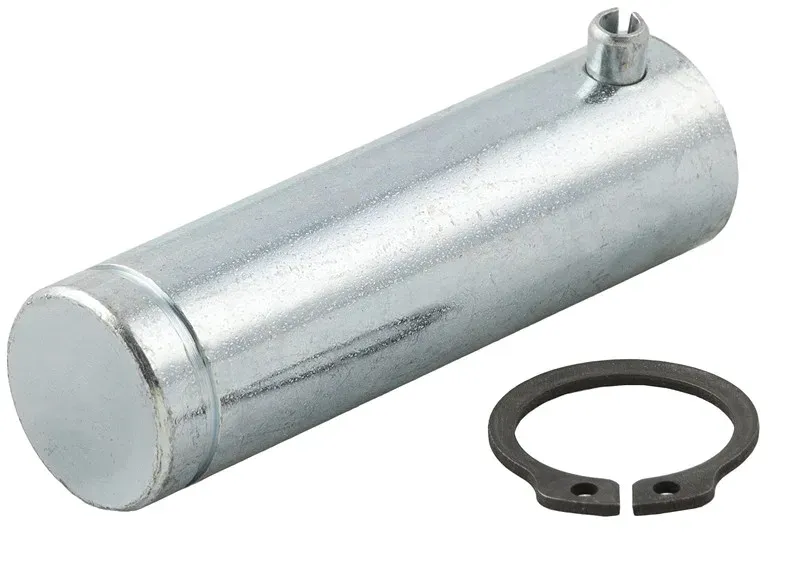

PIN ANTI-ROTATION FOR NARROW FEMALE HINGE VCD - ALUMINIUM

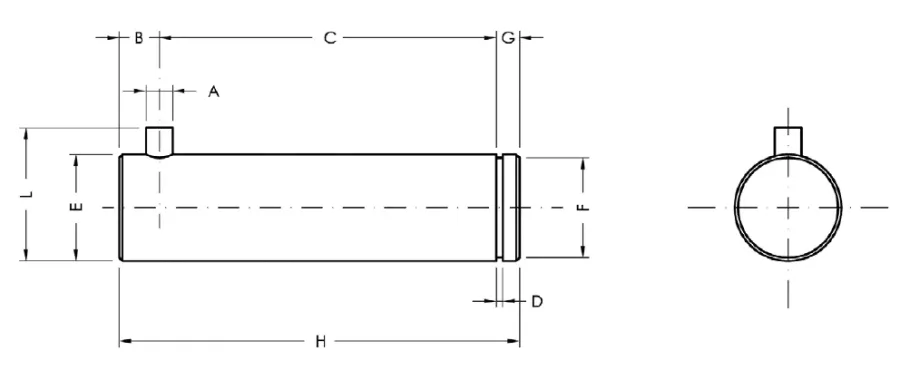

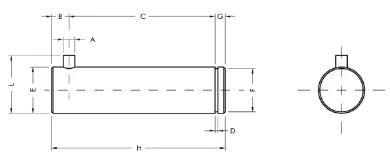

| Code | USA Ref | 3D Drawings | Ø mm | A mm | C mm | D mm | E mm | F mm | G mm | H mm | L mm | B mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VPS 032 | VPS032 | Request access | 32 | 3 | 32,5 | 1,1 | 10 | 9,6 | 4 | 41 | 14 | 4,5 | |
| VPS 040 | VPS040 | Request access | 40 | 4 | 38 | 1,1 | 12 | 11,5 | 4 | 48 | 16 | 6 | |
| VPS 050 | VPS050 | Request access | 50 | 4 | 43 | 1,1 | 16 | 15,2 | 5 | 54 | 20 | 6 | |
| VPS 063 | VPS063 | Request access | 63 | 4 | 49 | 1,1 | 16 | 15,2 | 5 | 54 | 20 | 6 | |
| VPS 080 | VPS080 | Request access | 80 | 4 | 63 | 1,3 | 20 | 19 | 6 | 75 | 24 | 6 | |
| VPS 100 | VPS100 | Request access | 100 | 4 | 73 | 1,3 | 20 | 19 | 6 | 85 | 24 | 6 | |
| VPS 125 | VPS125 | Request access | 125 | 6 | 94 | 1,6 | 30 | 28,6 | 7 | 110 | 36 | 9 | |
| VPS 160 | VPS160 | Request access | 160 - 200 | 6 | 119 | 1,6 | 35 | 33 | 7 | 135 | 41 | 9 |
