NARROW MALE HINGE WITH ARTICULATED HEAD DIN648K - IRON

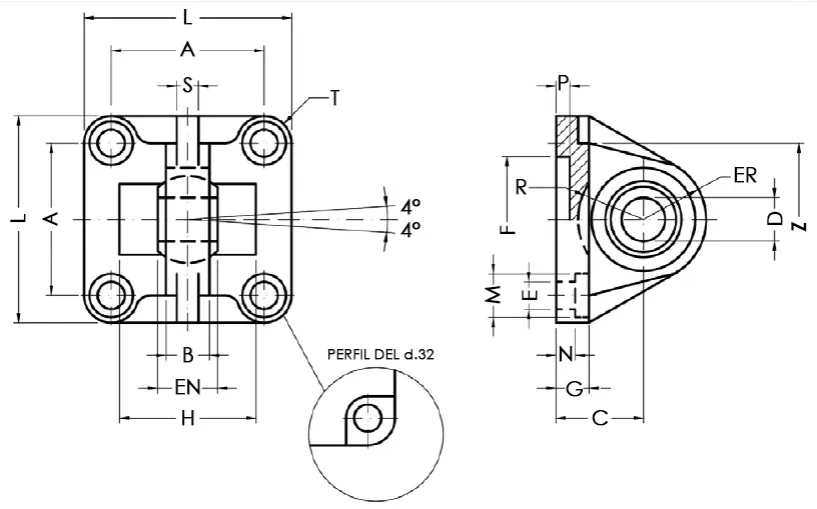

Code	USA Ref	3D Drawings	Ø mm	A mm	B mm	C mm	D mm	EN mm	ER mm	F mm	G mm	E mm	L mm	M mm	N mm	P mm	H mm	R mm	S mm	Z mm	T mm
VCSZ 032 NE	VCSZ032NE	Request access	32	32,5	10,5	22	10	14	16	30	9	6,6	45	11	5,5	5	-	-	4	32,5	6,25
VCSZ 040 NE	VCSZ040NE	Request access	40	38	12	25	12	16	19	35	9	6,6	52	11	5,5	5	-	-	6	39	7
VCSZ 050 NE	VCSZ050NE	Request access	50	46,5	15	27	16	21	21	40	11	9	65	15	6,5	5	51	18	8	47	9,25
VCSZ 063 NE	VCSZ063NE	Request access	63	56,5	15	32	16	21	24	45	11	9	75	15	6,5	5	-	-	8	52	9,25
VCSZ 080 NE	VCSZ080NE	Request access	80	72	18	36	20	25	28.5	45	14	11	95	18	10	5	72	24	10	67	11,5
VCSZ 100 NE	VCSZ100NE	Request access	100	89	18	41	20	25	30	55	14	11	115	18	10	8	-	-	10	77	13
VCSZ 125 NE	VCSZ125NE	Request access	125	110	25	50	30	37	40	60	20	13,5	140	20	10	7	-	-	13	98	15
