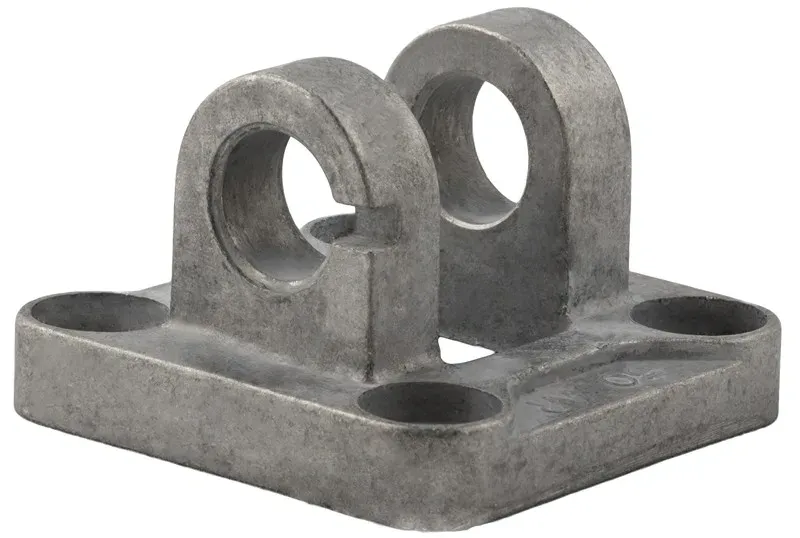

NARROW FEMALE HINGE FOR SQUARE JOINT WITH ARTICULATED HEAD DIN648K - ALUMINIUM

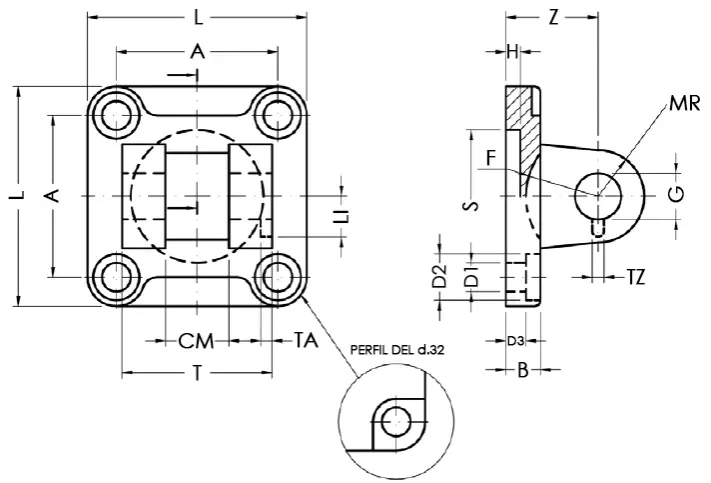

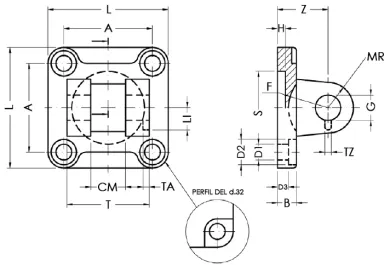

Code	USA Ref	3D Drawings	Ø mm	L mm	T mm	CM mm	A mm	Z mm	H mm	B mm	D3 mm	S mm	G mm	MR mm	D1 mm	D2 mm	TA mm	TZ mm	LI mm	F mm
VCD 032	VCD032	Request access	32	45	34	14	32,5	22	5	9	5,5	30	10	10	6,6	11	3	3,3	11,5	17
VCD 040	VCD040	Request access	40	52	40	16	38	25	5	9	5,5	35	12	12	6,6	11	4	4,3	12	20
VCD 050	VCD050	Request access	50	65	45	21	46,5	27	5	11	6,5	40	16	14	9	15	4	4,3	14	22
VCD 063	VCD063	Request access	63	75	51	21	56,5	32	5	11	6,5	45	16	18	9	15	4	4,3	14	25
VCD 080	VCD080	Request access	80	95	65	25	72	36	5	14	10	45	20	20	11	18	4	4,3	16	30
VCD 100	VCD100	Request access	100	115	75	25	89	41	5	14	10	55	20	22	11	18	4	6,3	16	32
VCD 125	VCD125	Request access	125	140	97	37	110	50	7	20	10	60	30	25	14	20	6	6,3	24	42
VCD 160	VCD160	Request access	160	180	122	43	140	55	7	20	10	65	35	30	18	26	6	6,3	26,5	46
VCD 200	VCD200	Request access	200	220	122	43	175	60	7	25	11	75	35	30	18	26	6	6,3	26,5	49
