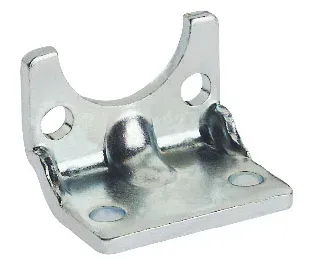

LOW-RISE PEDESTAL - STEEL

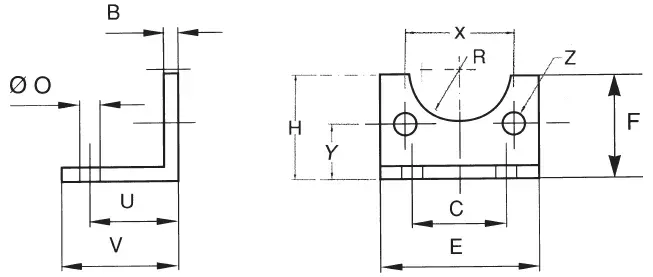

Code	USA Ref	3D Drawings	Ø mm	B mm	C mm	E mm	F mm	O mm	U mm	V mm	R mm	Z mm	X mm	Y mm	H mm
VCP 032	VCP032	Request access	32	4	32	45	30	7	24	35	15	7	32,5	15,75	32
VCP 040	VCP040	Request access	40	4	36	52	30	9	28	36	17,5	7	38	17	36
VCP 050	VCP050	Request access	50	5	45	65	36	9	32	47	20	9	46,5	21,75	45
VCP 063	VCP063	Request access	63	5	50	75	35	9	32	45	22,5	9	56,5	21,75	50
VCP 080	VCP080	Request access	80	6	63	95	47	12	41	55	22,5	11	72	27	63
VCP 100	VCP100	Request access	100	6	75	115	53	14	41	57	27,5	11	89	26,5	71
VCP 125	VCP125	Request access	125	8	90	140	70	16,5	45	70	30	14	110	35	90
VCP 160	VCP160	Request access	160	9	115	180	115	18,5	60	75	32,5	18	140	45	115
VCP 200	VCP200	Request access	200	12	135	220	135	24	70	100	37,5	18	175	47,5	135
VCP 250	VCP250	Request access	250	14	165	270	165	26	75	100	45	22	220	55	165
