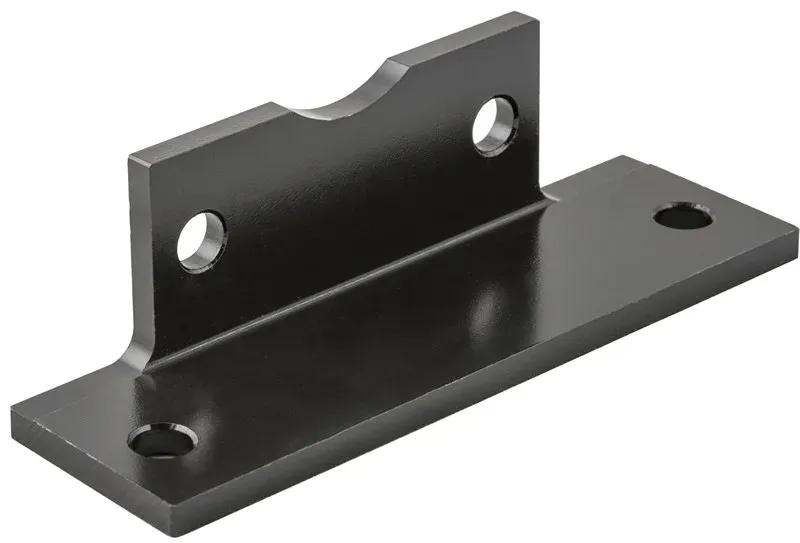

LARGE LOW-RISE PEDESTAL - STEEL

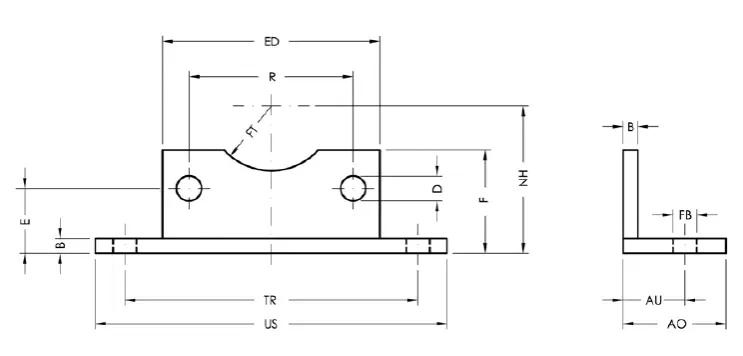

Code	USA Ref	3D Drawings	Ø	US	ED	F	AO	B	TR	E	D	FT	NH	R	AU	FB
VCB 032 NE	VCB032NE	Request access	1.260 (32)	3.110 (79)	1.772 (45)	1.181 (30)	1.181 (30)	0.197 (5)	2.559 (65)	0.620 (15.75)	0.256 (6.5)	0.591 (15)	1.260 (32)	1.280 (32.5)	0.709 (18)	0.256 (6.5)
VCB 040 NE	VCB040NE	Request access	1.575 (40)	3.543 (90)	2.165 (55)	1.181 (30)	1.181 (30)	0.197 (5)	2.953 (75)	0.669 (17)	0.256 (6.5)	0.689 (17.5)	1.417 (36)	1.496 (38)	0.709 (18)	0.256 (6.5)
VCB 050 NE	VCB050NE	Request access	1.969 (50)	4.331 (110)	2.559 (65)	1.378 (35)	1.378 (35)	0.197 (5)	3.543 (90)	0.856 (21.75)	0.335 (8.5)	0.787 (20)	1.772 (45)	1.832 (46.5)	0.827 (21)	0.335 (8.5)
VCB 063 NE	VCB063NE	Request access	2.480 (63)	4.724 (120)	2.953 (75)	1.378 (35)	1.378 (35)	0.197 (5)	3.937 (100)	0.856 (21.75)	0.335 (8.5)	0.886 (22.5)	1.969 (50)	2.224 (56.5)	0.827 (21)	0.335 (8.5)
VCB 080 NE	VCB080NE	Request access	3.150 (80)	6.024 (153)	3.740 (95)	1.772 (45)	1.772 (45)	0.236 (6)	5.039 (128)	1.063 (27)	0.413 (10.5)	0.886 (22.5)	2.480 (63)	2.835 (72)	1.063 (27)	0.413 (10.5)
VCB 100 NE	VCB100NE	Request access	3.937 (100)	7.008 (178)	4.528 (115)	1.772 (45)	1.772 (45)	0.236 (6)	5.827 (148)	1.043 (26.5)	0.413 (10.5)	1.083 (27.5)	2.795 (71)	3.504 (89)	1.063 (27)	0.413 (10.5)
