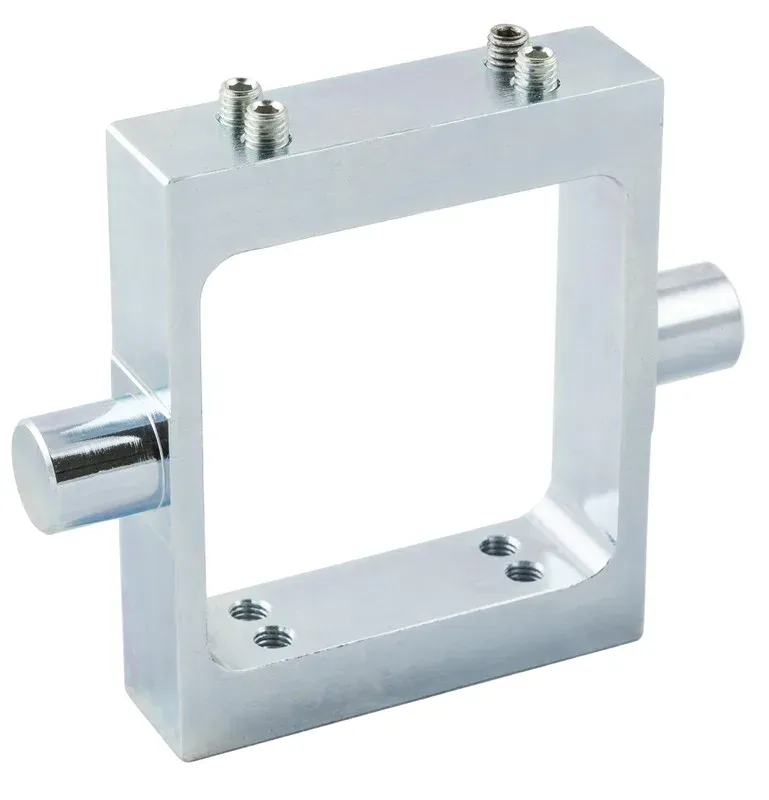

INTERMEDIATE HINGE - STEEL

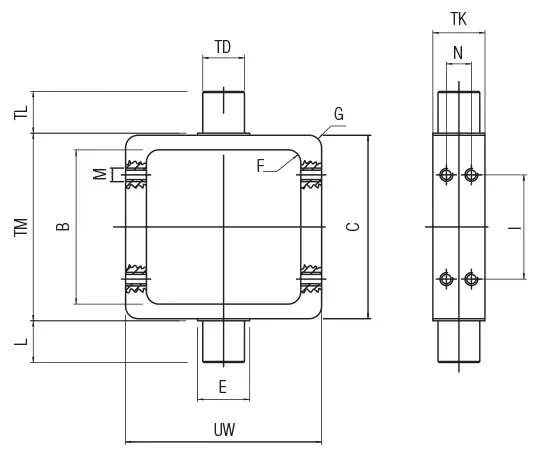

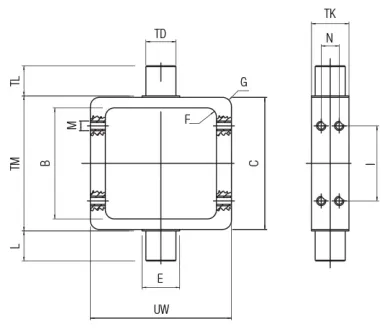

Code	USA Ref	3D Drawings	Ø mm	UW mm	B mm	C mm	TD mm	E mm	F mm	G mm	TK mm	I mm	TL mm	M	N mm	TM mm
XCN 032	XCN032	Request access	32	65	46	50	12	-	5	4	20	28	12	M5	7	50
XCN 040	XCN040	Request access	40	75	54.5	62	16	20	5	5	20	32	16	M5	8	63
XCN 050	XCN050	Request access	50	90	64.5	74	16	20	6	6	20	40	16	M6	8	75
XCN 063	XCN063	Request access	63	100	74.5	88	20	25	6	6	25	50	20	M6	12	90
XCN 080	XCN080	Request access	80	130	94.5	109	20	25	7	7	25	64	20	M8	12	110
XCN 100	XCN100	Request access	100	140	111.5	130	25	30	8	8	30	80	25	M8	15	132
XCN 125	XCN125	Request access	125	150	135.5	155	25	30	8	8	30	100	25	M10	15	160
