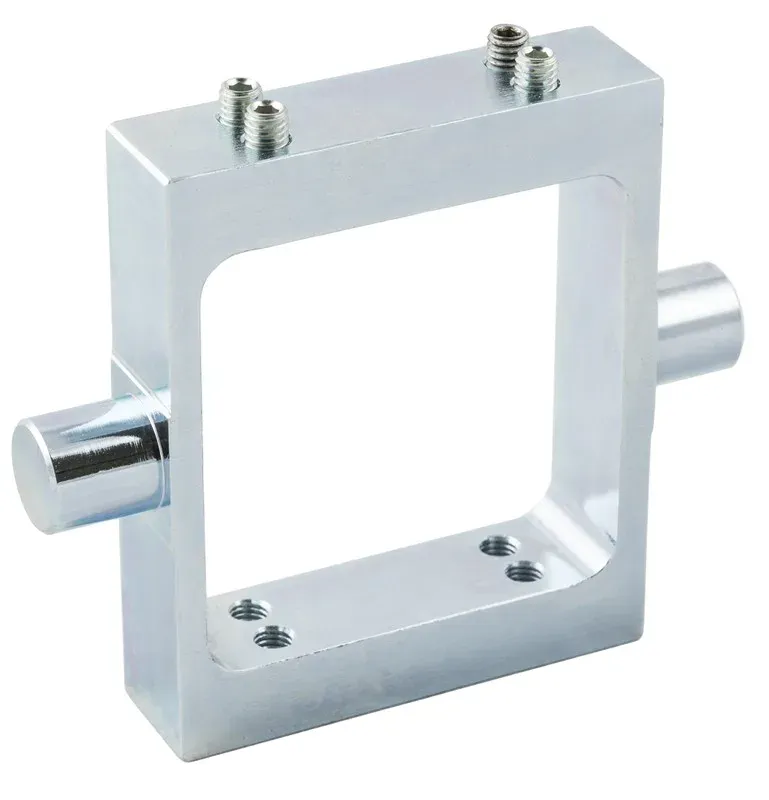

INTERMEDIATE HINGE - STEEL

* For assembly it is necessary to remove the cylinder head.

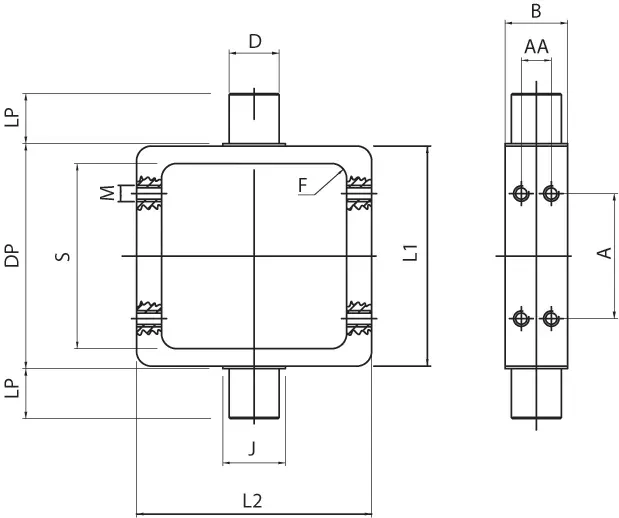

Code	USA Ref	3D Drawings	Ø mm	L2 mm	S mm	L1 mm	D mm	J mm	F mm	B mm	A mm	LP mm	M mm	AA mm	DP mm
LCN 032	LCN032	Request access	32	65	46	-	12	-	5	20	32,5	12	M5	7	50
LCN 040	LCN040	Request access	40	75	54.5	62	16	20	4	20	38	16	M5	8	63
LCN 050	LCN050	Request access	50	90	64,5	74	16	20	6	20	46,5	16	M6	8	75
LCN 063	LCN063	Request access	63	100	74,5	88	20	25	6	25	56,5	20	M6	12	90
LCN 080	LCN080	Request access	80	130	94,5	109	20	25	7	25	72	20	M8	12	110
LCN 100	LCN100	Request access	100	140	111,5	130	25	30	8	30	80	25	M8	15	132
LCN 125	LCN125	Request access	125	150	135,3	155	25	30	8	30	110	25	M10	15	160
