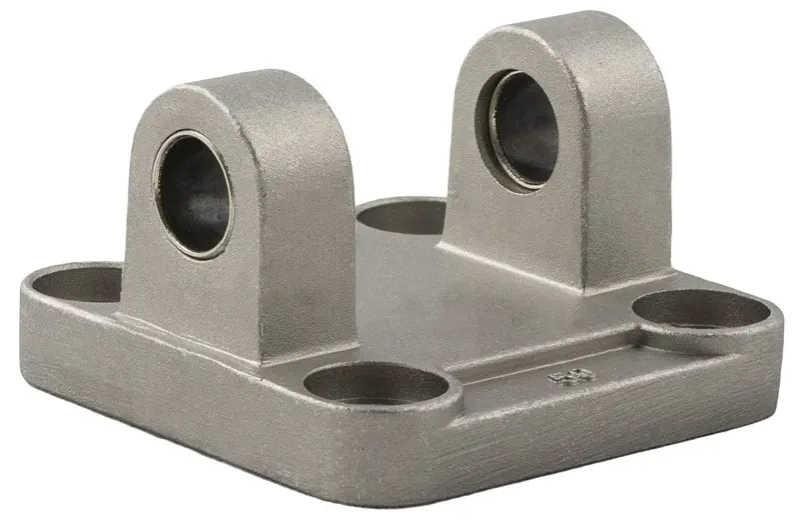

FEMALE HINGE WITH SELF-LUBRICATING BUSHES - ALUMINIUM

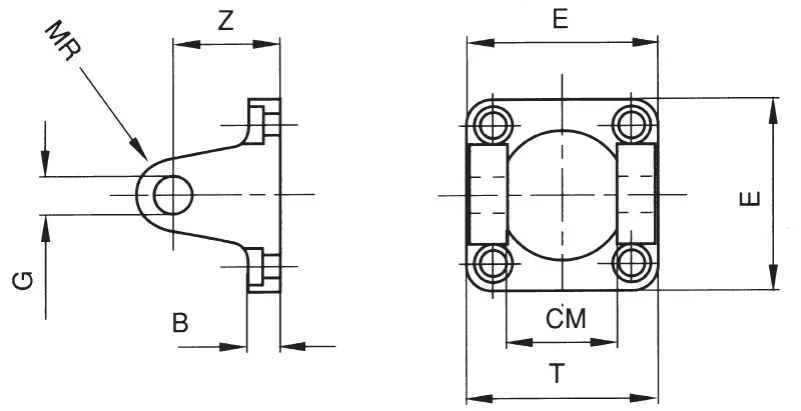

Code	USA Ref	3D Drawings	Ø mm	B mm	E mm	G mm	T mm	Z mm	CM mm	MR mm
VCF 032	VCF032	Request access	32	9	45	10	45	22	26	10
VCF 040	VCF040	Request access	40	9	52	12	52	25	28	12
VCF 050	VCF050	Request access	50	11	65	12	60	27	32	12
VCF 063	VCF063	Request access	63	11	75	16	70	32	40	16
VCF 080	VCF080	Request access	80	14	95	16	90	36	50	16
VCF 100	VCF100	Request access	100	14	115	20	110	41	60	20
VCF 125	VCF125	Request access	125	20	140	25	130	50	70	25
VCF 160	VCF160	Request access	160	20	180	30	170	55	90	25
VCF 200	VCF200	Request access	200	25	220	30	170	60	90	25
