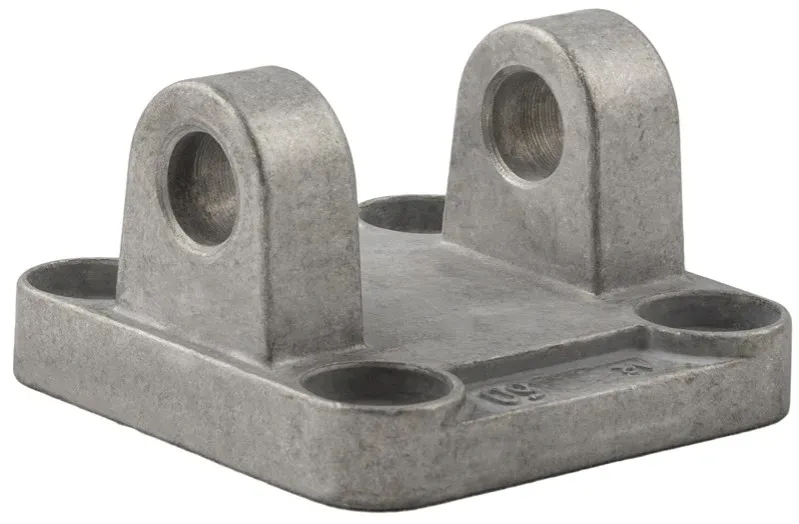

FEMALE CLEVIS BRACKET - ALUMINIUM

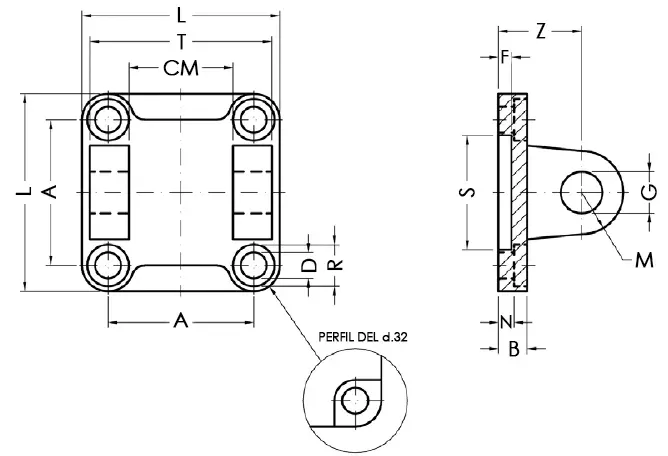

Code	USA Ref	3D Drawings	Ø mm	A mm	L mm	D mm	R mm	N mm	B mm	S mm	F mm	Z mm	G mm	M mm	CM mm	T mm
VCH 032	VCH032	Request access	32	32,5	45	6,6	11	5,5	9	30	5	22	10	10	26	45
VCH 040	VCH040	Request access	40	38	52	6,6	11	5,5	9	35	5	25	12	12	28	52
VCH 050	VCH050	Request access	50	46,5	65	9	15	6,5	11	40	5	27	12	12	32	60
VCH 063	VCH063	Request access	63	56,5	75	9	15	6,5	11	45	5	32	16	16	40	70
VCH 080	VCH080	Request access	80	72	95	11	18	10	14	45	5	36	16	16	50	90
VCH 100	VCH100	Request access	100	89	115	11	18	10	14	55	5	41	20	20	60	110
VCH 125	VCH125	Request access	125	110	140	14	20	10	20	60	7	50	25	25	70	130
VCH 160	VCH160	Request access	160	140	180	18	26	10	20	65	7	55	30	25	90	170
VCH 200	VCH200	Request access	200	175	220	18	26	11	25	75	7	60	30	25	90	170
VCH 250	VCH250	Request access	250	220	270	22	33	11	25	90	-	70	40	40	110	200
