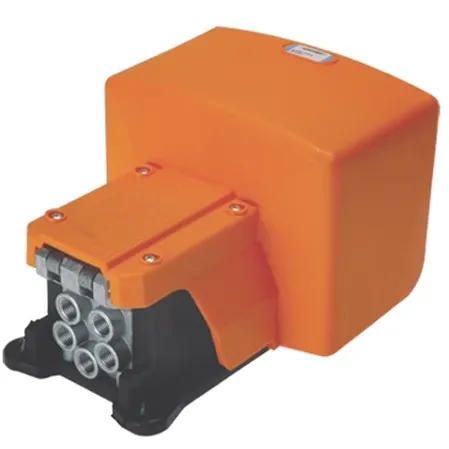

PNEUMATIC FOOT VALVE WITH PROTECTION

Code	USA Ref	3D Drawings	Pedal	Way	Function	Size	Return	Force N	Weight lb (Kg)

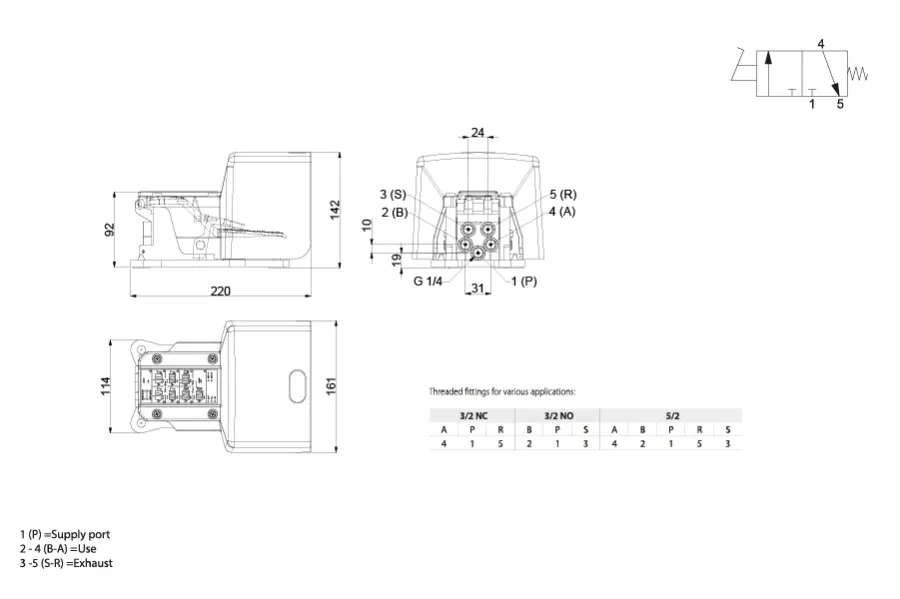

UAM 5000	UAM5000	Request access	Spring Return	3/2	NC	G 1/4	mechanical spring	20	2.76 (1.25)
UAM 5001	UAM5001	Request access	Spring Return	5/2		G 1/4	mechanical spring	20	3.20 (1.45)

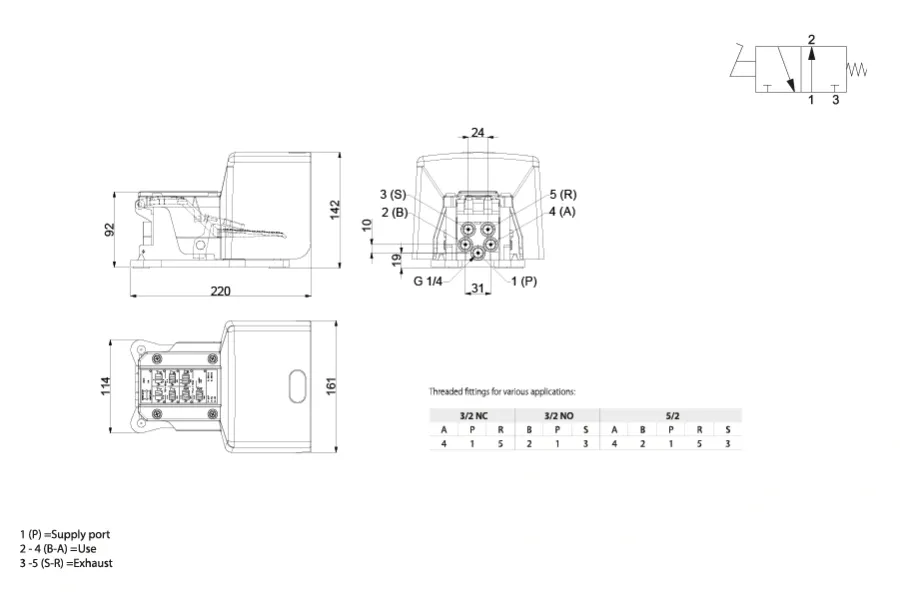

UAM 5002	UAM5002	Request access	Spring Return	3/2	NO	G 1/4	mechanical spring	20	2.76 (1.25)
UAM 5003	UAM5003	Request access	Bistable	3/2	NC	G 1/4	pedal	20	3.02 (1.37)

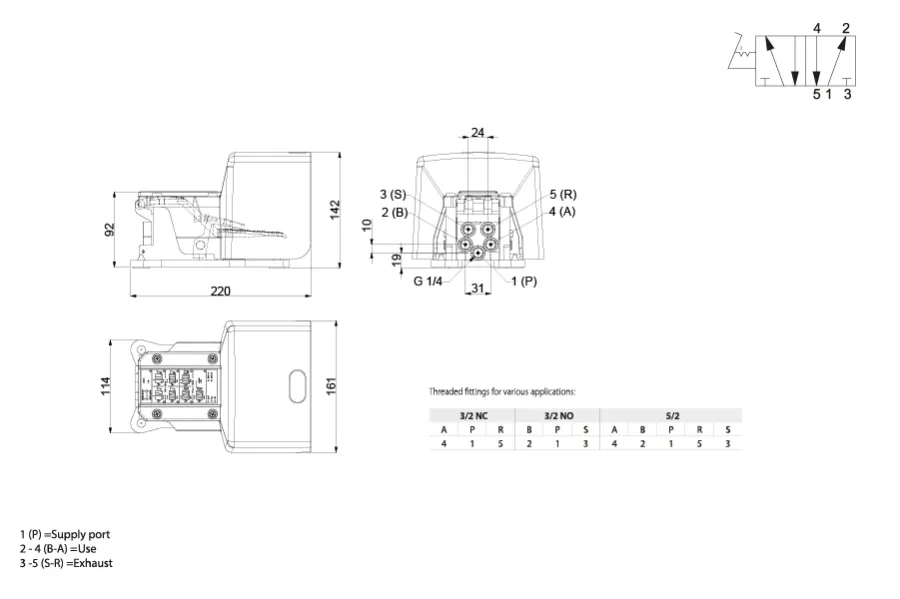

UAM 5004	UAM5004	Request access	Bistable	5/2		G 1/4	pedal	20	3.35 (1.52)

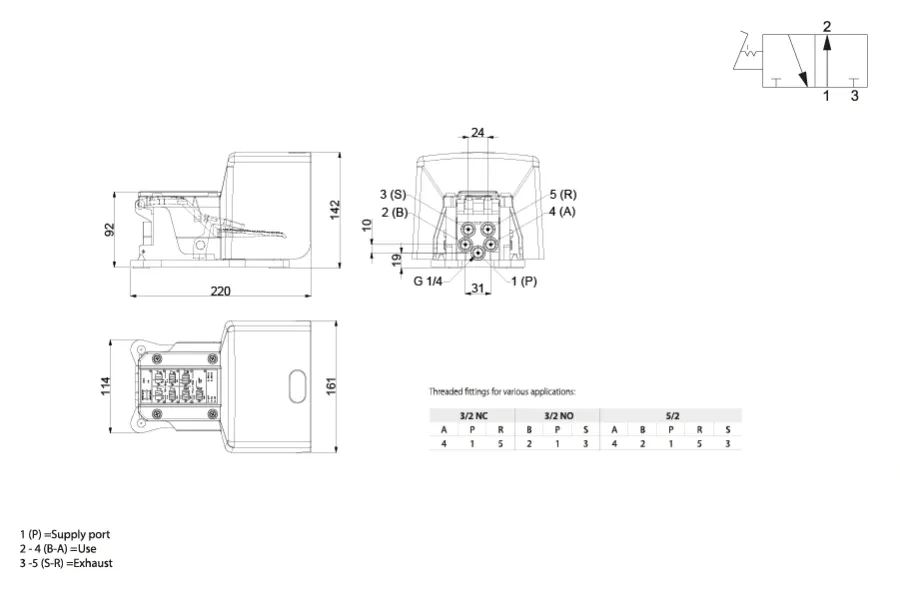

UAM 5005	UAM5005	Request access	Bistable	3/2	NO	G 1/4	pedal	20	3.02 (1.37)

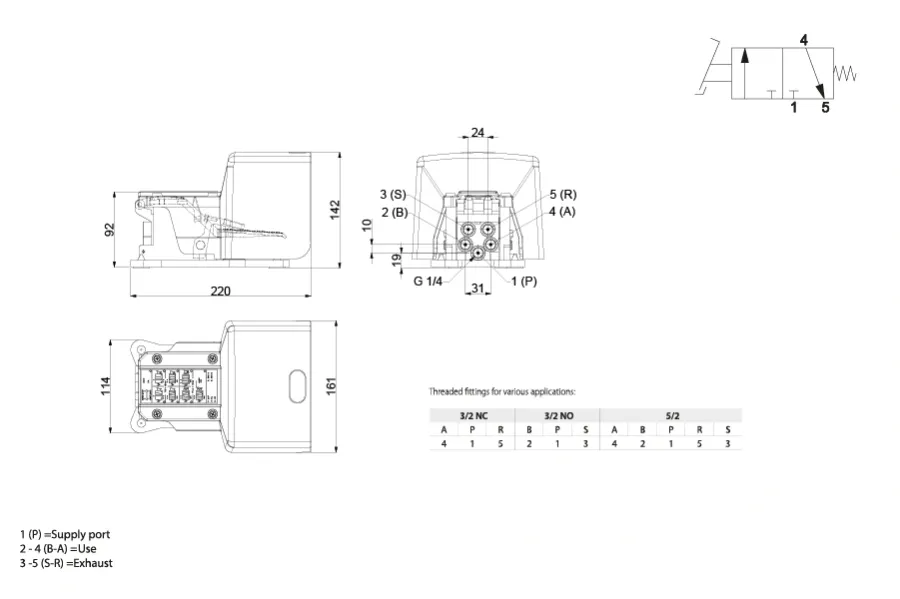

UAM 5011	UAM5011	Request access	With Safety Control	5/2		G 1/4	mechanical spring	20	3.20 (1.45)
UAM 5012	UAM5012	Request access	With Safety Control	3/2	NO	G 1/4	mechanical spring	20	2.76 (1.25)

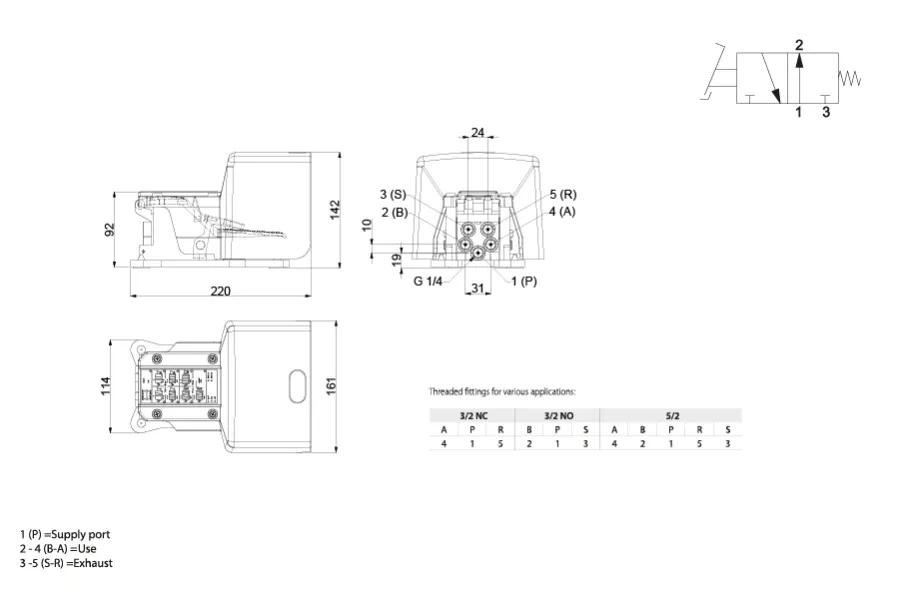

UAM 5015	UAM5015	Request access	With Safety Control	3/2	NC	G 1/4	mechanical spring	20	2.76 (1.25)
UAM 5021	UAM5021	Request access	External Operation - Spring Return	5/2		G 1/4	mechanical spring	20	3.20 (1.45)

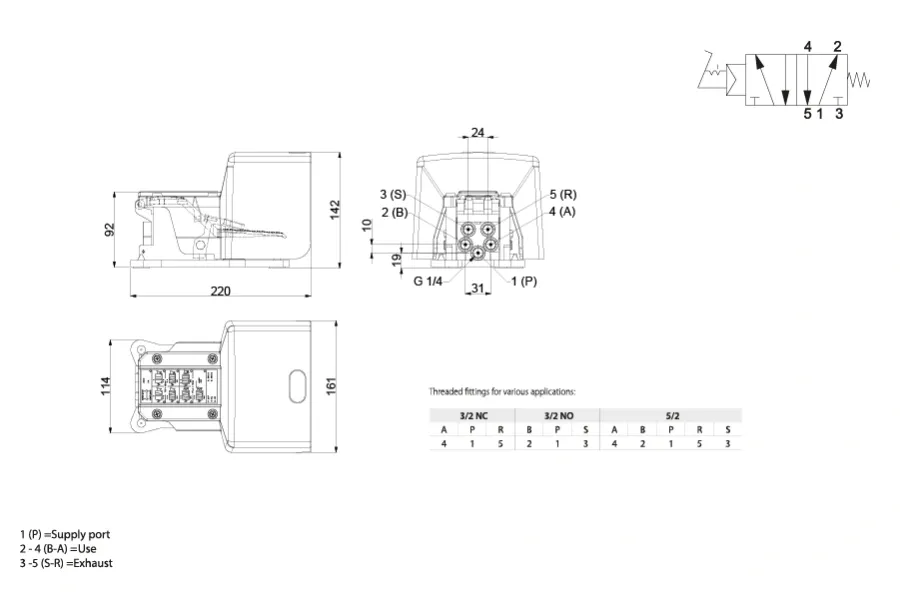

UAM 5031	UAM5031	Request access	External Operation - Bistable	5/2		G 1/4	mechanical spring	20	3.20 (1.45)
UAM 5041	UAM5041	Request access	External Operation with Safety Control	5/2		G 1/4	mechanical spring	20	3.20 (1.45)
